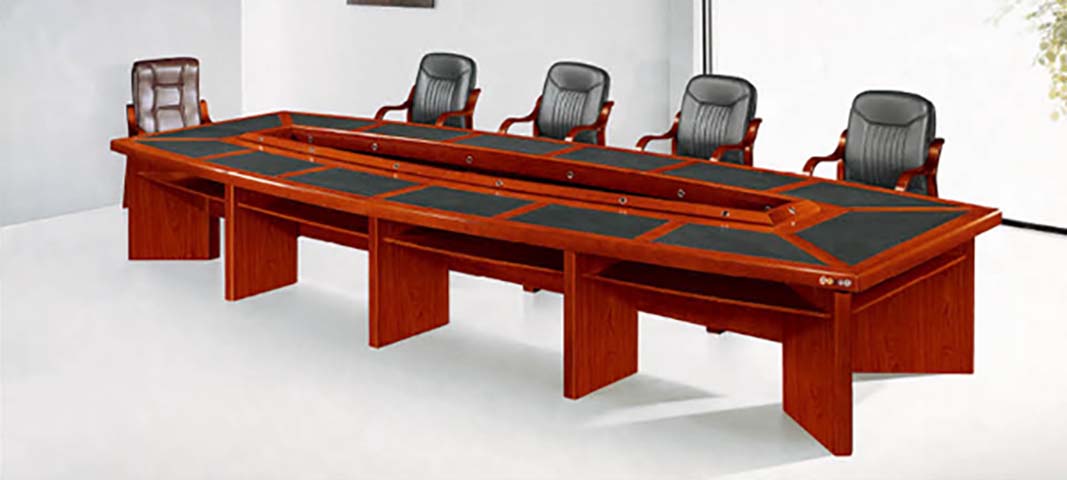

Large Boat-Shaped Cherry Veneer Boardroom Conference Table with Central Cable Trough and Inset Writing Pads Specifications

BT-CONF-4800-CHERRY

代码:E2KX81V1
获取供应商报价
2026-08-20 16:29人气: 28
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

BT-CONF-4800-CHERRY

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

overall dimensions4800 x 1800 x 760 mm
tabletop thickness43 mm
central cable trough width200 mm
seated knee clearance height680 mm
seated knee clearance depth per side450 mm
inset writing pad size per position600 x 400 mm
panel leg section width300 mm
panel leg thickness50 mm
modesty panel height350 mm
table edge radius30 mm
Finished Top Thickness45 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

maximum seating capacity14 people
distributed tabletop static load450 kg
net product weight220 kg
surface scratch resistance rating2000 cycles
structural warranty period10 years
finish moisture content10%
cable trough maximum cable capacity24 AV/power cables
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

tabletop coreHigh-density MDF substrate
tabletop surfaceCherry red wood veneer with high-gloss PU polish
inset writing padsBlack matte leather-laminate composite
support legsSolid hardwood panel construction
central cable troughPowder-coated cold-rolled steel channel
modesty panel18mm thick veneered MDF panel
connecting hardwareZinc-plated steel cam locks and dowels
edge trimSolid wood matching veneer edge banding
finish coatingScratch-resistant polyurethane clear coat
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

central cable managementFull-length lidded steel trough with removable access ports
modesty panel coverageFull-length continuous panel blocks leg visibility across sides
segmented writing surfacesPerimeter inset pads provide non-slip writing space for every seat
panel leg support structureEvenly spaced dual-side panel legs eliminate cross-brace obstructions
knockdown assembly designSectional tabletop and leg components connect via integrated hardware
rounded edge designBeveled perimeter edges reduce impact injury risk
cable port accessLocking port covers at regular intervals allow cable exit to table surface
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

shipping carton dimensions2500 x 700 x 300 mm (largest carton)
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 1100× 300 mm
Reference Packaged Gross Weight90 kg/set in 2 cartons
Reference Packaging Volume0.55 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

corporate boardroomsFormal executive meeting space for 14person leadership meetings
government meeting roomsFormal red wood finish suitable for official conference spaces
large enterprise training roomsIntegrated cable management supports hybrid AV-enabled training sessions
executive committee meeting spacesPremium solid wood finish projects professional formal impression
hotel conference centersDurable commercial construction supports frequent guest meeting use
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-3:2003Office desks and tables, test methods for structural stability and durability
EN 13722:2004Furniture, strength and durability requirements for non-domestic seating and tables
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

North America procurement and testing referenceRecommended references: ANSI/BIFMA X5.5
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable for structural quality acceptance
GB 18580-2017Formaldehyde emission limits for wood-based panels, requires E1 grade for indoor office use
GB/T 4897.3-2003Particleboard/MDF performance requirements for furniture structural use
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for structural quality acceptance;
2. GB 18580-2017:Formaldehyde emission limits for wood-based panels, requires E1 grade for indoor office use;
3. GB/T 4897.3-2003:Particleboard/MDF performance requirements for furniture structural use;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · BT-CONF-4800-CHERRY

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · BT-CONF-4800-CHERRY

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · BT-CONF-4800-CHERRY打开导出工具

页面快速操作

发布采购询价

产品描述

The unbranded BT-CONF-4800-CHERRY is a large, formal traditional boat-shaped boardroom conference table designed for high-capacity professional meeting environments. Its distinctive elongated boat-shaped tabletop features gently tapered, rounded beveled edges that reduce impact injury risk, finished in a rich cherry red wood veneer with high-gloss, scratch-resistant polyurethane clear coat matched by solid wood edge banding for a seamless, polished look. Evenly spaced dual-side solid hardwood panel legs support the structure without obstructive cross-braces, paired with a full-length continuous veneered MDF modesty panel that blocks cross-table leg visibility for a neat, uncluttered visual profile. The table measures 4800 x 1800 x 760 mm overall, with a 43 mm thick high-density MDF substrate core, delivering a 450 kg distributed static load capacity and 680 mm of seated knee clearance height, plus 450 mm of knee clearance depth per side to accommodate comfortable seating for up to 14 people. Each seat position includes a 600 x 400 mm black matte leather-laminate composite inset writing pad that provides a stable, non-slip writing surface. A 200 mm wide full-length lidded powder-coated cold-rolled steel central cable trough runs the length of the table, holding up to 24 AV or power cables, with regularly spaced locking port covers that allow clean cable routing to the table surface to support connected meeting setups. The knockdown assembly design uses zinc-plated steel cam locks and dowels to connect sectional tabletop and leg components, with a reference assembly time of 40 minutes per set. The table is ideally suited for corporate executive boardrooms hosting leadership meetings, government official conference rooms, large enterprise hybrid training rooms requiring integrated AV support, executive committee spaces, and hotel conference centers serving frequent guest events, as its durable commercial-grade construction supports regular high-traffic use, backed by a 10-year structural warranty. Procurement teams should note the product ships in two cartons, with a total packaged gross weight of 90 kg per set, and plan for appropriate delivery and on-site assembly coordination to support installation in target spaces. The finish has a 10% moisture content, and the surface carries a 2000-cycle scratch resistance rating to maintain its polished appearance through regular meeting use.
