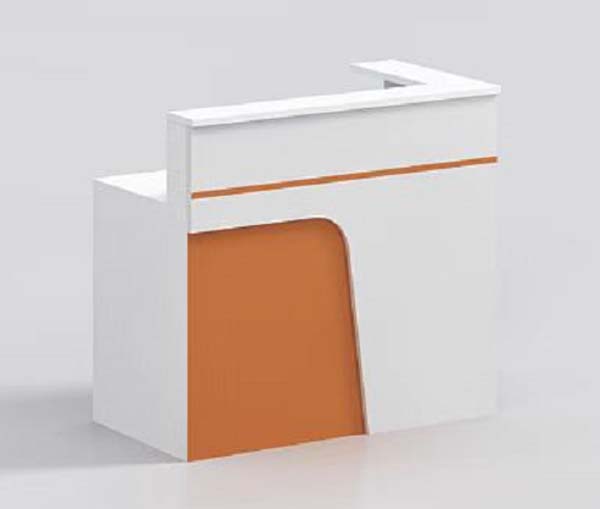

Modern L-Shaped Two-Tone Commercial Reception Cashier Desk Specifications

RCV-L1800-WO

代码:6UZEWXV1
获取供应商报价
2026-09-02 14:54人气: 18
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

RCV-L1800-WO

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions1800 x 600 x 1050 mm
Side return length1200 mm
Staff work surface height750 mm
Front transaction counter overhang height1050 mm
Knee well clearance height650 mm
Knee well opening width700 mm
Work surface panel thickness25 mm
Front modesty panel thickness18 mm
Edge banding thickness2 mm
Side storage pedestal width450 mm
Side storage pedestal depth600 mm
Cable grommet diameter60 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Unit net weight90 kg
Work surface static load capacity150 kg
Drawer slide dynamic load rating25 kg
Drawer slide cycle rating50000 cycles
Cabinet hinge cycle rating80000 cycles
Surface abrasion resistance2000 cycles
Recommended user capacity1 seated reception staff
Product warranty period3 years
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Main structural panels18mm high-density MDF board
Work surface panel25mm high-density MDF with smooth matte white paint finish
Accent panels18mm MDF with matte orange paint finish, curved edge profile
Edge sealing2mm thick PVC edge banding on all exposed panel edges
Storage drawer interiors15mm MDF with melamine finish, easy to clean
Leveling foot pads10mm diameter non-slip nylon adjustable feet
Hardware fastenersZinc-plated steel cam lock and confirmat screw assembly
Cable grommetsABS plastic wire management grommets at work surface corners
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
Primary Connector SpecificationReference M6-M8 with at least 2 fixing points per main support
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Elevated front transaction counterProvides 300mm height difference between staff work surface and customer counter, supporting document exchange
Recessed staff knee wellOffers unobstructed 650mm leg clearance for seated staff, no cross-braces blocking leg movement
Integrated side storage pedestalIncludes 1 lockable drawer and 1 closed cabinet compartment for office supplies and transaction materials
Cable management access60mm diameter grommets route power and data cables from work surface to floor, reducing desk clutter
Adjustable leveling feet15mm vertical adjustment range compensates for uneven floors, keeping desk stable and level
Left/right corner orientationAvailable in mirrored corner configuration to fit different room entry layouts
Smooth paint surfaceStain-resistant and easy to wipe clean, suitable for high-traffic public reception areas
Knockdown assemblyFlat-packed for transport, assembled with included hardware without specialized on-site tools
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Small retail store cashier stationCompact footprint fits boutique, apparel or convenience store entry points, with transaction counter for customer checkout
Small office reception areaWelcoming two-tone design fits startup or small business lobbies, supporting visitor check-in and guest greeting
Beauty salon or studio front deskSmooth easy-clean surface and storage accommodate appointment scheduling, product display and payment processing
Educational institution service counterDurable panel construction supports high-traffic student or visitor inquiry points with stable work surface
Single-staff workstation configuration1800mm width provides sufficient space for one staff member, computer, POS terminal and office supplies
Corner placement installationL-shaped design fits 90-degree room corners, optimizing floor space utilization in compact entry areas
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-2:2002+A1:2019Office work tables safety and strength requirements, applicable to staff work surface performance
EN 12521:2015Furniture strength, durability and safety for commercial non-domestic tables
EN 312:2010Particleboard specifications for structural wood-based panel furniture construction
EN 717-1:2004Formaldehyde emission testing for wood-based panels used in indoor furniture
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products standard for safety, durability and structural performance of office tables
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to panel reception desk structural safety and dimensional tolerances
GB/T 4897.3-2015Particleboard for furniture use, applicable to structural panel material performance requirements
GB 18580-2017Formaldehyde emission limits for wood-based panels, mandatory requirement for indoor commercial furniture
GB/T 10357.1-2013Furniture mechanical performance test for tables, applicable to desk surface and structure load testing
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to panel reception desk structural safety and dimensional tolerances;
2. GB/T 4897.3-2015:Particleboard for furniture use, applicable to structural panel material performance requirements;
3. GB 18580-2017:Formaldehyde emission limits for wood-based panels, mandatory requirement for indoor commercial furniture;
4. GB/T 10357.1-2013:Furniture mechanical performance test for tables, applicable to desk surface and structure load testing;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · RCV-L1800-WO

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · RCV-L1800-WO

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · RCV-L1800-WO打开导出工具

页面快速操作

发布采购询价

产品描述

The Modern L-Shaped Two-Tone Commercial Reception Cashier Desk, model RCV-L1800-WO, features a streamlined minimalist silhouette defined by its L-shaped corner configuration, with a crisp two-tone finish pairing matte white work surfaces with matte orange accent panels that have softly curved edge profiles. Its layout integrates an elevated front transaction counter set above a lower staff work surface, positioned to fit flush against 90-degree room corners to maximize usable floor space in tight entry zones. Constructed primarily from high-density MDF panels, the desk uses a 25mm thick work surface (with a 40mm composite build-up for the load-bearing top section) finished in smooth, stain-resistant matte white paint, 18mm thick structural and orange accent panels, and 2mm PVC edge banding on all exposed edges to resist impact damage. Storage drawer interiors are lined with easy-to-clean melamine-finished 15mm MDF, while all fasteners are zinc-plated steel for durable joint integrity. Non-slip nylon adjustable leveling feet compensate for uneven flooring, and ABS plastic cable grommets are set into work surface corners to organize power and data lines. All tested hardware delivers long-term functional stability for regular daily use. Practical design features support smooth front-of-house operations: the elevated transaction counter creates a clear height difference between staff and customer zones for easy document and payment exchange, while the recessed, cross-brace-free knee well offers unobstructed legroom for seated staff. An integrated side storage pedestal includes one lockable drawer and one closed cabinet compartment to stow office supplies, transaction materials and personal items. The smooth paint finish wipes clean quickly to maintain a polished appearance in high-traffic settings, and the desk is available in mirrored corner orientations to align with varied room entry layouts. It is sized to accommodate one seated staff member, with ample surface space for a computer, POS terminal and essential work supplies. This desk suits a range of light commercial and public-facing spaces, including small boutique, apparel and convenience store cashier stations, startup and small business office reception lobbies, beauty salon and creative studio front desks, and educational institution service counters for student or visitor inquiries. It is particularly well-suited for compact entry areas where corner placement optimizes limited floor space. For procurement, note that each unit ships across multiple cartons, with a stated reference assembly time of 40 minutes per set. Buyers should confirm required corner orientation prior to ordering to match existing space layouts, and account for the unit’s net weight when planning installation and placement to ensure appropriate floor support.
