Matte White Asymmetrical LED-Illuminated Commercial Reception Desk Specifications

RCP-LED-2400-WHT

代码:74GSH4V1
获取供应商报价
2026-09-02 14:31人气: 18
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

RCP-LED-2400-WHT

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions2400 x 800 x 1100 mm
Raised rear work ledge height1100 mm
Front visitor-facing panel height750 mm
Plinth base height100 mm
Capsule LED recessed panel size1800 x 350 mm
Bullnose left end radius300 mm
Work surface depth600 mm
Countertop thickness50 mm
Edge band thickness3 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Countertop static load capacity150 kg
Net unit weight120 kg
Recommended staff capacity2 people
LED strip operational lifespan50000 hours
Surface impact resistance60 N
Storage drawer slide load rating (optional)25 kg
Drawer slide cycle rating (optional)50000 cycles
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Exterior cladding12mm matte white solid surface (acrylic resin composite)
Internal structural substrate18mm birch plywood frame
Front accent lighting24V dimmable LED strip with frosted diffuser
Plinth basePowder-coated MDF with matching matte white finish
Countertop work surfaceSeamless solid surface with rounded edges
Hardware (optional storage)Cold-rolled steel drawer slides, soft-close hinges
Cable management grommetsABS plastic 80mm diameter ports
Surface finish coatingMatte anti-fingerprint polyurethane sealer
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
Primary Connector SpecificationReference M6-M8 with at least 2 fixing points per main support
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

LED accent lighting controlWall-mounted dimmer switch, adjustable brightness from 10% to 100%
Cable management systemRear cable channel with 80mm grommets for power and data cords
Optional storage integrationLockable drawer and filing cabinet sections fitted behind staff-side panel
Optional power accessBuilt-in AC outlets and USB charging ports fitted to rear work ledge
Sectional assemblyKnock-down 3-section construction for narrow entryway access
Seamless repair capabilitySolid surface exterior can be sanded and polished to remove minor scratches
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Corporate office lobbiesModern minimalist aesthetic matches high-end commercial reception areas for visitor greeting
Hotel front desksDurable seamless surface is suitable for high-traffic guest check-in zones
Medical clinic receptionNon-porous solid surface is easy to sanitize for healthcare waiting areas
Salon and SPA receptionSoft LED lighting creates welcoming ambiance for beauty and wellness venues
Bank service countersStanding work height supports efficient customer transaction processing
Recommended configurationPair with ergonomic standing reception stools for staff comfort during long shifts
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office work tables safety and strength requirements, applicable for standing work surfaces
EN 60598-1:2015Luminaire general safety requirements, applicable to integrated LED accent lighting
EN 13722:2004Furniture strength and durability for contract office storage components
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products performance standard, applicable for countertop load and stability testing
ANSI/BIFMA X5.9-2019Storage units performance standard, applicable for optional drawer components
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable for structural safetyAcceptance
GB 7000.201-2008Safety requirements for fixed general-purpose luminaires, applicable to integrated LED lighting
GB/T 4893.8-2013Surface furniture wear resistance test method, applicable for exterior finish durabilityAcceptance
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for structural safetyAcceptance;
2. GB 7000.201-2008:Safety requirements for fixed general-purpose luminaires, applicable to integrated LED lighting;
3. GB/T 4893.8-2013:Surface furniture wear resistance test method, applicable for exterior finish durabilityAcceptance;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · RCP-LED-2400-WHT

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · RCP-LED-2400-WHT

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · RCP-LED-2400-WHT打开导出工具

页面快速操作

发布采购询价

产品描述

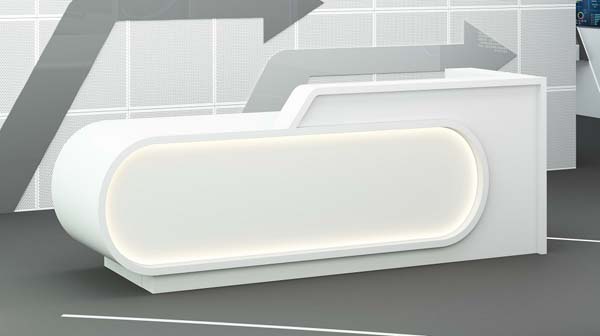

The Matte White Asymmetrical LED-Illuminated Commercial Reception Desk (model RCP-LED-2400-WHT, unbranded) presents a sleek, contemporary freestanding form defined by its asymmetrical silhouette: a smoothly rounded 300mm bullnose edge softens its left end, while a 1800mm capsule-shaped recessed panel sits integrated into the front visitor-facing facade. The unit stands 1100mm tall at its raised rear work ledge, with a 750mm-tall front visitor panel resting on a matching 100mm matte white plinth base. The 2400mm-wide layout offers a 600mm-deep, 50mm-thick seamless work surface with rounded edges, sized to comfortably accommodate two staff members during operation. Built for heavy commercial use, the desk features a 12mm matte white acrylic resin composite solid surface exterior, finished with an anti-fingerprint matte polyurethane sealer. Its internal structure relies on an 18mm birch plywood frame, with load-bearing countertop sections reinforced to a 40mm composite build-up, and the low plinth base constructed from powder-coated MDF in a matching matte white finish. Accent lighting comes from a 24V dimmable LED strip with a frosted diffuser, fitted into the front recessed panel, with a rated operational lifespan of 50000 hours. The countertop supports a 150kg static load, resists 60N of surface impact, and minor scratches can be removed by sanding and polishing the solid surface for seamless repair. Functional design elements support smooth daily operation: the LED lighting connects to a wall-mounted dimmer for adjustable brightness between 10% and 100%, while a rear cable channel fitted with 80mm ABS plastic grommets routes up to 10 power or data cables, with a 10kg tray load capacity. Optional upgrades include lockable drawer and filing cabinet sections with cold-rolled steel soft-close slides rated for 25kg load capacity and 50000 open-close cycles, plus built-in AC outlets and USB charging ports on the rear work ledge. The desk ships in knock-down 3-section construction to fit through narrow entryways, with assembly requiring 40 minutes per unit. This reception desk suits a range of high-traffic commercial spaces, including corporate office lobbies with modern minimalist design schemes, high-footfall hotel front desks, easy-to-sanitize medical clinic reception zones, warm-ambiance salon and spa entryways, and efficient bank service counters; pairing with ergonomic standing reception stools is recommended to support staff comfort during extended shifts. For procurement, note the unit ships across cartons with a total packaged gross weight of 180kg and 1m³ total packaging volume, and plan for optional storage and power accessories to match operational needs prior to installation.
