PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	2800 × 850 × 1100 mm
Staff worksurface height	860 mm
Public-facing transaction counter height	1100 mm
Worksurface thickness	50 mm
Front facade panel thickness	18 mm
Base footprint width	2600 mm
Base footprint depth	750 mm
Floor clearance under unit	10 mm
Facet panel edge width	150 mm
Transaction ledge depth	200 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Worksurface static load capacity	150 kg
Unit net weight	220 kg
Surface scratch resistance rating	2000 cycles
Recommended maximum simultaneous users	3
Leveling foot adjustment range	15 mm
Storage drawer static load (if fitted)	25 kg
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Front facade panels	18mm MDF substrate with 7-layer high-gloss orange PU lacquer
Worksurface	20mm acrylic modified solid surface with high-gloss polished finish
Internal structural frame	40x40mm square steel tubing with powder-coated finish
Internal cabinet carcass	15mm multi-layer plywood with melamine interior finish
Leveling feet	12mm diameter zinc-plated steel with nylon base pad
Edge detailing	2mm matching color PU edge sealing on all panel joints
Hardware components	Stainless steel concealed hinges and drawer slides (if fitted)
Optional internal cable management	PVC cable grommets with 60mm diameter, powder-coated steel cable tray
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Freestanding installation	Self-supporting unit requiring no wall fixing, placed directly on finished lobby floors
Staff privacy screening	Solid 1100mm high faceted front facade blocks seated staff from direct public view
Leveling adjustment	Rotating steel feet at base adjust to eliminate wobble on uneven tile or carpet flooring
Integrated cable routing	Pre-drilled cable ports and internal tray conceal power and data cables for computers/phones
Concealed internal storage	Hidden cabinet space behind front facade accommodates drawers/shelves for office supplies
Transaction surface	Raised public ledge supports document exchange and visitor item placement during check-in
Seamless faceted assembly	CNC-cut panels joined with hidden fasteners to create continuous geometric front surface
Custom finish compatibility	Lacquer finish supports custom color matching for corporate brand identity requirements
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Corporate office lobby	Primary use as front check-in desk for company headquarters and large office floors
Hotel reception area	Suitable for boutique hotel lobbies requiring high-impact statement front desk
Commercial showroom entry	Functions as visitor registration and information counter for retail or exhibition showrooms
Salon and beauty clinic reception	Adaptable for high-end service business front counters with transaction ledge
Open plan office collaboration zone	Can serve as a central welcome point for co-working spaces and creative offices
Public building service counter	Suitable for government or cultural center public service desks

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011	Office worktables safety and strength requirements, applicable to staff worksurface performance
EN 13722:2004	Office furniture reception desks safety and dimensional requirements
EN 12720:2009+A1:2013	Surface resistance to cold liquids, applicable to lacquered worksurface durability

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021	Desk products performance standard, applicable to load and stability testing
ANSI/BIFMA M7.1-2019	Test method for formaldehyde and VOC emissions from office furniture

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to panel substrate and structural integrity
GB/T 4893.1-2021	Surface abrasion resistance test for furniture finishes, applicable to high-gloss lacquer performance
GB/T 4893.2-2021	Surface wet heat resistance test, applicable to worksurface durability in daily use
GB 18580-2017	Formaldehyde emission limits for wood-based panels, required for indoor commercial furniture

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable to panel substrate and structural integrity；
2. GB/T 4893.1-2021：Surface abrasion resistance test for furniture finishes, applicable to high-gloss lacquer performance；
3. GB/T 4893.2-2021：Surface wet heat resistance test, applicable to worksurface durability in daily use；
4. GB 18580-2017：Formaldehyde emission limits for wood-based panels, required for indoor commercial furniture；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · REC-FAC-ORG-2800

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · REC-FAC-ORG-2800

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · REC-FAC-ORG-2800打开导出工具

页面快速操作

发布采购询价

产品描述

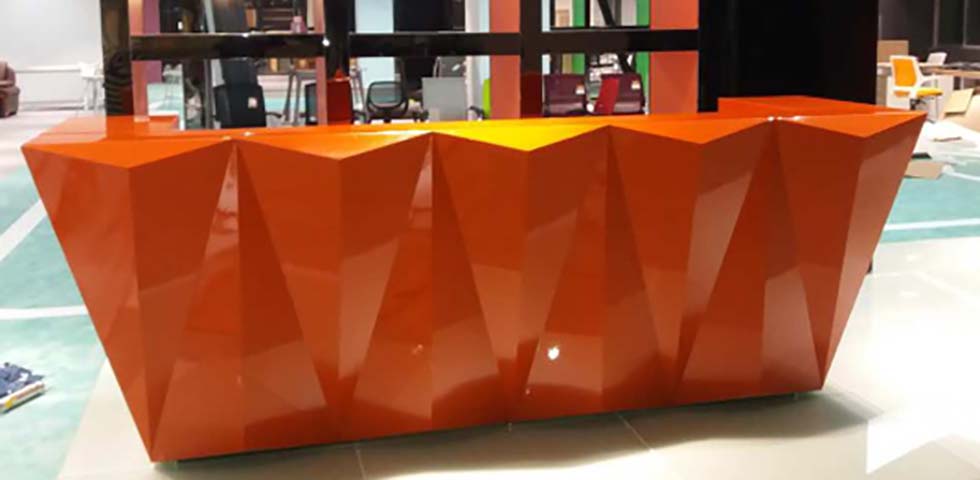

The Faceted High-Gloss Orange Commercial Reception Desk, model REC-FAC-ORG-2800, is an unbranded freestanding sculptural lobby furniture piece defined by its bold, geometric faceted front facade and vibrant high-gloss orange finish. Its continuous CNC-cut front panels are joined with hidden fasteners to create a seamless, eye-catching profile, with two distinct elevation zones: an 860mm high solid work surface for staff, and an 1100mm tall public-facing transaction ledge that supports document exchange and visitor item placement. The full front facade rises to the full 1100mm unit height, creating solid privacy screening that blocks seated staff from direct public view, while the 2600mm wide, 750mm deep base sits with 10mm floor clearance for a streamlined, anchored look. The desk is built for heavy commercial use, with a 40x40mm powder-coated square steel internal frame providing rigid structural support. Front facade panels use an 18mm MDF substrate finished with seven layers of high-gloss orange PU lacquer, sealed at all joints with 2mm color-matched PU edging. The 50mm thick work surface is constructed from 20mm acrylic modified solid surface with a high-gloss polish, reinforced with composite build-up for load-bearing zones, rated to support 150kg of uniformly distributed static load. Internal cabinetry uses 15mm multi-layer plywood with melamine interior finishes, fitted with stainless steel concealed hinges and drawer slides if storage is selected, with each drawer rated for 25kg static load. 12mm zinc-plated steel leveling feet with nylon base pads offer 15mm of adjustment to eliminate wobble on uneven tile or carpet, while pre-drilled 60mm PVC cable grommets and an optional powder-coated steel cable tray route and conceal power and data cords for workplace devices. The desk supports up to three simultaneous staff users, with concealed internal storage space behind the facade for office supplies. It is ideally suited for high-visibility front-of-house settings, including corporate office lobbies, boutique hotel reception areas, commercial showroom entry points, high-end salon and beauty clinic fronts, co-working space welcome zones, and public building service counters for government or cultural facilities. When procuring, note the unit ships across cartons with a total packaged gross weight of 180kg and 1 cubic meter total packaging volume, requires 40 minutes of on-site assembly, and does not require permanent wall fixing as it rests directly on finished flooring. Select optional cable management components and internal drawer or shelf configurations at time of order to match operational workflow needs.

Faceted High-Gloss Orange Commercial Reception Desk Specifications
