Curved Two-Station Office Reception Desk Specifications

RCP-2W-3200

代码:8JDCZ4V1
获取供应商报价
2026-08-10 14:01人气: 50
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

RCP-2W-3200

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions3200 x 1200 x 1100 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Product net weight185 kg
Worktop static load capacity150 kg
Recommended user count2 staff
Front panel impact resistance120 N
Surface scratch resistance2 Class
Design service life8 years
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Main cabinet body18 mm thick E1 grade MDF with high-gloss white UV paint
Decorative accent strip0.6 mm light oak wood grain melamine laminate
Bottom kickplate1.2 mm thick brushed 304 stainless steel
Worktop supports40 mm diameter clear polished acrylic columns
Worktop surface25 mm thick MDF with anti-scratch high-gloss white coating
Internal shelf panels16 mm thick particleboard with melamine finish
Edge banding2 mm thick PVC matching white finish
Internal hardwareZinc-plated steel cam locks and connecting fittings
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
Primary Connector SpecificationReference M6-M8 with at least 2 fixing points per main support
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Elevated work surfaceRaised 750 mm worktop held by clear acrylic supports for staff use
Front privacy panel1100 mm high curved facade blocks view of staff leg area from visitors
Internal cable managementPre-drilled 60 mm cable grommets at each work position for wiring access
Integrated lower storageConcealed compartment behind front panel with adjustable shelves
Freestanding installationFloor-standing unit requires no wall fixing, positioned against lobby wall
Modular assemblyThree connected curved segments joined on site for easy transport
Visitor transaction ledgeWide upper front edge to support document exchange with standing guests
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Corporate office lobbyPositioned at main entrance for visitor check-in and greeting
Medical clinic receptionSuitable for patient registration and appointment check-in stations
Hotel front deskScaled for two staff to handle guest check-in and concierge queries
Commercial showroom entryUsed for visitor registration and product consultation reception
Shared co-working space entrySupports multi-staff reception for member check-in and visitor management
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Applicable for office work desk dimensional and safety requirements
EN 13722:2004Applicable for furniture surface resistance to cold liquids and abrasion
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017Applicable for general technical requirements of wooden office furniture
GB 18580-2017Applicable for formaldehyde emission limits of wood-based panel materials
GB/T 4897.3-2015Applicable for particleboard used in furniture structural components
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:Applicable for general technical requirements of wooden office furniture;
2. GB 18580-2017:Applicable for formaldehyde emission limits of wood-based panel materials;
3. GB/T 4897.3-2015:Applicable for particleboard used in furniture structural components;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · RCP-2W-3200

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · RCP-2W-3200

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · RCP-2W-3200打开导出工具

页面快速操作

发布采购询价

产品描述

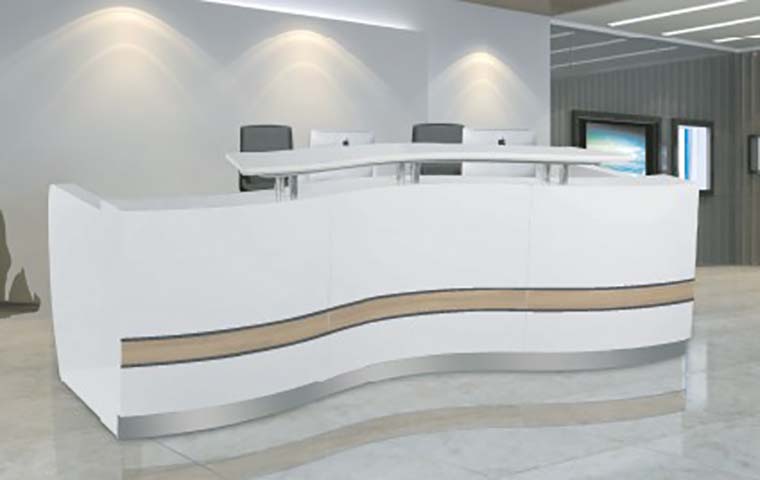

The Curved Two-Station Office Reception Desk, model RCP-2W-3200, presents a polished, welcoming front profile designed to anchor entryway spaces with a clean, contemporary aesthetic. Its continuous curved facade creates a smooth, approachable line for visitors, while its freestanding form is configured to sit flush against lobby walls without permanent wall fixation. Built for dual-staff operation, the layout separates two dedicated workstations behind a tall curved front privacy panel that obscures the staff leg area from guest view, balancing open, welcoming interaction with discreet working space for employees. Construction balances durable, finished materials for long-term commercial use. The main cabinet body is crafted from E1 grade MDF finished with high-gloss white UV paint, accented by a light oak wood grain melamine decorative strip, with a brushed 304 stainless steel kickplate along the base. The worktop features an anti-scratch high-gloss white coating, supported by polished clear acrylic columns, with matching white PVC edge banding to seal exposed panel edges. Internal components include melamine-finished particleboard shelves and zinc-plated steel cam lock hardware for secure, stable assembly. The unit ships in segmented curved pieces for simplified transport, joined on site during setup. Functional details support smooth daily reception operations. An elevated staff worktop sits at a comfortable working height, paired with a wide front transaction ledge to facilitate easy document exchange with standing visitors. Each workstation includes pre-drilled cable grommets routed to an internal cable management system to keep wiring organized and out of sight. Concealed lower storage behind the front panel holds adjustable shelves for supplies and work materials, while dedicated knee clearance at each seat supports comfortable extended use for staff. This reception desk suits a range of commercial entry environments, including corporate office lobbies for visitor check-in and greeting, medical clinic reception areas for patient registration, hotel front desks for two-staff guest services, commercial showroom entries for product consultation, and co-working space entrances for member and visitor management. Procurement teams should note the unit is supplied unbranded, requires on-site assembly, and ships across multiple cartons. Teams should confirm available entry and installation space matches the unit’s full footprint prior to purchase, and account for assembly coordination during space fit-out to align with opening timelines. The design is engineered for an 8-year service life, with a static worktop load capacity suited to standard reception equipment and daily transaction use.
