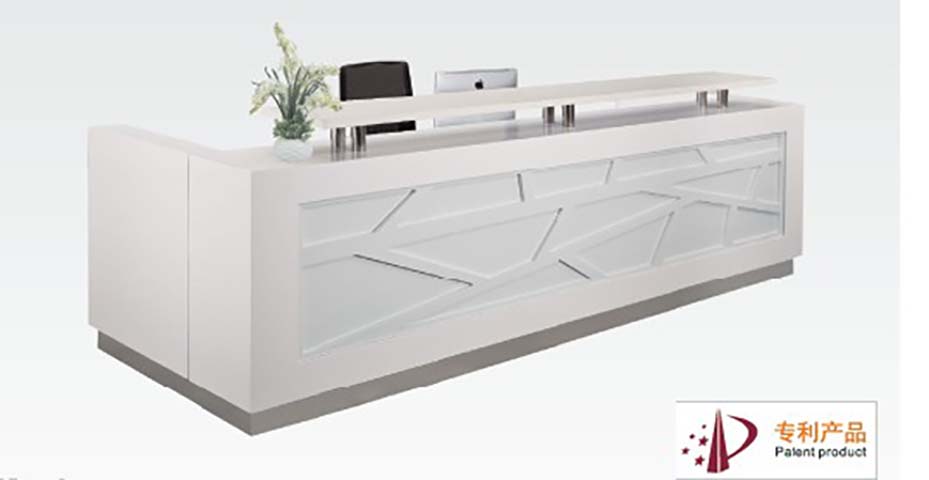

L-Shaped High-Gloss White Geometric Facade Reception Desk with Raised Transaction Shelf Specifications

RCV-L2400-WHT-GEO

代码:9SYXRMV1
获取供应商报价
2026-08-10 11:17人气: 47
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

RCV-L2400-WHT-GEO

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions2400 x 1200 x 1100 mm
Main work surface height750 mm
Raised transaction shelf height from floor1100 mm
Raised shelf depth300 mm
Knee clearance height under main work surface690 mm
Left return section width800 mm
Work surface panel thickness50 mm
Front facade panel thickness25 mm
Stainless steel support post diameter60 mm
Kickbase plinth height100 mm
Cable grommet diameter80 mm
Edge banding thickness2 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Main work surface static load capacity80 kg
Net product weight220 kg
Recommended seating capacity2 staff
Drawer slide dynamic load rating35 kg
Drawer slide cycle rating50000 cycles
Cabinet hinge cycle rating80000 cycles
Structural warranty period5 years
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Core substrate18mm thick high-density MDF board
Surface finishMulti-layer high-gloss white piano bake lacquer
Front decorative facadeEmbossed geometric angular MDF panel with matching lacquer finish
Raised shelf supportsPolished 304 stainless steel cylindrical posts
Base kickbaseGrey matte laminated engineered wood plinth
Work surface edge2mm thick matching high-gloss PVC edge banding
Internal storage hardwareCold-rolled steel drawer slides and zinc-plated hinges
Left side enclosure panel25mm thick solid white lacquered MDF
Cable management componentsABS plastic cable grommets and powder-coated steel cable trays
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Dual-level work surfaceLower 750mm work surface for staff computer tasks, upper 1100mm shelf for visitor interaction and display
Integrated cable managementDesktop grommets route cords to internal under-desk cable trays
Lockable under-desk storageLeft return section includes 2 lockable drawers and 1 adjustable storage cabinet
Seated workstation accommodation690mm knee clearance supports standard office task chair adjustment range
Modular customizable layoutL-shaped configuration can be extended or modified for different lobby sizes
Optional LED accent lightingRecessed channel under raised shelf supports dimmable LED strip installation
Optional logo customizationFlat raised shelf front panel allows engraved or backlit company logo installation
Floor level adjustmentHidden adjustable glides under kickbase compensate for uneven floor surfaces
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Corporate office lobbiesFits medium to large entry spaces for 2 reception staff, presents professional brand image
Retail store checkout countersSupports point-of-sale systems and customer transaction interaction for premium retail locations
Art gallery and museum reception areasGeometric faceted facade complements modern minimalist exhibition space design
Hotel and hospitality check-in areasAccommodates check-in terminals, guest documentation, and concierge staff use
Medical and clinic front desksNon-porous high-gloss surface allows easy disinfection and cleaning for healthcare environments
Co-working space entry pointsConfigurable layout fits flexible shared office reception zones, supports member check-in and visitor greeting
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-2:2002+A1:2019Office work tables - Safety and strength requirements
EN 13722:2004Furniture - Strength and durability of storage units
EN 12521:2015Furniture - Strength, durability and safety requirements for non-domestic tables
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk Products - Tests for safety, durability, and structural adequacy
ANSI/BIFMA X5.9-2019Storage Units - Safety and performance requirements
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture
GB 18580-2017Formaldehyde emission limits for wood-based panels
GB/T 4893.8-2013Surface abrasion resistance test for furniture coatings
GB/T 10357.1-2013Mechanical performance test for tables
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture;
2. GB 18580-2017:Formaldehyde emission limits for wood-based panels;
3. GB/T 4893.8-2013:Surface abrasion resistance test for furniture coatings;
4. GB/T 10357.1-2013:Mechanical performance test for tables;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · RCV-L2400-WHT-GEO

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · RCV-L2400-WHT-GEO

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · RCV-L2400-WHT-GEO打开导出工具

页面快速操作

发布采购询价

产品描述

This L-shaped high-gloss white reception desk combines a polished geometric facade with functional dual-surface design, crafted to deliver a professional first impression across commercial settings. Its visual profile features crisp angular embossed front panels finished in multi-layer high-gloss white piano bake lacquer, balanced by a matte grey composite kickbase plinth and polished cylindrical stainless steel support posts for the raised transaction shelf. The form follows a structured L-layout, with a left return section that anchors the configuration and creates an open, approachable transaction zone between staff and visitors. The desk is built on an 18mm thick high-density MDF core substrate, with 50mm thick work surfaces finished with 2mm matching high-gloss PVC edge banding, and 25mm thick front facade and left side enclosure panels coated in the same high-gloss lacquer. Internal storage uses cold-rolled steel drawer slides and zinc-plated hinges, while cable management components include ABS plastic grommets and powder-coated steel under-desk trays. The raised shelf is supported by polished 304 stainless steel posts, and the base rests on a durable grey matte laminated engineered wood plinth. Functional design supports smooth front-of-house operations: the 750mm high main work surface accommodates staff computer tasks with 690mm of knee clearance to fit standard office task chairs, while the 1100mm high, 300mm deep raised shelf facilitates visitor transactions and display. The left return integrates two lockable drawers and one adjustable storage cabinet, with integrated cable routing to keep work surfaces uncluttered. The modular L-shaped configuration can be extended or adjusted to suit different space sizes, with optional dimmable recessed LED accent lighting under the raised shelf and customizable front panel space for engraved or backlit company logos. The main work surface supports 80kg of static load, with drawer slides rated for 35kg dynamic load and 50,000 open-close cycles, and hinges rated for 80,000 cycles, backed by a 5-year structural warranty. This desk is suited for medium to large corporate office lobbies seating two reception staff, premium retail checkout points, modern art gallery and museum entry areas, hotel check-in zones, medical clinic front desks (where its non-porous high-gloss surface enables easy disinfection), and co-working space entry points. Procurement teams should note the unit ships across multiple cartons, requires 40 minutes of assembly per set, and offers flexible layout and branding customization to align with specific space and brand requirements.
