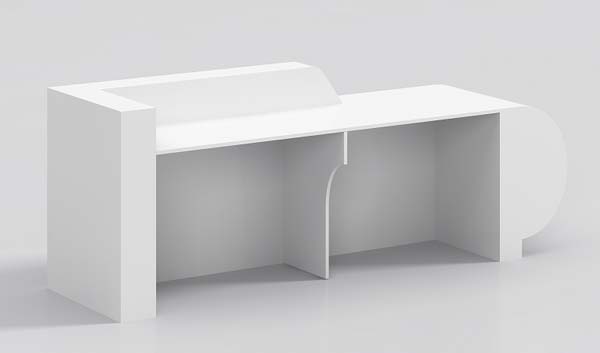

Monolithic White L-Shaped Executive Desk with Curved Rounded End Specifications

ED-LW-MONO-2000

代码:FJZYFYV1
获取供应商报价
2026-09-02 14:34人气: 25
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

ED-LW-MONO-2000

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall L-shape dimensions2000 x 1800 x 750 mm
Main work surface depth900 mm
Side return depth600 mm
Worktop thickness50 mm
Modesty panel thickness36 mm
Central knee clearance width800 mm
Knee clearance height650 mm
Rounded end radius (right main top)450 mm
Curved knee cutout radius150 mm
Raised back rail height on return100 mm
Edge band thickness2 mm
Floor support panel wall thickness36 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Desktop static uniform load capacity150 kg
Recommended maximum user weight for seated use136 kg
Surface abrasion resistance2000 cycles
Overall product net weight180 kg
Design service life10 years
Leveling adjustment range10 mm
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Desktop substrateHigh-density MDF/particleboard core
Desktop finishMatte white UV-cured paint
Modesty panelsThick engineered wood panel, matching white finish
Edge treatmentMatching white PVC edge banding
Structural support coreIntegrated floor-standing panel frame
Raised back railSame engineered wood with matching white finish
Leveling glidesNylon base with metal adjustment screw
Surface coating hardness2H scratch-resistant coating
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
Primary Connector SpecificationReference M6-M8 with at least 2 fixing points per main support
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Layout configurationFixed left-hand side return, non-reversible L-shape
Knee accessCentral curved cutout opening for front seated entry
Cable management grommet80 mm diameter desk grommet at work corner
Surface protectionStain and scratch resistant matte finish
Storage integrationFull-height solid modesty panels without exposed drawers
Leveling adjustmentHidden floor glides to compensate for uneven floors
Work surface zoningMain primary work zone plus auxiliary return work zone
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Executive private officeSuitable for company leadership and senior management workspaces
Home executive officeFits large dedicated home office spaces for remote senior professionals
Meeting and discussion spacesSide return provides extra surface for document review during small meetings
High-end corporate fit-outsMatches modern white minimalist office design schemes
Reception manager workspaceSuitable for senior reception or admin offices requiring large work surface
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office work tables - Part 1: Dimensions, applicable for ergonomic work surface and clearance sizing
EN 527-2:2016Office work tables - Part 2: Mechanical safety requirements, applicable for stability and load testing
EN 13722:2004Furniture - Work tables - Test methods for stability, applicable for floor-supported unit stability
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk Products standard, applicable for structural performance, durability and safety testing for office use
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable for structural safety and finish quality
GB/T 3327-2017Office desk performance test methods, applicable for load and stability verification
GB 18584-2001Indoor decorating materials - limit of harmful substances in wooden furniture, applicable for emission testing
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for structural safety and finish quality;
2. GB/T 3327-2017:Office desk performance test methods, applicable for load and stability verification;
3. GB 18584-2001:Indoor decorating materials - limit of harmful substances in wooden furniture, applicable for emission testing;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · ED-LW-MONO-2000

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · ED-LW-MONO-2000

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · ED-LW-MONO-2000打开导出工具

页面快速操作

发布采购询价

产品描述

The Monolithic White L-Shaped Executive Desk with Curved Rounded End, model ED-LW-MONO-2000, is an unbranded panel-constructed workspace solution defined by its clean minimalist modern aesthetic. Its fixed non-reversible L-shaped layout features a left-hand side return, with a smoothly rounded radius end on the right edge of the main worktop that softens the desk’s angular silhouette and eliminates sharp corners at user access points. The entire piece features a consistent matte white finish across all visible surfaces, with a central curved knee cutout positioned for direct front seated entry, creating a streamlined, unbroken visual profile free of protruding hardware or disjointed components. Built on an integrated floor-supported monolithic panel frame, the desk uses a high-density engineered wood core of MDF and particleboard, topped with a matte white UV-cured paint finish coated to resist scratches and stains. All edges are finished with matching white PVC banding, and thick solid modesty panels run the full height of the desk without exposed drawer compartments, paired with a matching raised back rail for a cohesive look. Hidden nylon leveling glides with metal adjustment screws compensate for uneven floor surfaces, while the worktop is built to support static uniform loads of 150 kg, with a 2H hard surface coating tested for abrasion resistance. The frame accommodates seated users up to the recommended maximum weight, with a rated design service life of 10 years. Functionally, the desk splits its surface into a dedicated primary work zone and an auxiliary zone on the side return, with an 80 mm cable management grommet positioned at the internal work corner to route power and data cords out of sight. The layout supports a range of professional settings: it fits executive private offices for senior company leadership, large dedicated home offices for remote senior professionals, high-end corporate fit-outs aligned with minimalist white design schemes, senior reception and admin workspaces requiring ample surface area, and small meeting settings where the side return holds materials for collaborative document review. For procurement planning, note the desk ships across multiple cartons per set, with a stated assembly time of 40 minutes per unit, and a total packaged volume of 1 cubic meter per set. The non-reversible fixed return orientation requires pre-confirmation of workspace layout to ensure correct placement relative to room entry and seating position, and the solid panel construction means no additional under-desk storage is integrated into the base, allowing teams to pair the desk with compatible mobile storage units as needed for individual workspace requirements.
