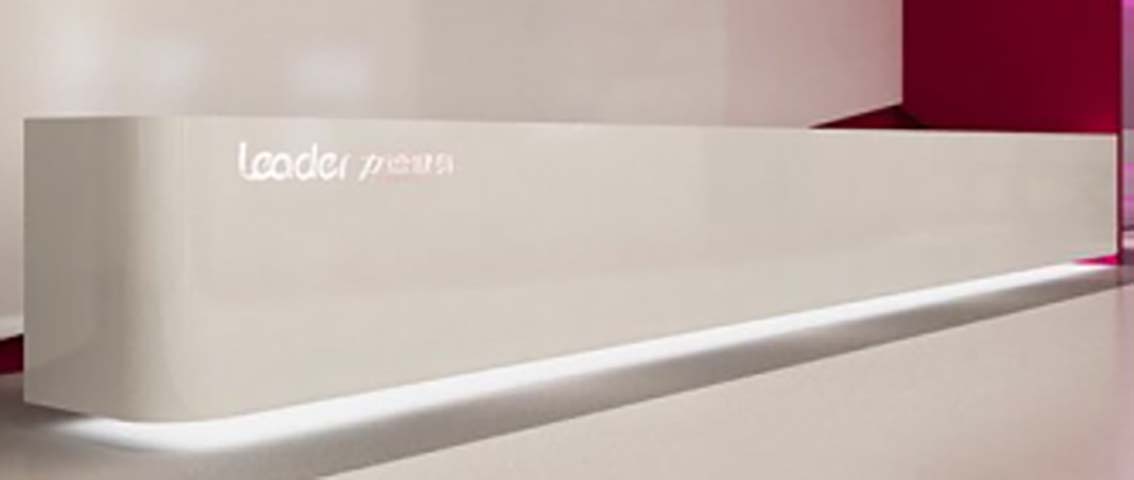

商品供应商Monolithic Matte Off-White Curved Reception Desk with Illuminated Plinth,MDF
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions | 2400 x 600 x 800 mm | |
|---|---|---|
| Countertop thickness | 50 mm | |
| Toe kick height | 100 mm | |
| Rounded left corner radius | 150 mm | |
| Front panel thickness | 25 mm | |
| LED strip width | 20 mm | |
| Logo placement zone height | 200 mm | |
| Floor clearance under base | 30 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Countertop static load capacity | 150 kg | |
|---|---|---|
| Recommended workstation capacity | 2 staff | |
| LED strip service life | 50000 hours | |
| Finish abrasion resistance | 2000 cycles | |
| Net product weight | 120 kg | |
| Surface stain resistance rating | Grade 4 | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Countertop core | 18mm MDF substrate with 25mm edge build-up | |
|---|---|---|
| Front facade | Matte UV-cured lacquer finish over MDF panel | |
| Base frame | Powder-coated square steel tube internal support | |
| LED light strip | SMD2835 linear LED strip with diffuser cover | |
| Edge banding | 2mm thick matching color PVC edge band | |
| Bottom leveling feet | 12mm diameter adjustable nylon feet | |
| Logo panel | Printed or backlit acrylic logo insert | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support | |
| Reference Finish / Color Count | Recommended 6top finishes and 3frame colors |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Base ambient lighting | Continuous linear LED along full plinth length, 4000K neutral white | |
|---|---|---|
| Leveling adjustment | 15mm vertical adjustment range via hidden base feet | |
| Logo customization | Replaceable front logo panel for brand identity | |
| Storage compatibility | Integrated lockable drawer/cabinet option behind facade | |
| Cable management | 80mm diameter desk grommet option for workstation wiring | |
| Surface maintenance | Non-porous seamless finish for wipe-clean daily sanitation | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
推荐空间 / 目标用户 / 使用方式
| Office lobby reception | Front-of-house visitor check-in and greeting for corporate offices | |
|---|---|---|
| Retail store checkout | Minimalist service counter for boutique retail and beauty salons | |
| Medical clinic front desk | Hygienic seamless counter for hospital and clinic admission areas | |
| Hotel welcome desk | Guest check-in counter for small boutique hotels and service apartments | |
| Two-staff operation | Designed for two reception staff to work side-by-side simultaneously |
欧洲市场准入与化学品要求
| EN 15372:2016 | Furniture – Strength, durability and safety for non-domestic seating and tables | |
|---|---|---|
| EN 62471:2008 | Photobiological safety of integrated LED lighting products | |
| EN 14073-2:2004 | Office furniture – Storage furniture, safety requirements for integrated cabinets |
美国及加拿大家具标准
| ANSI/BIFMA X5.5-2021 | Office Desk Products, performance standard for countertop load and stability | |
|---|---|---|
| ANSI/BIFMA e3-2019 | Furniture sustainability standard, for material emissions verification |
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel construction | |
|---|---|---|
| GB 7000.1-2015 | Safety requirements for integrated LED lighting components in furniture | |
| GB/T 4893.8-2013 | Surface abrasion resistance test method for furniture finishes, forAcceptancereference | |
| GB 18584-2001 | Limit of harmful substances in wood furniture, for indoor air qualityAcceptance |
本产品须满足以下技术参数要求: 1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to panel construction; 2. GB 7000.1-2015:Safety requirements for integrated LED lighting components in furniture; 3. GB/T 4893.8-2013:Surface abrasion resistance test method for furniture finishes, forAcceptancereference; 4. GB 18584-2001:Limit of harmful substances in wood furniture, for indoor air qualityAcceptance; 最终交付参数、检测报告和验收标准以双方采购合同为准。
