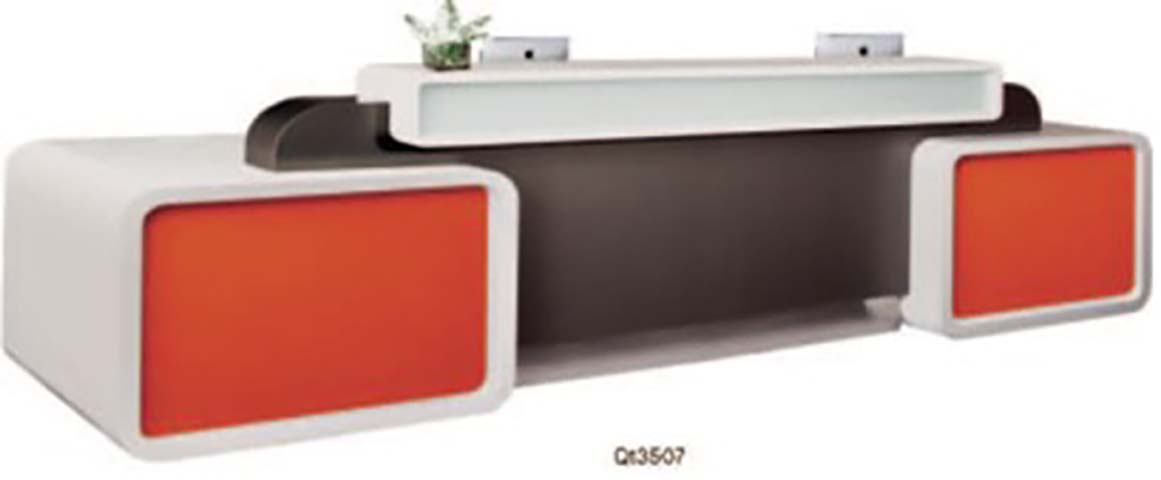

商品供应商Curved Two-Station Reception Desk with Orange Accent Panels and Wire Grommets,MDF
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions | 3000 x 800 x 1100 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Worktop static load capacity | 150 kg | |
|---|---|---|
| Total unit net weight | 220 kg | |
| Maximum supported user count | 2 | |
| Drawer/cabinet shelf static load | 30 kg per shelf | |
| Surface impact resistance | 12 N | |
| Product warranty | 3 years | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Main desk carcass | 18mm E1 grade medium density fiberboard with matte white polyurethane paint | |
|---|---|---|
| Central modesty panel | 18mm E1 grade medium density fiberboard with matte dark brown polyurethane paint | |
| Accent drawer/cabinet fronts | 18mm medium density fiberboard with matte orange paint and white rounded edge trim | |
| Worktop surface | 50mm high density particleboard core with matte white anti-scratch laminate | |
| Connecting support brackets | 2mm thick powder-coated steel brackets connecting elevated counter to main carcass | |
| Cable grommets | Brushed finish ABS plastic with removable cover for cable routing | |
| Edge banding | 2mm thick PVC edge banding matching panel color on all exposed edges | |
| Base plinth | 25mm thick engineered wood with matching white paint finish | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Two-position workstation layout | Provides 1500mm dedicated work space per receptionist with separated grommet access | |
|---|---|---|
| Integrated cable management | Two 80mm grommets route power and data cables from worktop to under-desk space | |
| Dual side storage cabinets | Left and right units provide enclosed storage for office supplies and visitor materials | |
| Raised transaction counter | 1100mm high rear counter separates staff work area from visitor standing interaction zone | |
| Central open visitor knee space | 800mm wide under-desk opening allows seated visitors to complete forms at the desk | |
| Fixed modular assembly | Units are secured with cam lock hardware for rigid installation without movable parts | |
| Scratch-resistant work surface | Matte laminated top resists everyday scuffs from office equipment and visitor items | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Number of shipping cartons | 3 | |
|---|---|---|
| Largest carton dimensions | 1550 x 850 x 650 mm | |
| Total shipping gross weight | 260 kg | |
| Total shipment volume | 1.7 CBM | |
| On-site assembly time | 120 minutes | |
| 20ft container loading capacity | 18 units | |
| 40ft HQ container loading capacity | 45 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately |
推荐空间 / 目标用户 / 使用方式
| Corporate office lobby | Two-station layout supports reception staff managing visitor check-in and access control | |
|---|---|---|
| Hotel front entrance | Elevated transaction counter supports guest check-in and concierge service workflows | |
| Medical clinic reception area | Central open knee space allows patient paperwork completion with low partition height | |
| Beauty salon front desk | Dual side storage units hold appointment materials and retail product displays | |
| Co-working space entry | Dual stations support member check-in and visitor registration at shared facility entrances |
欧洲市场准入与化学品要求
| EN 527-2:2002+A1:2019 | Office worktables safety and strength requirements, applies to structural stability and load testing | |
|---|---|---|
| EN 13722:2004 | Furniture assessment of surface resistance to abrasion and impact, applies to painted and laminated surfaces |
美国及加拿大家具标准
| ANSI/BIFMA X5.5-2021 | Desk products standard for safety, durability and structural performance, applies to commercial grade validation |
|---|
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applies to dimensional tolerance and surface finish quality | |
|---|---|---|
| GB/T 3327-2016 | Performance requirements for office desks, applies to static load and stability testing of work surfaces | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applies to all MDF/particleboard components | |
| GB/T 4897-2015 | Quality requirements for particleboard used in furniture construction, applies to worktop core material |
本产品须满足以下技术参数要求: 1. GB/T 3324-2017:General technical requirements for wooden office furniture, applies to dimensional tolerance and surface finish quality; 2. GB/T 3327-2016:Performance requirements for office desks, applies to static load and stability testing of work surfaces; 3. GB 18580-2017:Formaldehyde emission limits for wood-based panels, applies to all MDF/particleboard components; 4. GB/T 4897-2015:Quality requirements for particleboard used in furniture construction, applies to worktop core material; 最终交付参数、检测报告和验收标准以双方采购合同为准。
