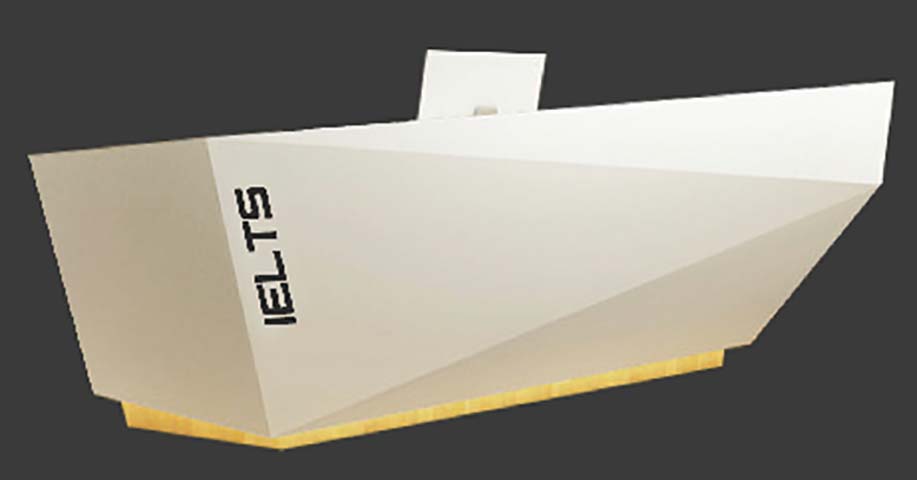

Faceted White Commercial Reception Desk with Gold Plinth Specifications

RCV-FAC-WHT-3200

代码:SKQ2AAV1
获取供应商报价
2026-08-10 16:17人气: 49
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

RCV-FAC-WHT-3200

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions3200 x 750 x 1100 mm
Counter worktop height1100 mm
Worktop thickness50 mm
Gold plinth height80 mm
Faceted front panel angle15 degrees
Front modesty panel height850 mm
Edge banding thickness2 mm
Internal shelf depth300 mm
Cable grommet diameter80 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total worktop static load capacity500 kg
Drawer slide (if fitted) load rating45 kg
Drawer slide cycle rating50000 cycles
Hinge cycle rating (if fitted)100000 cycles
Recommended reception staff count2
Finish scratch resistance2H hardness
Product net weight (reference)280 kg
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Internal frame18mm thick plywood
Front faceted panelsMDF substrate with 0.8mm white matte lacquer finish
Worktop25mm MDF with solid surface veneer overlay
Base plinth trim1.2mm thick brushed gold stainless steel
Edge banding2mm thick ABS matching white finish
Hardware (fasteners)Zinc-plated steel screws and cam locks
Cable grommetsABS plastic with brush insert
Internal shelf panels15mm thick melamine-faced particle board
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
Primary Connector SpecificationReference M6-M8 with at least 2 fixing points per main support
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Enclosed front modesty panelFull-height faceted panel blocks view of staff leg area and storage
Central cable management portTop-mounted grommet routes power/data cables for monitors, POS, and signage
Optional internal storageConfigurable internal shelves and lockable drawers for office supplies and documents
Wall anchoring provisionPre-drilled rear mounting points secure unit to wall for anti-tip stability
Optional integrated LED lightingRecessed strip mounting channels along faceted panel edges for ambient accent lighting
Floor leveling adjustmentAdjustable feet under base plinth compensate for uneven floor surfaces
Custom signage mountingFlat top recessed area supports branded logo/signage installation
Central signage/grommet block size200 x 200 mm
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Office lobby receptionPositioned at building entry for visitor greeting, check-in, and guest direction
Education training center welcomeUsed for student registration and information desk in language training institutions
Hotel lobby concierge counterServes as front desk for guest check-in assistance and key distribution
Retail store checkout counterFunctions as premium checkout and customer service point for boutique retail
Salon and beauty studio receptionUsed for appointment booking, payment processing, and product display
Co-working space entry deskSupports member check-in, access control, and visitor management for shared offices
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office worktables and desks safety and strength requirements, applicable for work surface load testing
EN 15372:2016Commercial furniture durability and stability requirements for non-domestic seating and surfaces
EN 13722:2004Furniture assessment of surface resistance to abrasion, applicable for lacquer finish testing
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable for structural quality inspection
GB 18584-2001Indoor decoration material limit of harmful substances for wooden furniture, applicable for emission testing
GB/T 4897.3-2003Particle board for furniture use, applicable for substrate material performance verification
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for structural quality inspection;
2. GB 18584-2001:Indoor decoration material limit of harmful substances for wooden furniture, applicable for emission testing;
3. GB/T 4897.3-2003:Particle board for furniture use, applicable for substrate material performance verification;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · RCV-FAC-WHT-3200

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · RCV-FAC-WHT-3200

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · RCV-FAC-WHT-3200打开导出工具

页面快速操作

发布采购询价

产品描述

The Faceted White Commercial Reception Desk with Gold Plinth, model RCV-FAC-WHT-3200, is an unbranded, commercial-grade floor-mounted reception unit defined by its modern, sculptural form. Its front facade features faceted white panels set at a deliberate angle, paired with a brushed gold metal base plinth that creates a refined, contemporary visual profile. The desk’s layout supports two reception staff, with a full-height faceted front modesty panel that conceals staff leg areas and internal storage from visitor view, and a flat recessed section on the worktop reserved for custom branded signage. Construction centers on a sturdy 18mm thick plywood internal frame. Front faceted panels use an MDF substrate finished with 0.8mm white matte lacquer, while the worktop is built from 25mm MDF with a solid surface veneer overlay, with load-bearing sections using a composite build-up. All exposed edges are finished with 2mm thick ABS edge banding matched to the white finish, and the base plinth is trimmed with 1.2mm thick brushed gold stainless steel. Internal shelf panels are made from 15mm thick melamine-faced particle board, with hardware consisting of zinc-plated steel screws and cam locks. The white lacquer finish delivers 2H hardness scratch resistance, and the worktop supports a total static load of 500 kg. Optional lockable drawers use slides rated for 45 kg load capacity, while optional fitted hinges carry a 100,000-cycle rating. Functional design details address core reception workflow needs: a top-mounted central cable grommet with brush insert routes power and data cables for monitors, POS systems, and digital signage, while adjustable feet under the plinth compensate for uneven floor surfaces. Pre-drilled rear mounting points enable wall anchoring for anti-tip stability, and recessed channels along faceted panel edges support optional integrated LED accent lighting. Internal storage is configurable, with adjustable shelves and optional lockable drawers for supplies and documents. This desk suits a wide range of commercial spaces, including office lobbies for visitor check-in and greeting, education training centers for student registration, hotel lobbies for concierge and check-in services, boutique retail locations as a premium checkout and customer service point, beauty salons for booking and payment processing, and co-working spaces for member check-in and visitor management. Procurement teams should note the unit ships across multiple cartons, with a reference assembly time of 40 minutes per set, and reference packaged gross weight of 180 kg per set. Teams should plan for appropriate staffing to position the unit, account for in-floor or wall power access aligned with the central cable port, and confirm wall anchoring compatibility with installation site wall materials before deployment. Custom signage and internal storage configurations can be specified to match operational needs.
