基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源:工厂资料结构化字段,最终以实测值为准
| 产品外部尺寸(宽 × 深 × 高) | 2600 × 850 × 1050 mm | |
|---|---|---|
| Countertop thickness | 50 mm | |
| Front panel thickness | 25 mm | |
| Metal kick plate height | 100 mm | |
| Round accent light diameter | 100 mm | |
| Staff side knee clearance height | 700 mm | |
| Staff side work surface depth | 600 mm | |
| Edge band thickness | 2 mm | |
| Countertop overhang at staff side | 50 mm | |
| Arc front convex radius | 1800 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源:产品性能数据,采购前请核对具体测试口径
| Countertop static load capacity | 150 kg | |
|---|---|---|
| Staff side drawer static load | 35 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Seated staff capacity | 2 | |
| Surface abrasion resistance | 2000 cycles | |
| Net product weight | 160 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源:以工厂材质清单与验货报告为准
| Main structural substrate | E1 grade medium density fiberboard | |
|---|---|---|
| Front facade finish | High-gloss white baked paint finish | |
| Bottom kick plate | Brushed stainless steel | |
| Front accent lights | Round recessed warm white LED fixtures | |
| Countertop surface | Gloss white painted seamless surface | |
| Edge treatment | Color-matched painted edge sealing | |
| Internal support frame | Solid wood internal bracing | |
| Hardware components | Cold-rolled steel hardware | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源:功能配置参数,以供应商正式规格为准
| Front accent lighting | 6 recessed round LED lights provide ambient front facade illumination | |
|---|---|---|
| Cable management | Two 60mm diameter desk grommets route power and data cables for workstations | |
| Staff storage | Two lockable suspended drawers under counter for document storage | |
| Kick plate protection | Stainless steel bottom trim prevents scuff damage from foot traffic and cleaning | |
| Surface cleaning | Gloss non-porous finish supports wipe-down cleaning with standard office disinfectants | |
| Sectional assembly | Knock-down segmented construction supports on-site curved alignment | |
| Customization support | Length and curve radius adjustable to fit specific lobby dimensions | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源:外贸报价与装柜测算参考
| Largest outer carton dimensions | 1700 x 950 x 450 mm | |
|---|---|---|
| Total packaged gross weight | 190 kg | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源:依据产品结构与品类整理的推荐应用场景

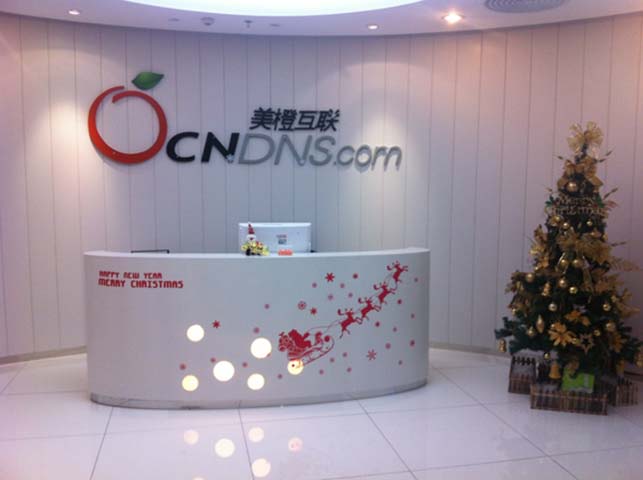

| Corporate office lobby | Primary placement below company logo wall for visitor greeting and check-in | |
|---|---|---|
| Service reception area | Suitable for medical clinic, hotel or service center front counter use | |
| Two-staff workstation | Accommodates two reception staff with computer and check-in equipment | |
| Modern minimalist interior | Matches white paneled, bright lobby interior design schemes | |
| Temporary seasonal decoration | Smooth front panel supports adhesive festive decals without surface damage |
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| Office furniture strength/stability | EN 527:2023 | |
|---|---|---|
| Office furniture ergonomic dimensions | EN 527:2011+A1:2023 |
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| Office furniture structural safety | GB/T 3325 | |
|---|---|---|
| Formaldehyde emission limit | GB 18580 | |
| Furniture surface paint performance | GB/T 4893.1 |
本产品须满足以下技术参数要求: 1. Office furniture structural safety:GB/T 3325; 2. Formaldehyde emission limit:GB 18580; 3. Furniture surface paint performance:GB/T 4893.1; 最终交付参数、检测报告和验收标准以双方采购合同为准。
