Name: Modern Glossy White Asymmetrical LED Office Reception Desk
Brand: Fanshidun
SKU: VAX4EZ

纠错时间

修改字段

原参数

修改后参数

说明 / 状态

暂无参数纠错记录，发现错误可点击行末旗标提交

PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	3200 × 800 × 1050 mm
Available size variants	2400x800x1050mm, 2800x800x1050mm, 3200x800x1050mm
Staff work surface height	750 mm
Visitor-facing counter height	1050 mm
Seated knee clearance height	650 mm
Seated knee clearance depth	450 mm
Countertop panel thickness	25 mm
Front modesty panel thickness	25 mm
Edge banding thickness	2 mm
Right curved end radius	150 mm
LED strip recess width	20 mm
Per-workstation width	1600 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Tabletop static uniform load capacity	320 kg
Drawer slide cycle rating	50000 cycles
Surface abrasion resistance	800 revolutions
Metal hardware salt spray corrosion resistance	500 hours
Recommended maximum user capacity	2 staff
Net weight (3200mm variant)	220 kg
LED strip operational lifespan	50000 hours
Commercial product warranty	3 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Core panel substrate	E1 grade medium-density fiberboard (MDF)
Surface finish	High-gloss white polyurethane bake paint
Edge treatment	2mm thick PVC edge banding, color-matched to finish
Internal support frame	1.0mm thick powder-coated steel square tubing
Accent lighting	Recessed cool-white linear LED strip with integrated driver
Assembly hardware	Zinc-plated steel cam-lock connectors and screws
Cable grommets	60mm diameter ABS plastic desk grommets
Foot levelers	12mm diameter nylon adjustable glide feet
Optional storage drawers	MDF drawer boxes with full-extension ball-bearing slides
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Dual-level stepped design	Raised 1050mm visitor-facing front panel with lower 750mm staff work surface
Integrated LED accent lighting	Recessed linear strips along angled front facade, hardwired to wall power
Dual staff workstation layout	Two separated knee clearance bays under work surface for side-by-side seating
Rounded curved right end	Smooth radiused corner on extended work section to reduce impact risk
Cable management access	Desk surface grommets route monitor and device cables to under-desk space
Knock-down assembly design	Flat-packed panels with pre-drilled connectors for on-site assembly
Adjustable foot levelers	Threaded glides at base corners adjust up to 10mm to level unit
Customizable orientation option	Stepped high section can be specified for left or right side
Optional locking storage	Lockable drawers for office supplies and visitor documentation
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Corporate office lobbies	Dual-station design supports visitor check-in and employee reception workflows
Hotel front concierge areas	High-gloss finish and LED lighting match upscale hospitality interior aesthetics
Commercial building reception areas	Durable 1050mm counter height accommodates standing visitor interaction
Clinic or service center front desks	Privacy modesty panel conceals staff workspace from public view
Startup office welcome zones	Modern minimalist design complements contemporary open-plan office interiors
Retail store checkout counters	Extended work surface holds POS systems and transaction materials
Recommended pairings	Pair with ergonomic reception task chairs, visitor waiting seating, and lobby signage

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011	Office work tables, safety and strength requirements for commercial work surfaces
EN 12521:2015	Furniture strength, durability and safety requirements for non-domestic seating-adjacent tables
EN 717-1:2004	Wood-based panel formaldehyde emission test method, chamber method for E1 classification

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017	General technical requirements for wooden office furniture, applicable to panel and finish quality
GB 18580-2017	Formaldehyde emission limit for wood-based panels, E1 ≤0.124mg/m³ requirement
GB/T 4897.3-2015	Performance requirements for MDF panels used in furniture construction
GB/T 10357.1-2013	Table static load and durability test methods for office desk surfaces

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017：General technical requirements for wooden office furniture, applicable to panel and finish quality；
2. GB 18580-2017：Formaldehyde emission limit for wood-based panels, E1 ≤0.124mg/m³ requirement；
3. GB/T 4897.3-2015：Performance requirements for MDF panels used in furniture construction；
4. GB/T 10357.1-2013：Table static load and durability test methods for office desk surfaces；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · SR-A201

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · SR-A201

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · SR-A201打开导出工具

页面快速操作

发布采购询价

产品描述

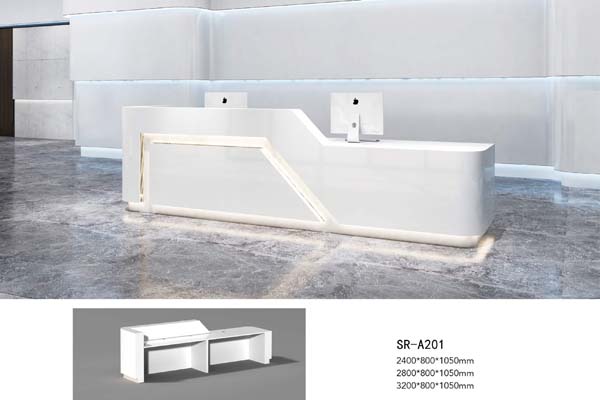

The Fanshidun SR-A201 Modern Glossy White Asymmetrical LED Office Reception Desk is a purpose-built public-facing furniture solution designed for high-traffic front-of-house settings. Its visual identity is defined by a sleek high-gloss white finish, an asymmetrical silhouette, and a dual-level stepped layout, with a smooth rounded curved right end on the extended work section that softens its modern lines and reduces impact risk. A recessed cool-white linear LED strip runs along the angled front facade, adding a subtle, polished accent that elevates surrounding interior aesthetics. The desk’s structure pairs E1 grade medium-density fiberboard (MDF) for core panels with a high-gloss white polyurethane bake paint surface, protected by 2mm thick color-matched PVC edge banding to guard against daily wear. Internal support comes from a 1.0mm thick powder-coated steel square tubing frame, while zinc-plated steel cam-lock connectors and screws secure all assembled components. The 25mm thick countertop and front modesty panel deliver robust structural integrity, with a 220kg net weight for the largest size variant. The dual-level design separates a raised 1050mm visitor-facing counter from a lower 750mm staff work surface, creating a clear divide between public interaction and private work zones. The desk supports up to two staff members via two separated knee clearance bays for side-by-side seating, with 650mm of seated knee clearance height and 450mm of depth for comfortable use. Integrated cable management uses 60mm diameter ABS plastic grommets to route device cables neatly under the work surface, while 12mm diameter nylon adjustable glide feet at the base allow up to 10mm of adjustment to level the unit on uneven floors. Optional MDF storage drawers with full-extension ball-bearing slides add concealed storage for work materials. The hardwired LED strip delivers long-lasting accent illumination, and the knock-down flat-pack design allows for straightforward on-site assembly, with a reference assembly time of 40 minutes per set. This reception desk is well suited for a range of commercial and select public-facing residential-adjacent spaces, including corporate office lobbies where it supports check-in and reception workflows, upscale hotel concierge areas where its high-gloss finish and LED lighting align with luxury hospitality design, commercial building entry zones where the counter height supports comfortable standing visitor interaction, clinic and service center front desks where the modesty panel protects staff workspace privacy, startup office welcome zones where its minimalist modern style complements open-plan interiors, and retail store environments where the extended work surface accommodates POS systems and transaction materials. For procurement, teams can select from three available size variants to match their floor space, with the largest variant measuring 3200 x 800 x 1050 mm to accommodate high foot traffic. Buyers should note the unit ships across multiple cartons with a total reference packaged volume of 1m³ per set, plan for appropriate on-site assembly support, and evaluate optional storage add-ons based on their team’s organizational needs to ensure the configuration aligns with daily operational requirements.

Modern Glossy White Asymmetrical LED Office Reception Desk Specifications
