首页 > 首页 > 办公桌椅家具 > 办公桌系列 > 前台接待台 > RCV-T3600-WHT-TIER

Multi-Station Tiered High-Gloss White Commercial Reception Desk Specifications

RCV-T3600-WHT-TIER

代码:YDK4FMV1
获取供应商报价
2026-08-10 14:10人气: 57
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

RCV-T3600-WHT-TIER

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions3600 x 900 x 1100 mm
Guest-facing front counter height1100 mm
Staff work surface height750 mm
Internal staff walkway clearance behind desk1470 mm
Work surface thickness50 mm
Raised base plinth height100 mm
Corner radius on exposed edges50 mm
Tiered front fascia step height80 mm
Cable grommet diameter80 mm
Lower modesty panel height650 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Top work surface static load capacity200 kg
Integrated storage drawer slide load rating25 kg
Drawer slide cycle durability50000 cycles
Door hinge cycle durability100000 cycles
Recommended number of simultaneous reception staff3
Product net weight320 kg
Surface abrasion resistance2000 cycles
Standard commercial warranty5 years
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface core18mm thick MDF substrate
Exterior finishHigh-gloss white UV-cured lacquer
Front fascia layersStacked MDF panels with matching high-gloss white finish
Base plinthPowder-coated steel support frame with white panel cladding
Edge banding2mm thick matching PVC edge banding
Internal support frame1.2mm thick square steel tube framework
Hardware componentsZinc-plated steel screws, cam locks and connector fittings
Cable management channelsPVC cable raceways mounted under work surface
Adjustable feet12mm diameter nylon leveling feet
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Tiered dual-height work zoneSeparates guest-facing transaction counter from lower staff work surface
Integrated cable management systemUndersurface raceways with surface grommets route power, data and security wiring
Modular assembly designKnock-down panel construction allows on-site assembly in lobby spaces
Adjustable floor levelingThreaded nylon feet adjust to correct uneven floor surfaces
Customizable length configurationModular sections support extended lengths for larger lobby spaces
Optional LED accent lightingRecessed strip lighting mounts under front fascia tiers for ambient effect
Storage compatibilityUnder-desk drawer pedestals and filing cabinets mount within staff workspace
Rounded corner safety designSoft radiused edges eliminate sharp impact points for high-foot-traffic areas
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Corporate office lobbiesServes as first-point-of-contact service counter for visitor check-in and greeting
Luxury hotel reception areasProvides multi-station guest check-in and concierge service for high-end properties
High-end medical and clinic entrancesOffers accessible patient check-in and check-out counter service
Large corporate headquarters visitor centersAccommodates multiple reception staff handling high daily visitor volumes
Premium salon and service establishment front desksDelivers upscale brand presentation for customer greeting and check-out
Recommended companion furniturePair with ergonomic office task chairs for staff, lobby seating for waiting guests
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 15372:2008+A1:2016Furniture strength, durability and safety requirements for non-domestic office furniture
EN 13722:2004Furniture strength and stability test methods for office reception and storage units
EN 12521:2015Furniture mechanical safety requirements for high-traffic commercial public use
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products standard covering static load, durability and stability for commercial units
ANSI/BIFMA X5.9-2019Storage components standard applicable to integrated drawers and cabinet accessories
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to structural performance and finish quality
GB/T 4897.3-2015Particleboard for furniture use, applicable to panel substrate structural performance
GB 18580-2017Formaldehyde emission limits for wood-based panels, required for indoor commercial furniture
GB/T 17657-2013Test methods for evaluating physical and chemical properties of wood-based panels
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to structural performance and finish quality;
2. GB/T 4897.3-2015:Particleboard for furniture use, applicable to panel substrate structural performance;
3. GB 18580-2017:Formaldehyde emission limits for wood-based panels, required for indoor commercial furniture;
4. GB/T 17657-2013:Test methods for evaluating physical and chemical properties of wood-based panels;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · RCV-T3600-WHT-TIER

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · RCV-T3600-WHT-TIER

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · RCV-T3600-WHT-TIER打开导出工具

页面快速操作

发布采购询价

产品描述

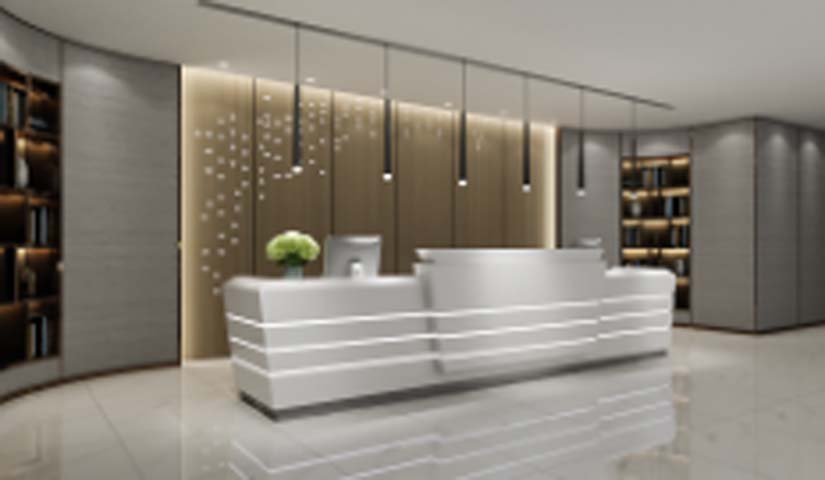

The Multi-Station Tiered High-Gloss White Commercial Reception Desk, model RCV-T3600-WHT-TIER, delivers a polished, professional focal point for high-traffic front-of-house spaces. Its freestanding, stepped tiered front fascia creates a refined modern silhouette, with an 80mm step height between layered front sections, rounded exposed edges finished to a 50mm radius for a smooth, approachable guest-facing profile, and a 100mm raised plinth base that elevates the structure visually while streamlining floor cleaning access. The dual-height layout separates the 1100mm tall guest transaction counter from the 750mm staff work surface, with 1470mm of internal walkway clearance behind the desk to support comfortable movement for up to three simultaneous reception staff. The desk measures 3600mm wide, 900mm deep, and 1100mm at its tallest front point, with a 50mm thick work surface. Its durable construction relies on an 18mm MDF substrate for the work surface, finished with high-gloss white UV-cured lacquer across all exterior panels, including stacked MDF front fascia layers. A 1.2mm thick square steel tube internal frame provides structural stability, supported by a powder-coated steel plinth frame clad in matching white panels, with 2mm matching PVC edge banding protecting all exposed edges. Zinc-plated steel hardware, 12mm nylon adjustable leveling feet, and PVC undersurface cable raceways with surface grommets create a robust, practical build. The work surface supports a 200kg static load, integrated storage drawers are rated for 25kg load with 50,000 cycle slide durability, and door hinges deliver 100,000 cycles of use, with surface finish resisting abrasion across 2000 cycles. Functional features include knock-down modular assembly that supports on-site build in 40 minutes, adjustable feet to correct uneven floors, customizable modular extensions for larger spaces, optional recessed LED accent lighting under front fascia tiers for ambient effect, and compatible under-desk drawer pedestals and filing cabinets to organize staff supplies. The integrated cable management system routes power, data, and security wiring out of sight for a clean, uncluttered appearance. This desk is suited for corporate office lobbies, luxury hotel reception areas, high-end medical clinic entrances, large corporate headquarters visitor centers, and premium salon and service establishment front desks, where it serves as a polished first point of contact for visitor check-in, greeting, and concierge or transaction services. Procurement teams should plan for two separate delivery cartons, account for the 320kg net weight of the assembled unit, and pair the desk with ergonomic staff task chairs and complementary lobby guest seating to complete a functional front-of-house setup. Custom length extensions can be specified to match the scale of larger lobby spaces as needed.
