PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	590 × 620 × 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Net weight	18 kg
Recommended user weight capacity	150 kg
Suitable user stature	190 cm
Seating capacity	1 person
Gas-lift vertical stroke	100 mm
Base static-load reference	1136 kg
Caster rolling durability reference	100000 cycles
Seat and back durability reference	100000 cycles
Upholstery abrasion reference	50000 Martindale cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Seat upholstery	Black smooth upholstery with horizontal stitched ribs; material grade requires supplier BOM confirmation
Back upholstery	Black padded ribbed upholstery over a contoured internal support panel
Seat cushion foam	80 mm high-resilience polyurethane foam with 45 kg/m3 density target
Back cushion foam	50 mm molded polyurethane foam with 35 kg/m3 density target
Internal seat shell	12 mm molded plywood or reinforced composite seat carrier
Back support frame	Steel or reinforced polymer inner frame connected to the tilt cradle
Armrest structure	Polished chrome-plated bent tubular steel frame with padded black arm pads
Gas lift	50 mm Class 4 chrome-plated steel gas-lift cylinder
Tilt mechanism	Black steel multi-position tilt mechanism with lever and tension knob
Five-star base	Polished chrome-plated die-cast aluminum or steel five-star base
Casters	Black nylon or polyurethane twin-wheel casters with steel swivel stems
Stitching construction	Horizontal seam channels with 8 mm seam pitch target for the ribbed face

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Pneumatic seat-height adjustment	100 mm lift stroke controlled by the visible side lever for 540 mm seat height
Back recline	118degree tilt travel with multi-position lock for upright work or relaxed posture
Tilt tension control	Rotary knob adjusts resistance to user weight and recline force
Fixed arm support	Cantilevered chrome arm frame provides 230 mm forearm support without width or height adjustment
Mobile caster movement	Five 60 mm twin-wheel casters provide omnidirectional movement on hard floors or carpet
High-back trunk support	560 mm ribbed back supports lumbar and lower-shoulder area during long meetings
Ribbed pressure-channel design	Horizontal padded channels flex and distribute back contact across separate panels
Single-lever operation	One primary side lever manages height setting while tilt lock and tension use separate controls
Floor-protection specification	Soft polyurethane tread casters with 100 kg per-chair dynamic load target
Backrest recline range	118degrees
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Executive office	Use behind a manager desk where the high ribbed back and chrome frame provide formal meeting and computer-work support
Open-plan workstation	Deploy for professional desk work requiring swivel access, caster mobility, and recline during focus tasks
Meeting or conference room	Specify around conference tables for users rotating between screen, documents, and discussion
Home office	Suitable for a dedicated home workstation with standard 760 mm desk height and hard-floor caster option
Reception or consulting area	Place in client consultation settings where a polished modern appearance and padded arms are needed
Commercial procurement configuration	Order in batches with black upholstery, chrome finish, and optional soft casters for wood, tile, or carpet
Single-shift office use	Target 8 hours daily use with 150 kg user capacity and commercial durability acceptance tests
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1 office chair dimensions	Use EN 1335dimensional terminology and measurement methods for seat, back, arm, and clearance verification
EN 1335-2 safety requirement	Specify EN 1335structural safety, stability, and strength verification before commercial procurement
EN 1335-3 test methods	Require EN 1335laboratory test reporting for static, fatigue, and impact performance
EN 1021 flammability option	Request EN 1021cigarette and EN 1021 match ignition testing when required by the project market

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1 office chairs	Specify ANSI/BIFMA X5.1 for back strength, seat durability, stability, base load, and caster testing
Base load verification	Require five-star base static-load evidence to the ANSI/BIFMA X5.1 test method with 1136 kg reference load
Caster durability verification	Require caster cycle evidence to 100000 cycles under ANSI/BIFMA X5.1 rolling-resistance and durability procedures

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

该市场暂无标准数据。

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. 技术标准与检测报告由供应商在投标或采购确认阶段提供；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · EOA-HB-RIB-01

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · EOA-HB-RIB-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EOA-HB-RIB-01打开导出工具

页面快速操作

发布采购询价

产品描述

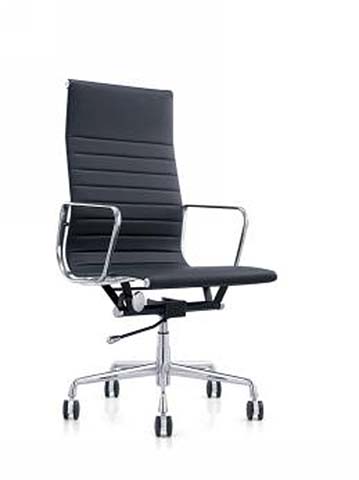

The Ribbed High-Back Swivel Executive Office Chair presents a formal modern silhouette through its tall black ribbed back, padded seat, and polished chrome tubular armrest frame. Horizontal stitched channels give the upholstery a structured executive appearance, while the contoured back panel and high-back shape provide support from the lumbar region toward the lower shoulders. The cantilevered arm frames visually lighten the design and carry padded black arm pads that complement the five-star chrome base and black twin-wheel casters. Its overall dimensions are 590 by 620 by 1010 mm, with a 540 mm clear width between armrests. The seat is upholstered in black smooth material with horizontal stitching and includes a 90 mm finished cushion over an 80 mm high-resilience polyurethane foam core with a 45 kg/m3 density target. The back uses 70 mm padding over a 50 mm molded polyurethane cushion with a 35 kg/m3 density target. Internal construction includes a molded plywood or reinforced composite seat carrier, a steel or reinforced polymer back frame, a black steel multi-position tilt mechanism, and a 50 mm Class 4 chrome-plated steel gas-lift cylinder. The chair weighs 18 kg, accommodates one user, is recommended for users up to 150 kg and 190 cm tall, and uses a five-star base with a 1136 kg static-load reference. Its casters have a 100,000-cycle rolling durability reference. Functionality centers on adaptable desk support. A visible side lever controls 100 mm of pneumatic height adjustment to a 540 mm seat height. The back offers 118 degrees of tilt travel with multi-position locking, while a rotary tension knob adjusts resistance to user weight and recline force. The fixed armrests provide 230 mm of forearm support without width or height adjustment, and five 60 mm twin-wheel casters enable omnidirectional movement on hard floors or carpet. The ribbed back channels are designed to flex and distribute contact across separate padded panels. This model suits manager offices, open-plan workstations, conference rooms, reception or consulting spaces, and dedicated home offices with standard 760 mm desks. For procurement, confirm the exact upholstery grade through the supplier bill of materials and select optional soft casters for wood, tile, or carpet. Each set ships in two cartons, with a packaged gross weight of 23 kg, a reference volume of 0.26 cubic meters, and an indicative assembly time of 40 minutes. A 20GP container can hold 135 sets at 85 percent space utilization. The unbranded EOA-HB-RIB-01 is best specified where a consistent black-and-chrome executive look is needed across multiple work or meeting settings.

Ribbed High-Back Swivel Executive Office Chair Specifications
