Two-Tone High-Back Executive Swivel Office Chair Specifications

EXEC-TT72-PU-CHR

代码:4K6DYRV1
获取供应商报价
2026-08-13 10:22人气: 48
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

EXEC-TT72-PU-CHR

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

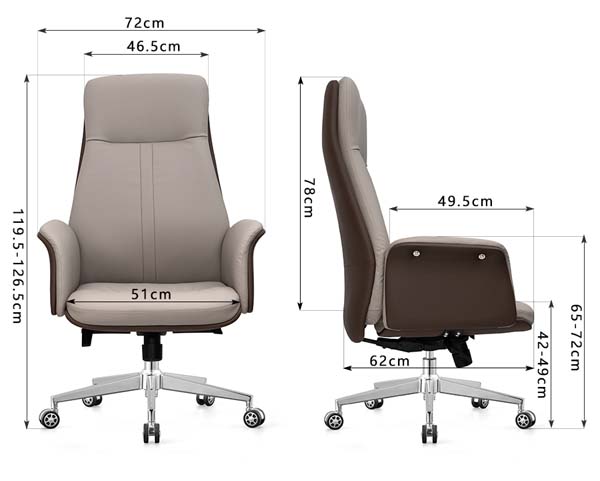

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions720 x 620 x 1265 mm
Seat width510 mm
Seat depth495 mm
Adjustable seat height490 mm
Backrest height780 mm
Armrest height from floor720 mm
Backrest inner width465 mm
Five-star base radius350 mm
Caster diameter60 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended user weight capacity159 kg
Static base load rating1136 kg
Net chair weight22 kg
Caster rolling durability40000 cycles
Tilt mechanism lock angle18 degrees
Gas lift stroke70 mm
Warranty period3 years
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholstery1.2 mm thick two-tone PU leather
Seat cushion foam45 kg/m³ high-density polyurethane foam, 80 mm thick
Backrest foam35 kg/m³ shaped polyurethane foam, 60 mm thick contoured padding
ArmrestsPU-padded tops with hard brown outer shell, 40 mm thick padding
Five-star base2.0 mm thick polished chrome-plated steel, 700 mm diameter
Gas liftChrome-plated Class 3 steel gas lift, 50 mm outer diameter
Tilt mechanism3.0 mm thick steel plate under-seat mechanism with tension control
Casters60 mm diameter dual-wheel polyurethane casters with metal bearings
Seam construction8 mm stitch pitch matching thread for upholstery seams
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Five-star Base Material ThicknessMetal base wall 3.5 mm; diameter 700 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

360-degree swivel rotationFull rotation enabled by central gas lift and base assembly
Pneumatic seat height adjustment70 mm vertical stroke, adjusted by side lever under seat
Recline tilt functionLockable 18-degree back tilt with adjustable tension control
Caster mobilityDual-wheel PU casters roll on hard floors and low-pile carpet
Contoured lumbar supportShaped backrest foam provides built-in mid-back support
Armrest supportFixed padded armrests positioned at 720 mm max height for desk use
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Executive private officeFits standard 760 mm height executive desks for daily managerial use
Home office workspaceTwo-tone neutral upholstery complements modern residential office interiors
Conference meeting roomsFormal upholstered design suits long-duration boardroom seating
Managerial workstationsSwivel and height adjustment supports multitasking across desk surfaces
Reception VIP areasPolished chrome base and tailored upholstery present a professional guest impression
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Applies to office chair dimensional safety and ergonomic requirements
EN 1335-2:2018Applies to office chair strength, durability and stability requirements
EN 1022:2018Applies to seating stability testing for all office chair types
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Applies to general-purpose office chair performance and durability requirements
BIFMA X5.1 Clause 17Applies to caster rolling and durability performance testing
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Applies to office chair dimensional stability and strength testing
GB/T 10357.3-2013Applies to chair backrest, seat and armrest durability testing
GB 18584-2001Applies to formaldehyde and heavy metal limits for upholstered furniture
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Applies to office chair dimensional stability and strength testing;
2. GB/T 10357.3-2013:Applies to chair backrest, seat and armrest durability testing;
3. GB 18584-2001:Applies to formaldehyde and heavy metal limits for upholstered furniture;
最终交付参数、检测报告和验收标准以双方采购合同为准。
