High-Back Grey Executive Office Chair with Decorative Armrest Accent Panels Specifications

EXEC-GR-ARM01

代码:7KPTUUV1
获取供应商报价
2026-08-28 10:55人气: 19
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

EXEC-GR-ARM01

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions680 x 770 x 1300 mm
Seat height adjustment range65 mm
Seat height at highest position505 mm
Seat width510 mm
Seat depth445 mm
Backrest padding thickness60 mm
Seat cushion padding thickness50 mm
Five-star base radius350 mm
Caster diameter65 mm
Armrest height above seat220 mm
Finished Seat Cushion Thickness90 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended user weight capacity150 kg
Five-star base static load rating1136 kg
Upholstery abrasion resistance50000 cycles
Foam density (seat/back)55 kg/m³
Foam rebound rate60%
Caster rolling durability100000 cycles
Gas lift service cycles100000 cycles
Net weight22 kg
Warranty period (normal use)10 years
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholsteryGrey wear-resistant PU leather (leatherette)
Seat cushion core55 kg/m³ high-density molded polyurethane foam
Backrest cushion core40 kg/m³ high-density cut polyurethane foam
Internal seat frame15 mm thick plywood with solid wood reinforcement
Internal back frame1.2 mm thick welded steel tube
Five-star base2.0 mm thick polished chrome-plated steel
Armrest structurePU-padded top with brown veneer and metal grille accent panel
Caster materialDual-wheel PU tread with polypropylene hub
Gas lift cylinderChrome-plated Class 4 steel gas lift, 70 mm tube diameter
Control mechanism2.5 mm thick steel plate multi-lock synchro tilt mechanism
Upholstery stitching8 stitches per inch visible matching-thread vertical seams
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

360-degree swivel rotationFull 360° horizontal rotation enabled by central swivel joint under seat
Pneumatic seat height adjustmentOne-touch lever-operated height adjustment with 65 mm vertical travel
Synchro tilt reclineSynchronized seat and back recline with 5-position tilt lock
Tilt tension adjustmentUser-adjustable tension knob to match user weight for recline resistance
Dual-wheel caster mobilitySmooth rolling on hard floors and low-pile carpet, 360° caster swivel
Integrated headrest supportContoured fixed headrest for cervical support during upright and reclined positions
Fixed padded armrestsWide upholstered armrests for forearm support with decorative side accent panels
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Executive private officeSuits dedicated manager/executive workspaces for daily 8+ hour seated use
Director and board meeting roomsSuitable for formal meeting spaces for extended discussion sessions
High-end home officeFits premium home workspaces for remote work and executive home use
Corporate reception VIP areasAppropriate for distinguished visitor seating in reception or meeting areas
Executive workstation podsCompatible with standard height executive desks and L-shaped workstations
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Applies to office chair dimensional safety and ergonomic performance requirements
EN 1335-2:2018Applies to office chair structural strength, durability and stability testing
EN 1022:2018Applies to furniture chair stability determination for seating products
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Applies to general-purpose office chair strength, durability and safety testing
ANSI/BIFMA X5.11-2015Applies to large occupant office chair load and durability requirements
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Applies to office furniture chair dimensional accuracy and stability requirements
GB 28007-2011Applies to strength and durability requirements for office chairs used in office spaces
GB/T 19995.1-2005Applies to upholstered furniture leather/PU surface performance testing
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Applies to office furniture chair dimensional accuracy and stability requirements;
2. GB 28007-2011:Applies to strength and durability requirements for office chairs used in office spaces;
3. GB/T 19995.1-2005:Applies to upholstered furniture leather/PU surface performance testing;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · EXEC-GR-ARM01

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · EXEC-GR-ARM01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EXEC-GR-ARM01打开导出工具

页面快速操作

发布采购询价

产品描述

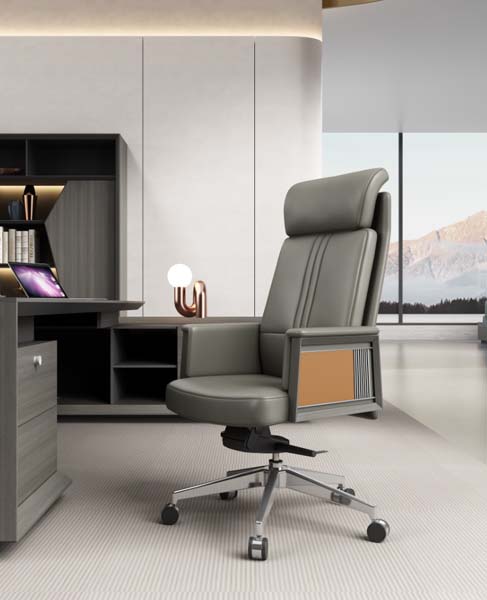

This unbranded high-back grey executive office chair (model EXEC-GR-ARM01) delivers a polished, professional aesthetic anchored by its tailored grey upholstered form. The tall, contoured back integrates a fixed, shaped headrest for continuous cervical support, paired with wide fixed padded armrests distinguished by brown veneer and metal grille accent panels that add subtle decorative contrast to the neutral grey seating. Supported by a polished chrome five-star base, the chair’s streamlined silhouette balances formal executive styling with approachable comfort for both work-focused and reception settings. Built for long-term durability, the chair features grey wear-resistant PU leather upholstery over high-density foam cores: a 55 kg/m³ molded polyurethane seat cushion and 40 kg/m³ cut polyurethane back cushion, secured to internal frames made of solid wood-reinforced plywood for the seat and welded steel tube for the back. The 2.0 mm thick polished chrome-plated steel five-star base holds dual-wheel casters with PU treads and polypropylene hubs, paired with a Class 4 chrome-plated steel gas lift. Key functional features include full 360-degree horizontal swivel, one-touch pneumatic seat height adjustment, synchronized seat and back recline with five locking positions, user-adjustable tilt tension to match individual weight preferences, and smooth caster mobility suitable for hard floors and low-pile carpet. The fixed armrests offer consistent forearm support throughout work and recline positions. This chair fits a wide range of premium commercial and residential spaces, including private executive offices for daily extended seated use, formal director and board meeting rooms, high-end home offices for remote executive work, corporate VIP reception areas, and standard executive workstation pods paired with 2.4 m executive desks. For procurement planning, note each unit ships in two cartons, requires 40 minutes of assembly per set, and is packaged at 23 kg total gross weight per set. The chair supports a recommended user weight capacity of 150 kg, with upholstery tested to 50000 abrasion cycles, casters and gas lift rated for 100000 service cycles, and the five-star base carrying a static load rating of 1136 kg to support reliable long-term use. The fixed design of the headrest and armrests also ensures consistent structural stability over repeated daily use, without adjustment mechanisms that may require additional maintenance over time.
