基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源:工厂资料结构化字段,最终以实测值为准
| 产品外部尺寸(宽 × 深 × 高) | 680 × 720 × 1280 mm | |
|---|---|---|
| Seat width | 520 mm | |
| Seat depth | 500 mm | |
| Seat height range | 540 mm | |
| Backrest height | 780 mm | |
| Backrest width | 500 mm | |
| Armrest height from seat | 220 mm | |
| Armrest pad dimensions | 260 x 70 mm | |
| 5-star base diameter | 700 mm | |
| Caster diameter | 60 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源:产品性能数据,采购前请核对具体测试口径
| Recommended weight capacity | 150 kg | |
|---|---|---|
| Chair net weight range | 28 kg | |
| Seat foam density | 45 kg/m³ | |
| Backrest foam density | 35 kg/m³ | |
| Gas lift class rating | Class 4 | |
| Caster rolling durability | 100000 cycles | |
| Armrest static load capacity | 100 kg | |
| Recommended static weight capacity | 150 kg | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源:以工厂材质清单与验货报告为准

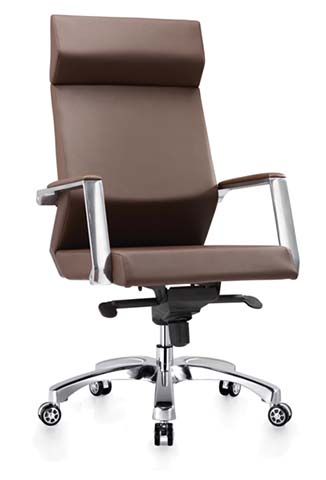

| Seat and back upholstery | Brown smooth leather cover with stitched edges | |
|---|---|---|
| Seat and back padding | Polyurethane foam padding of graduated thickness | |
| Internal seat frame | Plywood or steel internal support frame | |
| Armrest structure | Polished chrome-plated square steel tube frame with matching leather padded top | |
| Base structure | Polished chrome-plated die-cast aluminum 5-star base | |
| Height adjustment mechanism | Black painted steel multi-function tilt mechanism + chromed steel gas lift cylinder | |
| Casters | Black polyurethane wheels with chrome-plated fork housing | |
| Stitching and trim | Uniform perimeter stitching on seat, backrest and arm pads | |
| Seat, backrest and headrest upholstery | Brown smooth leather cover with precision perimeter stitching | |
| Seat and backrest padding | Graded-thickness polyurethane foam filler with contoured molding | |
| Internal seat and back frame | Plywood-reinforced steel internal support frame | |
| Height adjustment mechanism plate | Black powder-coated steel multi-function tilt mechanism chassis |
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源:功能配置参数,以供应商正式规格为准
| Seat height adjustment | Pneumatic height adjustment via right-side control lever with 80 mm total travel | |
|---|---|---|
| Backrest tilt and lock | Synchronous tilt mechanism with multiple locked positions and up to 13 degrees of recline | |
| Seat tilt tension adjustment | Torsion spring tension control via rotary knob under seat | |
| 360-degree swivel | Full 360-degree smooth rotation around central gas lift axis | |
| Mobility | Five dual-wheel casters enable rolling movement on hard floors and low-pile carpet | |
| Fixed padded armrests | Stationary armrests with leather-padded tops at fixed height above seat | |
| Backrest synchronous tilt with position lock | Synchronous tilt mechanism with 4 locked positions and up to 13 degrees of backrest recline | |
| 360-degree full swivel | Full 360-degree smooth rotation around central gas lift axis via integrated bearing assembly | |
| Floor mobility | Five 60 mm dual-wheel casters enable rolling movement on hard floors and low-pile carpet with low rolling resistance | |
| Fixed height arm support | Stationary armrests with leather-padded tops at fixed 220 mm elevation above seat surface | |
| Recline Angle / Lock Reference | 125° with 3 suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg |
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源:外贸报价与装柜测算参考
| Packaging configuration | 1 chair per carton, knocked down into seat-back assembly, base, gas lift and casters | |
|---|---|---|
| Carton dimensions | 820 x 650 x 480 mm | |
| Gross weight per carton | 32 kg | |
| Volume per carton | 0.256 CBM | |
| Assembly time | 30 minutes | |
| 20 ft container loading quantity | 180 units | |
| Single-person assembly time | 30 minutes | |
| 20 ft standard container loading quantity | 180 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源:依据产品结构与品类整理的推荐应用场景
| Executive and management offices | Suitable for private executive offices and manager workstations due to high-back support, premium leather appearance and ergonomic adjustment functions | |
|---|---|---|
| Boardrooms and premium meeting rooms | Suitable for boardrooms and high-end meeting rooms where formal appearance and long-session comfort are required | |
| Reception and visitor areas | Suitable for upscale reception areas and VIP visitor seating to convey professional and high-end brand image | |
| Home office workspaces | Suitable for premium home office setups combining professional ergonomics with residential-style aesthetic | |
| 8-hour daily work use | Suitable for full-time office workers requiring posture support during extended seated work hours | |
| Executive private offices | Suitable for C-suite and senior manager private offices due to high-back lumbar+head support, premium leather appearance and ergonomic adjustment functions | |
| Upscale reception and VIP areas | Suitable for upscale corporate reception areas and VIP visitor seating to convey professional and high-end brand image | |
| Full-time office workstation use | Suitable for full-time office workers requiring posture support during 8-hour daily seated work periods |
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| Office chair safety and strength | EN 1335:2020 applies to dimensional, strength and durability requirements for office work chairs | |
|---|---|---|
| Flammability of upholstered furniture | EN 1021+2 applies to cigarette and match flame resistance of upholstery materials |
北美市场采购验货参考 * ANSI/BIFMA 标准
美国及加拿大家具标准
| Office chairs standard | ANSI/BIFMA X2017 applies to general office chair performance, durability and safety tests | |
|---|---|---|
| Formaldehyde emissions | ANSI/BIFMA X7.1 applies to low-emitting office furniture systems and seating | |
| Office chairs performance standard | ANSI/BIFMA X2017 applies to general office chair performance, durability and safety tests | |
| Formaldehyde emissions for office seating | ANSI/BIFMA X7.1 applies to low-emitting office furniture systems and seating |
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| General safety for office furniture | GB 28007 applies to stability, strength and structural safety requirements for office chairs | |
|---|---|---|
| Limits of harmful substances | GB 18584 applies to formaldehyde and heavy metal limits in wooden and upholstered furniture components | |
| Limits of harmful substances for wood furniture | GB 18584 applies to formaldehyde and heavy metal limits in wooden and upholstered furniture components |
本产品须满足以下技术参数要求: 1. General safety for office furniture:GB 28007 applies to stability, strength and structural safety requirements for office chairs; 2. Limits of harmful substances:GB 18584 applies to formaldehyde and heavy metal limits in wooden and upholstered furniture components; 3. Limits of harmful substances for wood furniture:GB 18584 applies to formaldehyde and heavy metal limits in wooden and upholstered furniture components; 最终交付参数、检测报告和验收标准以双方采购合同为准。
