PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	680 × 700 × 1240 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Net weight	21 kg
Recommended user weight	150 kg
Seat static-load verification target	150 kg
Backrest static-load verification target	136 kg
Gas-lift durability target	100000 height-adjustment cycles
Caster rolling durability target	100000 cycles
Tilt mechanism durability target	300000 cycles
Recommended user height	185 cm
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Outer seat and back upholstery	Grey smooth upholstery over a contoured shell; exact leather or PU composition needs supplier BOM confirmation
Seat cushion foam	Molded polyurethane foam, 90 mm thick at center with 45 kg/m³ procurement density target
Backrest padding	Polyurethane comfort layer, 60 mm thick in lumbar and shoulder zones
Headrest padding	Integrated polyurethane pad, 80 mm thick, covered in the same grey upholstery
Integrated armrest structure	Upholstered curved arm shell with soft outer padding and supportive inner core
Inner support frame	Molded structural seat carrier with 3 mm steel mechanism-mount plate target
Central gas lift	Chrome-plated steel telescoping cylinder with black plastic trim collar
Tilt mechanism	Black painted steel multi-position mechanism with side control lever
Five-star base	Polished die-cast aluminum or chrome-finish metal base, 3 mm wall-thickness target
Casters	Black nylon or polyurethane twin-wheel casters with swivel stems
Under-seat hardware	Black steel lever, linkage and mounting brackets with powder-coated finish
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

360-degree swivel	Central gas-lift swivel enables full 360-degree rotation of seat and backrest
Height adjustment	Pneumatic lever adjusts seat height through a 100 mm lift stroke
Backrest tilt	Synchronized tilt mechanism provides recline travel to a 15-degree rear angle
Tilt lock	Multi-position lock is specified at upright, 7-degree and 15-degree recline positions
Tilt tension control	Rotary tension knob adjusts recline resistance for users up to 150 kg
Mobile movement	Five 60 mm twin-wheel casters provide omnidirectional movement on hard floors and carpet
Integrated arm support	Fixed wraparound arms provide forearm support at 220 mm above the seat
Lumbar and shoulder support	Tall contoured back provides lumbar curvature and upper-back contact without separate controls
Head and neck contact zone	Integrated padded upper section provides 170 mm vertical head-support contact
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Private executive office	Use behind a 2000 mm executive desk where the high back and polished base support a management setting
Manager workstation	Suitable for daily computer and discussion tasks at a seated desk height of 760 mm
Conference or meeting room	Use in premium meeting rooms where mobile swivel seating and formal appearance are required
Home office	Suitable for a dedicated home office with at least 800 mm rear clearance for recline and rotation
Executive reception setting	Place in senior consultation or reception offices needing upholstered visitor/manager seating
User profile	Recommended for adult office users weighing up to 150 kg and requiring upper-back support
Floor compatibility	Use on level hard floors or low-pile carpet with standard twin-wheel casters
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Office furniture safety applicability	EN 1335:2020 for office chair dimensions and safety assessment during procurement
Office chair mechanical testing	EN 1335:2018 for structural safety test requirements on seat, back and base
Office chair stability and durability	EN 1335:2020 for stability, strength and durability test methods
Upholstered furniture flammability applicability	EN 1021and EN 1021for cigarette and match ignition assessment if fabric is supplied

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

Office chair safety applicability	ANSI/BIFMA X2017for general-purpose office chair safety and engineering acceptance
Strength and durability applicability	ANSI/BIFMA X5.1 load, cycle and stability tests should be specified in supplier verification
Low-emissions procurement option	ANSI/BIFMA e2019 may be specified for furniture sustainability and emissions documentation

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Office chair safety applicability	GB/T 3326furniture dimension terminology and measurement reference for dimensional acceptance
Physical surface test applicability	GB/T 10357 furniture test methods for chair strength, durability and stability acceptance planning

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. Office chair safety applicability：GB/T 3326furniture dimension terminology and measurement reference for dimensional acceptance；
2. Physical surface test applicability：GB/T 10357 furniture test methods for chair strength, durability and stability acceptance planning；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · EXE-HB-520-GRY

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · EXE-HB-520-GRY

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EXE-HB-520-GRY打开导出工具

页面快速操作

发布采购询价

产品描述

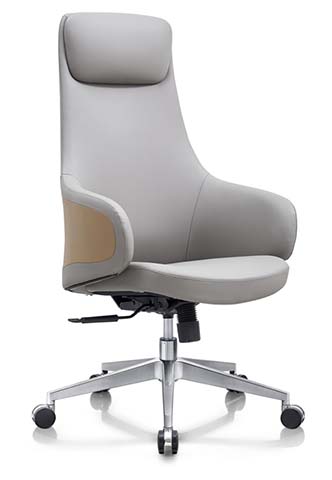

The High-Back Upholstered Executive Swivel Chair, model EXE-HB-520-GRY, presents a formal management-office look through its tall contoured back, wraparound padded armrests, grey smooth upholstery, and polished five-star base. Its coordinated grey seat and back create a streamlined silhouette, while the chrome or polished-metal base, black casters, and black tilt mechanism provide visual contrast. Overall dimensions are 680 by 700 by 1240 mm, with a 540 mm clear width between armrests and a 240 mm lumbar support zone, giving the chair a substantial executive presence suited to refined desk settings. Construction combines upholstered comfort with a structured internal assembly. The outer seat and back use grey smooth upholstery over a contoured shell; the exact leather or polyurethane composition requires confirmation in the supplier bill of materials. The seat cushion uses molded polyurethane foam at 90 mm center thickness, with a 45 kg/m3 procurement density target. Backrest padding is a polyurethane comfort layer, 60 mm thick in the lumbar and shoulder zones, and the integrated headrest pad is 80 mm thick. Curved armrests include soft outer padding over a supportive inner core. The target inner support structure includes a molded seat carrier with a 3 mm steel mechanism-mount plate, a chrome-plated telescoping gas lift, a black painted steel multi-position tilt mechanism, and a polished die-cast aluminum or chrome-finish metal base with a 3 mm wall-thickness target. Daily functions center on adjustable executive seating. The gas lift allows full 360-degree swivel and a 100 mm height-adjustment stroke through a pneumatic lever. The synchronized tilt mechanism permits backrest recline to 15 degrees, with lock positions at upright, 7 degrees, and 15 degrees. A rotary tension knob adjusts recline resistance for users up to 150 kg. Five 60 mm black twin-wheel casters support omnidirectional movement on hard floors and carpet, while fixed wraparound arms place forearm support 220 mm above the seat. The chair is appropriate for private executive offices, manager workstations, premium conference rooms, executive reception areas, and dedicated home offices. For executive use, it can be placed behind a 2000 mm desk; for standard desk work, it suits a 760 mm seated desk height. Home placement should provide at least 800 mm of rear clearance for recline and rotation. It is intended for adult office users up to 150 kg who want upper-back support. Procurement teams should note the unbranded supply model, 21 kg net weight, and verification targets including a 150 kg seat static load, 136 kg backrest static load, 100,000 gas-lift and caster cycles, and 300,000 tilt-mechanism cycles. Each set ships in two cartons with 23 kg packaged gross weight, 0.26 cubic meter total carton volume, and a 40-minute reference assembly time. A 20GP container can accommodate 135 sets at 85 percent space utilization. Buyers should confirm upholstery composition and the target base and plate specifications before finalizing orders.

High-Back Upholstered Executive Swivel Chair Specifications
