High-Back Padded Swivel Ergonomic Office Chair with Fixed Armrests Specifications

EOCHB-FA70-119

代码:HRS2A0V1
获取供应商报价
2026-08-13 11:17人气: 51
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

EOCHB-FA70-119

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

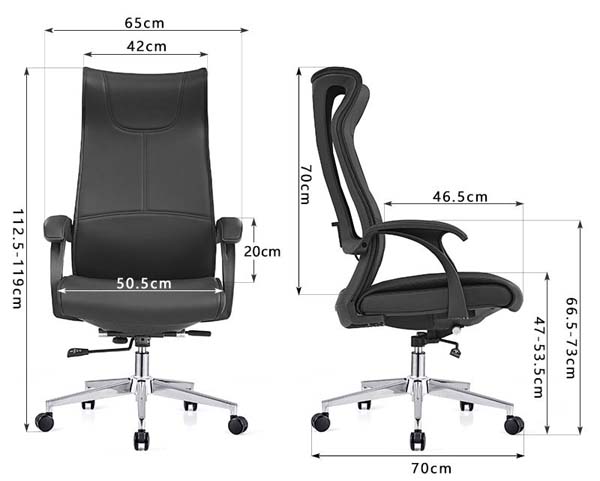

Overall dimensions (max height)650 x 465 x 1190 mm
Seat width505 mm
Backrest width420 mm
Backrest height700 mm
Five-star base diameter700 mm
Max seat height (floor to seat top)535 mm
Min seat height (floor to seat top)470 mm
Armrest height above seat200 mm
Seat depth440 mm
Armrest total width650 mm
Min overall height (lowest seat)1125 mm
Gas lift exposed stroke length65 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended user weight capacity150 kg
Net weight18 kg
Cushion foam density45 kg/m³
Cushion foam rebound rate40%
Seat foam thickness70 mm
Backrest foam thickness50 mm
Five-star base static load rating1200 kg
Maximum recline angle135°
Backrest fatigue cycle rating120000 cycles
Caster rolling abrasion rating100000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholsteryBlack PU faux leather, 1.0mm thickness
Seat cushion coreHigh-density polyurethane foam, wrapped in fabric liner
Backrest coreCurved polypropylene support frame with bonded PU foam padding
ArmrestsFixed curved polypropylene arm frames with padded top surfaces
Gas liftChrome-plated steel Class 3 pneumatic cylinder, 50mm outer diameter
Five-star base1.5mm thick chrome-plated polished steel, 5 legs
Casters50mm diameter dual-wheel black nylon non-marking casters
Tilt mechanism2.5mm thick steel plate chassis with tension adjustment
Stitching8mm stitch pitch along seat and back panel seams
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Five-star Base Material ThicknessMetal base wall 3.5 mm; diameter 700 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Height adjustmentPneumatic gas lift adjusts seat height 65mm via right-side under-seat lever
Recline functionChassis allows 135° back tilt with lockable upright position
Tilt tension controlKnob under seat adjusts recline resistance for user weight
360-degree swivelFull rotation enabled by central gas lift swivel joint
MobilityFive dual-wheel casters enable smooth rolling on hard and soft floors
Fixed arm supportCurved armrests provide 200mm elevated support above seat without height adjustment
Lumbar supportContoured mid-back padded section supports natural lumbar curve
Upholstery abrasion resistance30000 Martindale cycles, meets commercial office use durability
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Private office workstationsSuitable for individual staff desks, with height adjustment for desk heights 760 mm
Open plan office areasDurable upholstery and casters suit daily multi-user commercial office use
Home office study spacesCompact footprint fits small home work areas without excess space
Conference meeting roomsProfessional black finish and swivel function suit temporary meeting seating
Shared workspacesNon-marking casters and stain-resistant PU upholstery suit high-turnover use
Height-adjustable sit-stand desk setupsPneumatic seat height adjustment matches variable desk height positions
Reception desk seatingHigh-back support offers professional appearance for front office areas
Recommended Matching Desk Size2.4 m executive desk
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Office work chairs safety requirements, applies to structural stability and strength
EN 1335-2:2009Office work chairs test methods for strength, durability and stability
EN 1021-1:2014Upholstered furniture flammability test for cigarette ignition resistance
EN 12520:2015Furniture strength, durability and safety for general seating applications
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Office chairs general purpose standard, applies to load, durability and stability testing
ANSI/BIFMA X5.4-2020Lounge and executive seating performance requirements for high-back models
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden and upholstered furniture, applies to upholstered components
GB 18584-2001Limits formaldehyde and heavy metal emissions from furniture interior materials
GB 20210-2006Fire safety requirements for upholstered furniture in public and office spaces
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden and upholstered furniture, applies to upholstered components;
2. GB 18584-2001:Limits formaldehyde and heavy metal emissions from furniture interior materials;
3. GB 20210-2006:Fire safety requirements for upholstered furniture in public and office spaces;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · EOCHB-FA70-119

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · EOCHB-FA70-119

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EOCHB-FA70-119打开导出工具

页面快速操作

发布采购询价

产品描述

This high-back padded swivel ergonomic office chair (model EOCHB-FA119) delivers professional, supportive seating for a wide range of work environments, with a streamlined, contoured design finished in sleek black upholstery. The chair features a tall, curved high backrest paired with fixed curved armrests, set atop a polished chrome-plated five-star base fitted with smooth-rolling casters, creating a clean, professional silhouette that balances structured support and understated visual appeal. Construction prioritizes durability and long-wearing comfort across daily use. Seat and back surfaces are upholstered in 1.0mm thick black PU faux leather, stitched with consistent 8mm seam detailing for a tailored finish. Seat cushions use a high-density polyurethane foam core wrapped in a fabric liner, paired with a curved polypropylene back support frame bonded to molded foam padding; fixed polypropylene armrests include soft padded top surfaces for rested forearm support. The base is formed from thick polished chrome-plated steel, connected to a Class 3 chrome-plated steel pneumatic gas lift, steel tilt chassis, and dual-wheel non-marking black nylon casters. Core functional features support comfortable, flexible working postures. A right-side under-seat lever controls pneumatic seat height adjustment, while an under-seat knob lets users tune tilt tension to match individual preference, and the backrest reclines to a 135-degree angle with a lockable upright position. The central swivel joint enables full 360-degree rotation, and the five casters roll smoothly across both hard and soft floor surfaces without leaving scuffs. The contoured mid-back section provides targeted lumbar support aligned to the spine’s natural curve, and fixed armrests offer consistent elevated support above the seat. This chair is well suited for private office workstations, open-plan commercial office zones, home office studies, conference rooms, shared co-working spaces, and setups paired with height-adjustable sit-stand desks. When planning procurement, note that each unit ships in two cartons, with a listed assembly time per set and a packaged gross weight for shipping calculations. The design supports a recommended maximum user weight, and its durable, stain-resistant upholstery and non-marking casters hold up to regular high-turnover use, while its compact footprint fits neatly in smaller work areas without occupying excess floor space.
