首页 > 首页 > 办公桌椅家具 > 办公椅系列 > 老板大班椅 > EXEC-GRY-FR-001

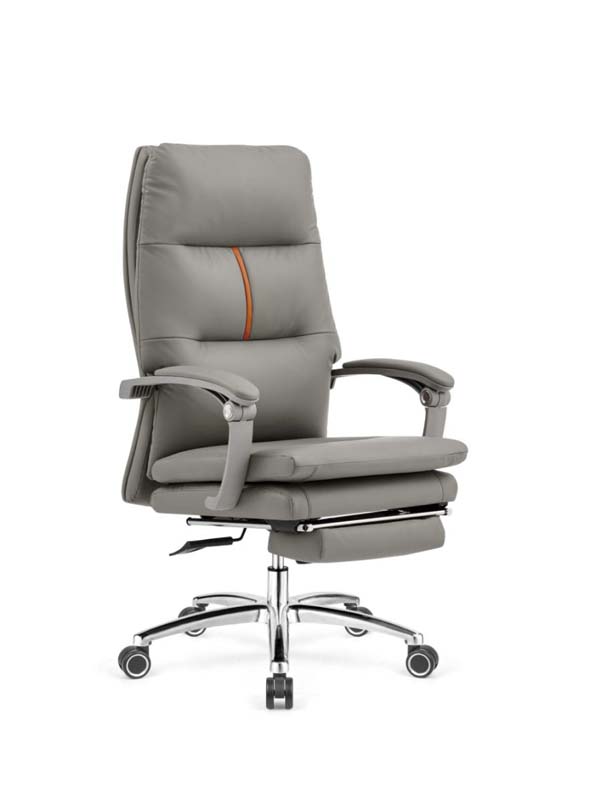

Grey High-Back Reclining Ergonomic Executive Office Chair with Retractable Footrest Specifications

EXEC-GRY-FR-001

代码:J7BSAXV1
获取供应商报价
2026-09-04 16:56人气: 9
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

EXEC-GRY-FR-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall assembled dimensions620 x 750 x 1260 mm
Five-star base diameter700 mm
Caster diameter65 mm
Seat height adjustment range570 mm
Seat width520 mm
Seat depth500 mm
Backrest height780 mm
Armrest height above seat200 mm
Retractable footrest extension length420 mm
Seat cushion thickness120 mm
Backrest padding thickness80 mm
Finished Seat Cushion Thickness90 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended maximum user weight150 kg
Net weight20 kg
Maximum recline angle135 degrees
Seat height adjustment travel100 mm
Upholstery abrasion resistance50000 cycles
Seat foam density50 kg/m³
Foam rebound rate60%
Gas lift static load rating150 kg
Warranty period3 years
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholstery1.2mm thick abrasion-resistant grey PU leather
Seat cushion core50kg/m³ high-resilience molded polyurethane foam
Backrest core40kg/m³ supportive polyurethane foam with integrated lumbar contour
Internal support frame2.0mm thick welded steel tube frame
Five-star base1.5mm thick polished chrome-plated steel
Armrest supportsChrome-plated steel with articulated adjustment joints
Armrest padsPadded PU leather matching seat upholstery
Retractable footrestPadded PU leather top with chrome-plated steel slide rails
Gas lift cylinderChrome-plated steel Class 4 gas lift
Casters65mm diameter PU dual-wheel casters with chrome accent rings
Recline mechanism3.0mm thick steel plate multi-position lock mechanism
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

360-degree swivel rotationFull swivel enabled by central gas lift and caster base
Pneumatic seat height adjustment100mm travel controlled by right-side under-seat lever
Lockable recline function135-degree maximum recline with adjustable tilt tension
Retractable padded footrest420mm slide-out extension for reclined leg support
Articulated adjustable armrestsHeight and pivot adjustment with padded support surfaces
Smooth-rolling castersDual-wheel design for carpet and hard floor mobility
Tilt tension adjustmentKnob-controlled tension matching user body weight for recline
Integrated lumbar supportContoured back padding providing mid-back ergonomic support
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

20GP container loading quantity135 units
40HQ container loading quantity343 units
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Executive private officeSuitable for manager/executive desks for 8+ hour daily work use
Home office workspaceAppropriate for dedicated home offices requiring professional comfort
Conference meeting roomsUsable for high-level meeting spaces requiring premium seating
Executive reception areasSuitable for guest seating in senior management reception zones
24-hour office environmentsRecommended for low-volume after-hours use with commercial-grade components
Adjustable height desk setupsCompatible with height-adjustable desks from 780 mm work surface height
Recommended floor surfacesSuitable for low-pile carpet, hardwood, tile and laminate floors
Recommended Matching Desk Size2.4 m executive desk
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Office furniture seating safetyEN 1335:2020
Office chair stability testEN 1022:2018
Upholstered furniture fire resistanceEN 1021:2014
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

Office chair general purpose standardANSI/BIFMA X2017
Office chair caster durabilityANSI/BIFMA X2017Clause 17
Office chair base load testANSI/BIFMA X2017Clause 10
Five-star base static load capacity1136 kg
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Office chair safety structural requirementGB/T 3326
Upholstered furniture durabilityGB/T 22792.2
Furniture harmful substance limitGB 18584
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Office chair safety structural requirement:GB/T 3326;
2. Upholstered furniture durability:GB/T 22792.2;
3. Furniture harmful substance limit:GB 18584;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · EXEC-GRY-FR-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · EXEC-GRY-FR-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EXEC-GRY-FR-001打开导出工具

页面快速操作

发布采购询价

产品描述

The Grey High-Back Reclining Ergonomic Executive Office Chair with Retractable Footrest, model EXEC-GRY-FR-001, presents a polished, professional silhouette defined by its tall contoured backrest, integrated padded armrests, and streamlined five-star base, finished in a cohesive neutral grey palette accented by bright chrome hardware. The cohesive layout balances substantial upper-body support with unobtrusive adjustability controls, creating a refined appearance suited to spaces prioritizing both presence and comfort. The chair is constructed for durable long-term use, with abrasion-resistant 1.2mm grey PU leather upholstery covering all padded contact surfaces. Its internal structure relies on a welded steel tube support frame, paired with high-resilience molded foam for the seat cushion and supportive contoured foam for the backrest, which includes an integrated lumbar shape to reduce static strain during extended sitting. The five-star base is formed from polished chrome-plated steel, fitted with smooth-rolling dual-wheel PU casters suitable for both carpet and hard flooring, while all adjustment mechanisms use chrome-plated metal hardware including a Class 4 gas lift cylinder. The retractable footrest uses a padded PU leather top mounted on chrome-plated steel slide rails, and armrests feature matching padded surfaces supported by articulated chrome-plated steel joints. Core functional features support flexible positioning for work and relaxation: full 360-degree swivel rotation, pneumatic seat height adjustment controlled by an under-seat lever, a lockable recline function reaching 135 degrees with knob-adjusted tilt tension calibrated to user weight, height and pivot adjustable armrests, and the slide-out retractable footrest that provides extended leg support when reclined. This chair is well suited for executive private offices supporting 8+ hours of daily work at manager or executive desks, dedicated home office workspaces, high-level conference rooms, senior management reception areas, and low-volume after-hours use in 24-hour office environments. It is also compatible with height-adjustable desk setups starting at a 780mm work surface height. For procurement planning, note that each unit ships in two cartons, requires 40 minutes of assembly time per set, and is supplied as an unbranded product, making it easy to align with custom interior branding schemes without pre-applied logo markings. The upholstery delivers 50000 cycles of abrasion resistance, supporting frequent regular use in high-traffic commercial settings.
