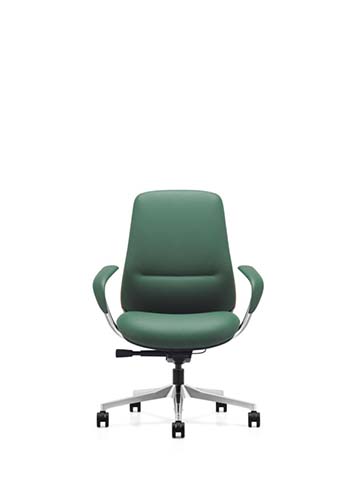

Mid-Back Green Leather Swivel Executive Office Chair Specifications

OFC-MB-GRN-520代码:P2AP9GV1

Mid-Back Green Leather Swivel Executive Office Chair,型号 OFC-MB-GRN-520,归属“老板大班椅”栏目,整体尺寸 620 × 650 × 1000 mm。材质:Green leather-look surface with stitched padded seat and back panels。产品特征:Executive,Style,Mid-Back,Structure,Swivel,Base,Five-Star,Support,Upholstered,Seat,Fixed,Armrests。本页汇总该型号 6 类产品参数及 GB / EN / ANSI/BIFMA 标准参考,支持公制与英制单位切换,目前已登记 1 家供应商,可直接发起询价。

获取供应商报价
2026-10-31 19:41人气: 1
品牌JIULONGYOUSHENG型号OFC-MB-GRN-520
产品外部尺寸(宽 × 深 × 高)620 × 650 × 1000 mmFinished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mmLumbar Support Zone Height240 mm
Clear Width Between Armrests540 mmNet weight15 kg
Recommended user weight capacity135 kgSuitable user height range1850 mm
Seat foam density45 kg/m3Back foam density35 kg/m3
Foam rebound rating40%Fabric or leather abrasion acceptance target50,000 Martindale cycles
Gas-lift durability target100,000 height-adjustment cyclesCaster rolling durability target100,000 cycles
Suggested commercial warranty5 yearsOuter upholsteryGreen leather-look surface with stitched padded seat and back panels
Seat cushion80 mm high-resilience polyurethane foam on a load-bearing seat shellBack cushion90 mm layered polyurethane foam with horizontal lumbar contour
Internal seat frame2.0 mm steel reinforcing plate beneath the plywood or molded seat shellBack support structure1.5 mm bent steel or reinforced polymer back bracket fixed to the mechanism
ArmrestsUpholstered curved pads on polished tubular steel side supportsFive-star basePolished aluminum-alloy five-star base with 2.5 mm wall section
Gas liftBlack 50 mm steel telescopic gas lift with class 3 performance targetTilt mechanismBlack steel synchronized chassis with 2.5 mm plate and side actuating lever
CastersBlack nylon twin-wheel casters with steel swivel stemsSurface finishSatin-polished metal base with matte black mechanism and caster components
Seam constructionContinuous perimeter upholstery seam at 8 stitches per 100 mmSeat height adjustmentPneumatic lift provides 80 mm travel through a 50 mm class-3 gas column
Swivel function360-degree full rotation around the central gas-lift axisTilt operationSide lever controls recline with a 15-degree backward tilt angle
Tilt lockSingle-position upright lock through the visible black under-seat leverTilt tension controlUnder-seat tension knob adjusts resistance for users up to 135 kg
MobilityFive 60 mm twin-wheel casters provide rolling movement on hard floors or low-pile carpetArm supportFixed curved armrests provide forearm support 220 mm above the seat
Lumbar supportIntegrated horizontal padded contour provides passive mid-lumbar supportSeat orientationForward-tilting rounded cushion front reduces pressure behind the knees
Base stability640 mm five-star base distributes load during swivel and reclineRecline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kgReference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per setReference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/setReference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilizationIndicative 40HQ Loading320 sets at 85% space utilization
Executive officeSuitable behind a 1800 mm executive desk where the 620 mm width preserves circulation spacePrivate manager workspaceAppropriate for daily computer, meeting, and phone tasks with passive lumbar contour and swivel access
Meeting or conference roomUsable around conference tables when seat height is adjusted to 520 mmHome officeFits compact study rooms because the 650 mm depth and fixed arms reduce overall footprint
Reception consultation areaProvides mobile visitor or consultant seating with polished base and coordinated armrest stylingProcurement configurationOrder hard-floor casters for tile or wood floors and soft-floor casters for carpet
Cleaning environmentRecommended for offices with regular dry wiping and periodic upholstery maintenanceRecommended Matching Desk Size2.4 m executive desk
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

供应商与现货

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源:工厂资料结构化字段,最终以实测值为准

产品外部尺寸(宽 × 深 × 高)620 × 650 × 1000 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源:产品性能数据,采购前请核对具体测试口径

Net weight15 kg
Recommended user weight capacity135 kg
Suitable user height range1850 mm
Seat foam density45 kg/m3
Back foam density35 kg/m3
Foam rebound rating40%
Fabric or leather abrasion acceptance target50,000 Martindale cycles
Gas-lift durability target100,000 height-adjustment cycles
Caster rolling durability target100,000 cycles
Suggested commercial warranty5 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源:以工厂材质清单与验货报告为准

Outer upholsteryGreen leather-look surface with stitched padded seat and back panels
Seat cushion80 mm high-resilience polyurethane foam on a load-bearing seat shell
Back cushion90 mm layered polyurethane foam with horizontal lumbar contour
Internal seat frame2.0 mm steel reinforcing plate beneath the plywood or molded seat shell
Back support structure1.5 mm bent steel or reinforced polymer back bracket fixed to the mechanism
ArmrestsUpholstered curved pads on polished tubular steel side supports
Five-star basePolished aluminum-alloy five-star base with 2.5 mm wall section
Gas liftBlack 50 mm steel telescopic gas lift with class 3 performance target
Tilt mechanismBlack steel synchronized chassis with 2.5 mm plate and side actuating lever
CastersBlack nylon twin-wheel casters with steel swivel stems
Surface finishSatin-polished metal base with matte black mechanism and caster components
Seam constructionContinuous perimeter upholstery seam at 8 stitches per 100 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源:功能配置参数,以供应商正式规格为准

Seat height adjustmentPneumatic lift provides 80 mm travel through a 50 mm class-3 gas column
Swivel function360-degree full rotation around the central gas-lift axis
Tilt operationSide lever controls recline with a 15-degree backward tilt angle
Tilt lockSingle-position upright lock through the visible black under-seat lever
Tilt tension controlUnder-seat tension knob adjusts resistance for users up to 135 kg
MobilityFive 60 mm twin-wheel casters provide rolling movement on hard floors or low-pile carpet
Arm supportFixed curved armrests provide forearm support 220 mm above the seat
Lumbar supportIntegrated horizontal padded contour provides passive mid-lumbar support
Seat orientationForward-tilting rounded cushion front reduces pressure behind the knees
Base stability640 mm five-star base distributes load during swivel and recline
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源:外贸报价与装柜测算参考

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源:依据产品结构与品类整理的推荐应用场景

Executive officeSuitable behind a 1800 mm executive desk where the 620 mm width preserves circulation space
Private manager workspaceAppropriate for daily computer, meeting, and phone tasks with passive lumbar contour and swivel access
Meeting or conference roomUsable around conference tables when seat height is adjusted to 520 mm
Home officeFits compact study rooms because the 650 mm depth and fixed arms reduce overall footprint
Reception consultation areaProvides mobile visitor or consultant seating with polished base and coordinated armrest styling
Procurement configurationOrder hard-floor casters for tile or wood floors and soft-floor casters for carpet
Cleaning environmentRecommended for offices with regular dry wiping and periodic upholstery maintenance
Recommended Matching Desk Size2.4 m executive desk
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1 applicabilityUse for office-chair dimensions and ergonomic geometry verification
EN 1335-2 applicabilityUse for safety requirements including strength, stability, and structural durability
EN 1335-3 applicabilityUse for test methods covering seat, back, armrest, and base durability
EN 1021-1 applicabilityUse for cigarette-ignition upholstered-furniture flammability testing
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1 applicabilityUse for office-chair safety, strength, stability, and durability acceptance in North America
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 10357.3 applicabilityUse for furniture strength and durability testing of chair seat and back
GB/T 27923 applicabilityUse for office-chair general technical requirements and quality inspection
GB 18584 applicabilityUse for limiting formaldehyde and harmful emissions from interior furniture materials
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 10357.3 applicability:Use for furniture strength and durability testing of chair seat and back;
2. GB/T 27923 applicability:Use for office-chair general technical requirements and quality inspection;
3. GB 18584 applicability:Use for limiting formaldehyde and harmful emissions from interior furniture materials;
最终交付参数、检测报告和验收标准以双方采购合同为准。
