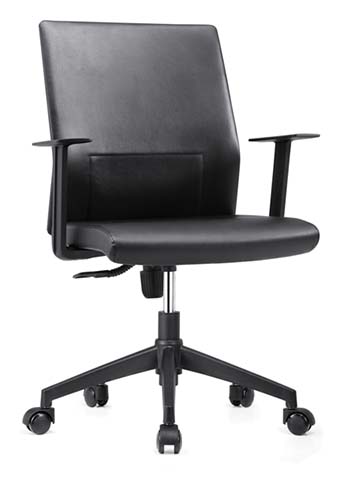

Black Mid-Back Executive Office Chair with Upholstered Seat and Back Specifications

OC-MB-001

代码:PNCZ3AV1
获取供应商报价
2026-08-05 18:01人气: 71
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

OC-MB-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions (W x D x H)650 x 620 x 1050 mm
Seat width500 x 480 mm
Seat height range540 mm
Backrest dimensions (W x H)500 x 600 mm
Backrest thickness80 mm
Seat cushion thickness90 mm
Armrest height from seat200 mm
Armrest pad size250 x 80 mm
5-star base diameter620 mm
Caster diameter50 mm
Seat depth480 mm
Backrest width500 mm
Backrest height600 mm
Armrest pad length250 mm
Armrest pad width80 mm
Finished Seat Cushion Thickness90 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net weight15 kg
Recommended maximum user weight120 kg
Seat foam density45 kg/m³
Back foam density35 kg/m³
Gas lift static load rating150 kg
5-star base static load1000 kg
Caster rolling durability100000 cycles
5-star base static load rating1000 kg
Upholstery abrasion resistance20000 cycles
Backrest tilt tension adjustment range6 levels
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholsteryBlack faux leather (PVC/PU blend face with fabric backing
Seat cushion coreMolded high-density polyurethane foam
Internal seat framePlywood + steel reinforcing frame
Armrest assemblyBlack hard plastic (PP) arm structure with integrated top pad
Gas lift cylinderChrome-plated steel gas spring
5-star baseBlack nylon (PA) reinforced with glass fiber
CastersBlack polyurethane (PU) tread with plastic housing
Tilt mechanismBlack steel synchro-tilt plate
StitchingSynthetic thread upholstery stitching
Backrest cushion coreMolded medium-density polyurethane foam with integrated lumbar pad, contoured shape
Upholstery stitchingHigh-strength polyester thread lock-stitch construction, 5 stitches per cm
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat height adjustment100 mm vertical stroke via pneumatic gas lift, operated by left-side lever
Backrest tilt12 degree backward tilt angle with lock function
360-degree swivelFull 360-degree rotation around central gas lift axis
Mobile base casters5 dual-wheel PU casters for smooth rolling on hard and carpeted floors
Lumbar supportBuilt-in padded lumbar panel
Fixed armrestsStationary T-shaped arm supports at fixed height from seat
Backrest tilt function12 degree maximum backward tilt angle with upright position lock, tension adjustable via 6-position rotary knob under seat center
360-degree swivel functionFull 360-degree continuous rotation around central gas lift axis
Mobile caster base5 dual-wheel 50 mm diameter PU casters with 360-degree swivel housings, non-marking tread
Integrated lumbar supportFixed-position padded lumbar panel on lower backrest, 80 mm thick at support point
Fixed armrest supportStationary T-shaped arm supports set 200 mm above seat surface, 250 mm long arm pads
Tilt mechanism plate width180 mm
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Packing configuration1 piece per carton, flat-pack knock-down
Carton dimensions650 x 520 x 350 mm
Gross weight per carton17 kg
Volume per carton (CBM)0.118 m³
Assembly time30 minutes
20ft container loading quantity160 pieces
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Executive office suitesSuitable for private manager and executive office rooms as primary task and guest seating
Conference and meeting roomsAppropriate for conference table seating for extended meeting attendees
Home office workstationsSuitable for home office desks for daily computer work
Reception and visitor areasWorks as visitor seating in reception and waiting areas
Open-plan workspacesCompatible with open office bench desks for regular full-time employees
Executive private officesSuitable for manager and C-suite private office suites as primary task seating
Conference meeting roomsAppropriate for conference table seating for attendees of 4 hour meetings
Corporate reception areasWorks as visitor seating in corporate reception and waiting zones
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Office furniture - Office chairs - Part 1: Dimensions - Determination of dimensions
EN 1335-2:2019Office furniture - Office chairs - Part 2: Safety requirements
EN 1022:2021Furniture - Seating - Test methods for the determination of stability of all seating
EN 1523-1:2021Furniture - Seating - Test methods for the determination of strength and durability of office chairs and office stool chairs
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Office Chairs - Tests
ANSI/BIFMA X5.5-2020Office Task Chairs - Ergonomic Guidelines
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Furniture - Seating - Test methods for determination of stability, strength and durability
GB/T 14530-2008Furniture - Office chairs - Safety requirements for flammability of upholstered parts
GB 18580-2017Formaldehyde emission limits for interior decoration materials - Wood-based panels and products
GB/T 26175-2010Office furniture - Office chairs - Mechanical and structural safety requirements
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Furniture - Seating - Test methods for determination of stability, strength and durability;
2. GB/T 14530-2008:Furniture - Office chairs - Safety requirements for flammability of upholstered parts;
3. GB 18580-2017:Formaldehyde emission limits for interior decoration materials - Wood-based panels and products;
4. GB/T 26175-2010:Office furniture - Office chairs - Mechanical and structural safety requirements;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · OC-MB-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · OC-MB-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OC-MB-001打开导出工具

页面快速操作

发布采购询价

产品描述

The GUOYOU OC-MB-001 Black Mid-Back Executive Office Chair with Upholstered Seat and Back presents a sleek, professional silhouette defined by a uniform matte black finish and clean, structured lines. The mid-rise backrest aligns with standard executive seating proportions, paired with contoured padding and neatly stitched upholstery seams for a polished, formal appearance that complements refined workspace aesthetics. The chair features fixed T-shaped armrests with flat, supportive pads, paired with a five-point star base that creates a stable, balanced footprint suited to standard desk and meeting table configurations. The chair is upholstered in smooth black faux leather with a fabric backing, stitched with high-strength polyester thread for durable seam integrity. Its seat core uses 45 kg/m³ high-density molded polyurethane foam at 90 mm thickness, while the contoured backrest uses 35 kg/m³ medium-density molded foam with an integrated 80 mm thick padded lumbar panel for targeted lower back support. The internal structure combines a bent plywood support board reinforced with a steel frame, paired with a black steel synchro-tilt mechanism, chrome-plated Class 3 gas lift, glass fiber-reinforced black nylon five-star base, and dual-wheel non-marking polyurethane casters. Fixed armrests are constructed from rigid black polypropylene with integrated padded top surfaces. Core functional features include a 100 mm vertical seat height adjustment operated by a left-side lever, reaching a maximum seat height of 540 mm, a 12-degree backrest tilt with an upright position lock and six-level tension adjustment, full 360-degree swivel rotation, and smooth-rolling casters suitable for hard flooring and low-pile carpet. The fixed integrated lumbar panel provides consistent lower back support, while stationary armrests positioned 200 mm above the seat surface offer stable forearm rest for typing or casual relaxation. The chair is suited for a wide range of professional and personal work settings, including private executive and manager offices as primary task seating, conference rooms for multi-hour meeting use, home office workstations for daily computer work, formal corporate reception areas as visitor seating, and open-plan workspaces for regular full-time employee use. Its understated, professional finish aligns with modern, elegant, and minimalist office decor schemes. For procurement, the chair ships in knock-down flat-pack configuration for efficient shipping, with a 20-foot container holding up to 160 units. Buyers should note that assembly is required, with single-person assembly taking up to 40 minutes using basic tools, and confirm final material specifications, packaging details, and component ratings with the supplier ahead of bulk order placement to align with project requirements.
