Reclining High-Back Executive Office Chair with Retractable Footrest Specifications

EXC-REC-GRY-FT-001

代码:RU51VYV1
获取供应商报价
2026-09-04 14:12人气: 7
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

EXC-REC-GRY-FT-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions (upright)650 x 650 x 1260 mm
Seat height adjustment range450 to 570 mm
Seat cushion depth520 mm
Seat cushion width530 mm
Backrest total height760 mm
5-star base diameter610 mm
Retractable footrest extension length420 mm
Fixed armrest height above seat220 mm
Caster diameter60 mm
Seat cushion thickness140 mm
Backrest padding thickness100 mm
Finished Seat Cushion Thickness90 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net weight28 kg
Maximum recommended user weight227 kg
Backrest maximum recline angle135 degrees
Gas lift performance classClass 4
5-star base static load capacity1136 kg
Caster rolling durability100000 cycles
PU upholstery abrasion resistance50000 double rubs
Seam stitch pitch8 stitches per 30mm
Component warranty period3 years
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back main upholsteryLight grey smooth PU leatherette
Side panel upholsteryDark grey textured woven fabric
Internal support frame1.5mm thick reinforced steel tube
Seat and back cushion fill45kg/m³ high-density cold-cure foam
Armrest structurePadded PU top with polished chrome trim strip
Swivel base2mm thick chrome-plated polished steel 5-star base
Caster wheels60mm diameter silent PU dual-wheel casters
Recline and height mechanism2.5mm thick steel chassis with tension adjustment
Retractable footrestChrome-finished steel slide frame with padded PU top
Upholstery stitchingHigh-tenacity polyester thread
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

360-degree swivel rotationFull rotation around central gas lift axis
Pneumatic seat height adjustment120mm vertical travel via side actuated lever
Lockable backrest recline90 to 135 degree infinite position lock
Recline tension adjustmentUser weight-adjustable tilt resistance knob
Retractable sliding footrestPull-out extension with steel slide rails
Smooth rolling mobility360-degree swivel dual casters for hard floors
Fixed padded arm supportErgonomic armrests positioned for desk typing support
Contoured lumbar supportBuilt-in padded lumbar zone integrated into backrest
Reclined overall depth (max recline + footrest out)1350 mm
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Executive private officeMatches premium aesthetic for manager and executive desk configurations
Home office workspaceRecline and footrest support work and midday rest in residential workspaces
Conference and meeting roomsProfessional appearance suitable for formal meeting and boardroom use
Managerial workstationsHigh comfort design supports 8+ hours of daily seated desk work
Nap-compatible work settingsRecline function and footrest allow short rest breaks without leaving seat
Premium reception areasPolished chrome and two-tone finish creates upscale visitor seating
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Applies to office chair dimensional, safety and strength requirements for commercial use
EN 1022:2018Applies to seating stability testing for upright and reclined positions
EN 12520:2015Applies to furniture seating strength, durability and safety performance requirements
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Applies to general-purpose office chair safety, durability and structural performance
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Applies to office chair dimensional, strength and stability testing requirements
GB/T 3324-2017Applies to general wooden and metal office furniture surface quality requirements
GB/T 10357.3-2013Applies to chair mechanical strength and durability test methods for office seating
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Applies to office chair dimensional, strength and stability testing requirements;
2. GB/T 3324-2017:Applies to general wooden and metal office furniture surface quality requirements;
3. GB/T 10357.3-2013:Applies to chair mechanical strength and durability test methods for office seating;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · EXC-REC-GRY-FT-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · EXC-REC-GRY-FT-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EXC-REC-GRY-FT-001打开导出工具

页面快速操作

发布采购询价

产品描述

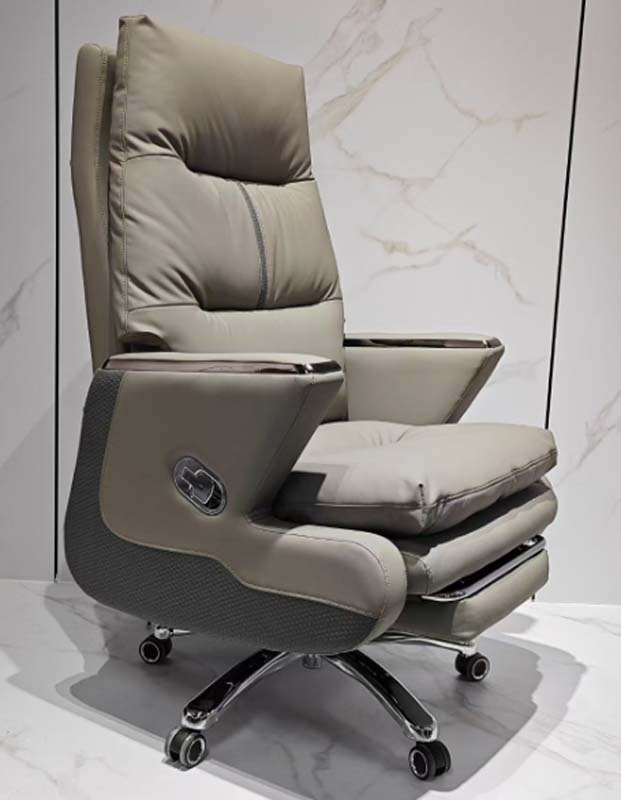

This Reclining High-Back Executive Office Chair with Retractable Footrest, model EXC-REC-GRY-FT-001, is an unbranded seating solution designed for premium work environments, featuring a refined two-tone visual profile that blends polished metallic accents with soft, neutral upholstery. The chair’s upright silhouette stands at 650 x 650 x 1260 mm, anchored by a 610 mm diameter chrome-plated 5-star base that creates a stable, balanced footprint. Smooth light grey PU leatherette covers the seat and high backrest, contrasted by dark grey textured woven fabric on the side panels, with polished chrome trim accenting the fixed padded armrests and structural hardware for a crisp, professional finish. Built for long-term durability, the chair uses a 1.5mm thick reinforced steel internal frame paired with a 2.5mm thick steel chassis for recline and height adjustment, mounted to a 2mm thick polished steel 5-star base. Seating surfaces are filled with 45kg/m³ high-density cold-cure foam, with armrests topped in padded PU and the retractable footrest featuring a padded PU surface over a chrome-finished steel slide frame. The 60mm diameter silent PU dual-wheel casters attach to the base, with all hardware finished in polished chrome to resist visible wear. The PU leatherette delivers 50000 double rubs of abrasion resistance, the casters hold up to 100000 rolling cycles, the base supports 1136kg static load, and the Class 4 gas lift is rated for a maximum recommended user weight of 227 kg, with the chair itself weighing 28 kg net. Core functional features support both focused work and short rest: the chair offers full 360-degree swivel around the central gas lift axis, pneumatic seat height adjustment with 120mm vertical travel to a maximum seat height of 570 mm, lockable backrest recline from 90 to 135 degrees with infinite position locking, user-adjustable recline tension to match individual weight, a 420 mm extension retractable sliding footrest, and smooth-rolling casters optimized for hard floor surfaces. The fixed armrests sit 220 mm above the seat, positioned to support neutral arm posture during typing, while the 520 mm deep, 530 mm wide seat and 760 mm tall backrest deliver full upper body support for 8+ hours of daily seated work. This chair is suited for executive private offices paired with premium manager desks, home office workspaces supporting both work and midday rest, formal conference and boardrooms, high-use managerial workstations, nap-compatible work settings that allow short in-seat breaks, and upscale reception areas seeking polished visitor seating. For procurement, note that each unit ships as one set across two cartons, with 40 minutes of assembly time required per unit. Packaged sets have a gross weight of 23 kg and carton volume of 0.26 m³, supporting 135 set loads in a 20GP container at 85% space utilization for large-scale orders.
