High-Back Walnut Bentwood Faux Leather Executive Office Chair Specifications

EOB-WB700-CH

代码:W78YRFV1
获取供应商报价
2026-08-13 11:46人气: 58
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

EOB-WB700-CH

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

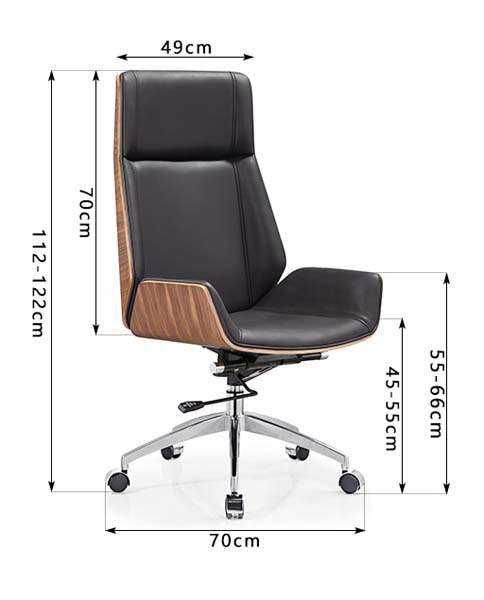

Overall dimensions700 x 690 x 1220 mm
Backrest width490 mm
Backrest height700 mm
5-star base caster spread diameter700 mm
Maximum seat height (floor to seat top)550 mm
Minimum seat height (floor to seat top)450 mm
Seat depth490 mm
Maximum total chair height1220 mm
Minimum total chair height1120 mm
Gas lift exposed stroke length100 mm
Caster wheel diameter50 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended maximum user weight136 kg
Net chair weight20 kg
Gas lift rated cycle life300000 cycles
Tilt recline maximum angle135 degrees
Caster rolling durability rating40000 cycles
Seat foam density45 kg/m³
Back foam thickness60 mm
Seat foam thickness80 mm
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholstery1.2mm thick black PU faux leather, wear-resistant, waterproof
Seat cushion coreHigh-density polyurethane foam, 45kg/m³ density, 40% rebound
Backrest cushion coreHigh-density polyurethane foam, 40kg/m³ density, 45% rebound
Back side frame12mm thick bent plywood with walnut wood veneer finish, curved profile
5-star base2.0mm thick chrome-plated polished steel, welded leg construction
Gas lift cylinder50mm diameter Class 3 steel pneumatic cylinder, chrome finish
Tilt mechanism chassis3.0mm thick stamped steel plate, black powder-coated finish
Caster wheels50mm diameter black nylon twin-wheel casters, soft tread for hard floors
Internal support frame15mm thick plywood seat pan, steel mounting brackets
Stitching details8mm seam pitch, matched black thread, edge-bound upholstery
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Pneumatic seat height adjustment100mm vertical travel via side lever, locks at any height within range
360-degree swivel rotationFull rotational movement around gas lift axis for multi-directional access
Tilt and rock functionUp to 135° backward recline with adjustable tension control knob
Tilt lock mechanismLocks upright position for focused desk work, unlocks for relaxed recline
Smooth caster mobilityTwin-wheel casters roll on hard floors and low-pile carpet without marking
Armless open side designNo protruding armrests allows tucking fully under standard 720mm height desks
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Executive private officeSleek modern aesthetic fits professional management workspaces, supports all-day desk work
Home office workspaceCompact armless design suits residential work areas, tucks neatly under desks when not in use
Meeting and conference roomsPolished walnut and black finish coordinates with modern boardroom furniture for visitor seating
Co-working open officesDurable construction and neutral colorway fits shared flexible workstations, easy to move between desks
Design studio environmentsMid-century modern bentwood aesthetic complements creative workspaces, supports extended seated design tasks
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020 Office furniture - Office work chairs - DimensionsApplicable dimensional standard for ergonomic desk chair fit
EN 1335-2:2018 Office furniture - Office work chairs - Safety requirementsApplicable safety standard covering structural integrity and stability
EN 1335-3:2009 Office furniture - Office work chairs - Test methodsApplicable test methodology for verifying safety and performance
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017 Office Chairs - General PurposeApplicable North American standard for strength, durability and stability requirements
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 10357.2-2013 Furniture mechanical test: Chair and stool stabilityApplicable stability test standard for evaluating backward/sideways tip resistance
GB/T 10357.3-2013 Furniture mechanical test: Chair and stool strength/durabilityApplicable test standard for seat, backrest and leg load cycle performance
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 10357.2-2013 Furniture mechanical test: Chair and stool stability:Applicable stability test standard for evaluating backward/sideways tip resistance;
2. GB/T 10357.3-2013 Furniture mechanical test: Chair and stool strength/durability:Applicable test standard for seat, backrest and leg load cycle performance;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · EOB-WB700-CH

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · EOB-WB700-CH

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EOB-WB700-CH打开导出工具

页面快速操作

发布采购询价

产品描述

The High-Back Walnut Bentwood Faux Leather Executive Office Chair, model EOB-WB700-CH, features a sleek modern silhouette defined by a smoothly curved walnut veneer bentwood frame that wraps the tall backrest, paired with matte black faux leather upholstery and a polished chrome five-star base for a refined, mid-century-inspired professional look. Its armless, open-side profile creates a streamlined visual footprint that integrates seamlessly with coordinated desk setups without bulky protruding elements. The chair’s frame and supporting structures are engineered for consistent long-term use: the back frame uses 12mm bent plywood finished with walnut veneer, the seat pan rests on 15mm plywood secured with steel mounting brackets, and the 2mm thick chrome-plated steel five-star base uses welded leg construction for stable support. Upholstery consists of 1.2mm thick wear-resistant, waterproof black PU faux leather, fitted over high-density polyurethane foam cushions; the seat core uses 45kg/m³ density foam with 40% rebound, while the backrest uses 40kg/m³ density foam with 45% rebound and 60mm thickness for cushioned support. Moving components include a 50mm diameter Class 3 chrome-finished steel pneumatic gas lift, 3mm thick black powder-coated stamped steel tilt chassis, and 50mm diameter black nylon twin-wheel casters with soft treads designed to avoid marking floor surfaces. For daily functionality, the chair supports 100mm of pneumatic seat height adjustment via a side lever, locking at any point across its travel range, alongside full 360-degree swivel rotation for easy multi-directional access. Its tilt mechanism allows up to 135 degrees of backward recline with adjustable tension control, and includes a lock to secure the chair in an upright position for focused work, plus three suggested lock positions including a 125-degree recline for relaxed postures. The casters roll smoothly across hard floors and low-pile carpet, and the armless design lets the chair tuck fully under standard 720mm height desks to save space when not in use. It supports a maximum user weight of 136kg, with tested component durability including 300,000 gas lift cycles and 40,000 caster rolling cycles. This chair is well suited for executive private offices, paired with 2.4m executive desks, as well as home office workspaces, modern meeting and conference rooms, co-working open offices, and design studio environments, with its neutral walnut and black finish complementing a range of professional and creative interior palettes. For procurement planning, note that each unit ships in two cartons with a packaged gross weight of 23kg, requires 40 minutes of assembly per set, and fits 135 units in a 20GP container at 85% space utilization. The chair’s overall dimensions reach 700 x 690 x 1220mm at maximum seat height, with a 550mm maximum floor-to-seat height, 490mm backrest width and seat depth, and 700mm caster spread diameter for stable footing across flat work surfaces.
