PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	680 × 700 × 1260 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Recommended user weight capacity	150 kg
Net weight	19 kg
Back static support load	136 kg
Seat impact endurance	100,000 cycles
Caster rolling durability	100,000 cycles
Gas-lift rated vertical load	150 kg
Tilt mechanism cyclic rating	100,000 cycles
Recommended occupant height range	165 to 190 cm
Suggested daily use duration	8 hours
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Seat upholstery	Gray smooth upholstery over a padded cushion, visible as a continuous soft outer layer; hide, bonded leather, or PU requires BOM confirmation
Backrest upholstery	Gray upholstered tall back with vertical center seam and diagonal lower seam lines; substrate and hide grade require supplier BOM confirmation
Cushion foam	Molded high-resilience polyurethane seat foam at 80 mm thickness and 45 kg/m3 density; back foam at 60 mm and 35 kg/m3
Internal seat support	15 mm molded plywood or 1.2 mm steel seat plate bonded to the cushion support, selected for 150 kg user capacity
Back internal frame	20 mm contoured plywood or 1.0 mm tubular steel back frame with molded foam support
Armrest frame	Polished aluminum or chrome-plated steel open-loop frame with rectangular contact pads and diagonal braces
Gas lift	50 mm chrome-finished steel telescopic gas cylinder, selected as Class 4 with 100 mm travel
Five-star base	Polished aluminum alloy five-star base with 2.5 mm nominal wall section and five caster sockets
Tilt mechanism	Black powder-coated steel synchro-tilt mechanism with welded mounting plate and lever contacts
Casters	Black polyurethane twin-wheel casters with steel bearing pins and 60 mm wheel diameter
Surface finish	Bright polished or chrome-plated metal finish on arms, base, and lift with black wear components
Seam construction	Tone-on-tailored stitching at 8 mm seam pitch along the center back and lower contour seams

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Height adjustment	Pneumatic seat-height adjustment through 100 mm using a right-side lever and Class 4 gas cylinder
Swivel movement	360-degree swivel around the central gas lift for workstation access without moving the base
Recline movement	Synchro-tilt back recline through 18 degrees with coordinated seat movement and upright lock position
Tilt tension control	Rotary tension knob adjusts back-resistance for users up to 150 kg
Mobility	Five twin-wheel casters provide omnidirectional movement on hard floors and chair mats
Arm support	Fixed polished loop arms transfer load through side brackets and provide 230 mm elbow support height
Lumbar and upper-back support	Contoured high back provides continuous lumbar, thoracic, and upper-shoulder support without a separate removable headrest
Seating access	Padded waterfall seat front reduces thigh pressure and leaves 30 mm rear setback from the arm post
Stability	Five-star radial base distributes recline and lateral loads across five floor contact points
Tilt mechanism footprint	220 x 180 x 70 mm
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Executive office	Suitable for directors and managers who need high-back support, polished metal styling, and mobile seating at a 720 to 760 mm desk
Meeting or conference room	Appropriate at conference tables for participants requiring a formal gray upholstered chair with quiet rolling mobility
Reception or leadership lounge	Can be used behind reception desks or in formal meeting areas with hard-floor protection and upscale finishes
Home office	Suited to professional home workrooms with floor space for a 760 mm swivel clearance and users up to 150 kg
Commercial procurement standardization	Suitable for projects requiring one high-back model across multiple offices with BIFMA- or EN-based acceptance testing
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1 applicability	Use for office chair dimensions, safety terminology, and dimensional compatibility checks
EN 1335-2 applicability	Use for safety requirements including structural integrity, stability, and mechanism reliability
EN 1335-3 applicability	Use as the test-method basis for static load, durability, impact, and caster verification
EN 1022 applicability	Use for seating stability verification when evaluating forward, rearward, and lateral tipping risk

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1 office chair safety and durability	Use X5.1 static, impact, fatigue, stability, back, arm, and caster test clauses as contract acceptance criteria
ANSI/BIFMA e3 applicability	Use e3 only when requesting sustainability documentation, recycled content, and low-emission material evidence

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 10357.3 applicability	Use for furniture strength and durability testing of chair seats and backs during procurement acceptance

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 10357.3 applicability：Use for furniture strength and durability testing of chair seats and backs during procurement acceptance；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · EXEC-HB-GRY-5P-CR

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · EXEC-HB-GRY-5P-CR

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EXEC-HB-GRY-5P-CR打开导出工具

页面快速操作

发布采购询价

产品描述

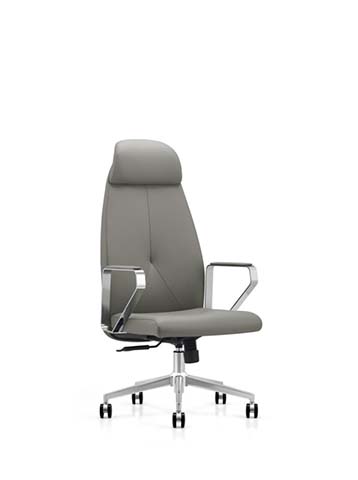

The High-Back Gray Upholstered Executive Swivel Chair presents a formal office profile with a tall, contoured back, broad padded seat, and polished open-loop armrests. The gray smooth upholstery forms a continuous soft outer layer, while the backrest is detailed with a vertical center seam and diagonal lower seam lines. Its polished five-star base and bright metal arms create a structured executive appearance, balanced by black twin-wheel casters and a black synchro-tilt mechanism beneath the seat. Overall dimensions are 680 by 700 by 1260 millimeters, with a 90 millimeter finished seat cushion, 70 millimeter backrest padding, a 240 millimeter lumbar support zone, and 540 millimeters of clear width between the armrests. Construction combines cushioned support with metal and engineered internal components. The seat uses molded high-resilience polyurethane foam over molded plywood or a steel seat plate, while the tall back uses molded foam over a contoured plywood or tubular steel frame. The armrest frame is polished aluminum or chrome-plated steel with rectangular pads and diagonal braces. The chair includes a 50 millimeter chrome-finished telescopic gas cylinder, a polished aluminum alloy five-star base, and a black powder-coated steel synchro-tilt mechanism. Exact upholstery composition, substrate, hide grade, and some material selections require bill-of-materials confirmation. Functionally, the chair supports pneumatic height adjustment through 100 millimeters with a right-side lever, 360-degree swivel movement, and an 18-degree synchro-tilt recline with coordinated seat movement and an upright lock. A rotary tension knob adjusts back resistance, fixed loop arms provide elbow support, and the contoured high back delivers continuous lumbar, thoracic, and upper-shoulder support without a separate headrest. The five twin-wheel casters enable omnidirectional movement on hard floors and chair mats. The recommended user weight capacity is 150 kilograms, with rated durability figures documented for seat impact, caster rolling, and tilt cycling. This model is suited to directors’ and managers’ offices, conference rooms, reception areas, leadership lounges, and professional home offices. It pairs with a 2.4 meter executive desk and requires room for swivel clearance. Procurement teams should allow two cartons per set, a packaged gross weight of 23 kilograms, and 40 minutes of assembly time. For standardized projects, acceptance can be aligned with BIFMA- or EN-based testing requirements, and the bill of materials should be confirmed before order placement when upholstery type and exact metal finish are contractually important.

High-Back Gray Upholstered Executive Swivel Chair Specifications
