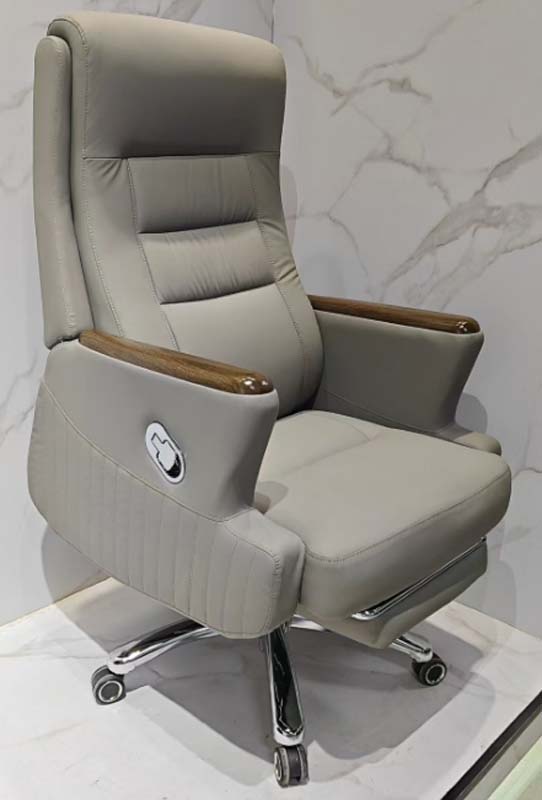

High Back Reclining Executive Office Chair with Retractable Footrest Specifications

EXCH-GY-WDARM-01

代码:XVSA20V1
获取供应商报价
2026-09-04 16:21人气: 12
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

EXCH-GY-WDARM-01

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions770 x 756 x 1270 mm
Seat width580 mm
Seat depth490 mm
Seat height range560 mm
Backrest height740 mm
Backrest width530 mm
Armrest height from seat200 mm
Five-star base diameter700 mm
Caster diameter50 mm
Seat cushion thickness120 mm
Retractable footrest extended length300 mm
Knee clearance under seat at lowest height160 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net weight22 kg
Maximum recommended user weight227 kg
Seat foam density40 kg/m³
Backrest foam density35 kg/m³
Seat foam rebound rate55%
Chrome base static load rating1136 kg
Gas lift cycle durability120000 cycles
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Upholstery1.2mm thick light grey smooth PU leather
Seat paddingHigh-density polyurethane foam, flame-retardant grade
Backrest paddingLayered contoured high-density foam with segmented lumbar support
Armrest structurePadded PU arm body with polished solid wood cap trim
Internal frame12mm plywood reinforced with 1.5mm steel support brackets
Five-star base1.8mm thick polished chrome-plated steel
CastersTwin-wheel nylon casters with rubberized rolling surface
Recline mechanism2.5mm thick steel plate linkage with chrome control lever
Footrest structureChrome-finished steel frame with padded PU top surface
Side panel detailingQuilted stitched PU leather with precise 8mm seam pitch
Gas lift cylinderClass 4 chrome-plated steel pneumatic cylinder, 50mm tube diameter
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

360-degree swivel rotationFull 360° smooth rotation enabled by central swivel joint
Pneumatic seat height adjustment100mm vertical travel via right-side under-seat lever
Recline function135° maximum backrest recline with infinite position lock
Retractable footrestPull-out extension from under seat, locks in deployed position
Tilt tension adjustmentAdjustable resistance knob to match user body weight
Smooth rolling mobilityDual-wheel casters suitable for hard floors and low-pile carpet
Fixed padded armrestsStable non-adjustable arms with wood caps for forearm support
Segmented back supportContoured lumbar, mid-back and headrest zones for ergonomic posture
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Packaging noteCorrugated carton with foam corner protection and plastic wrapping
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Executive office useSuitable for private executive offices and manager workstations
Home office setupIdeal for premium home office environments with classic styling
Conference room seatingAppropriate for high-end boardroom and meeting room applications
Commercial reception areasSuitable for VIP reception and executive waiting zones
Height compatibilityDesigned for users 190 cm tall with adjustable seat height
Recommended desk pairingPairs with 760 mm height executive desks for proper ergonomics
Color availabilityAvailable in light grey, brown and black finish options
Recommended Matching Desk Size2.4 m executive desk
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Office work chair dimensional safety and performance requirements
EN 1335-2:2018Office chair strength, durability and stability test methods
EN 1022:2018Furniture seating stability determination test standard
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017General purpose office chairs safety and performance standard
Caster rolling durability40000 cycles
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture components including arm caps
GB 18584-2001Limit of harmful substances for interior decoration wood-based furniture materials
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture components including arm caps;
2. GB 18584-2001:Limit of harmful substances for interior decoration wood-based furniture materials;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · EXCH-GY-WDARM-01

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · EXCH-GY-WDARM-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EXCH-GY-WDARM-01打开导出工具

页面快速操作

发布采购询价

产品描述

The KANAITE High Back Reclining Executive Office Chair with Retractable Footrest, model EXCH-GY-WDARM-01, presents a polished, classic executive silhouette finished in smooth light grey PU leather, designed to balance formal professional aesthetics with long-sitting comfort. Its structured high-back form aligns with premium office decor, with fixed padded armrests capped in polished solid wood that add a refined, warm contrast to the cool chrome of its five-star base and control hardware. The chair sits on a wide, stable five-star base fitted with twin-wheel casters, creating a balanced, open layout that fits seamlessly alongside standard executive desk setups without overwhelming surrounding space. Constructed for durable daily use, the chair is upholstered in 1.2mm thick light grey smooth PU leather, with seat padding made of flame-retardant high-density polyurethane foam, and a layered contoured high-density foam backrest with built-in segmented lumbar support. Its internal frame uses 12mm plywood reinforced with 1.5mm steel support brackets, paired with a 1.8mm thick polished chrome-plated steel five-star base, 2.5mm thick steel plate recline linkage, and chrome-finished steel retractable footrest frame topped with padded PU. Armrests feature a padded PU body with polished solid wood cap trim, while casters use a rubberized rolling surface to protect flooring. All performance specifications are engineered for consistent long-term use, including weight ratings, foam density and rebound metrics, gas lift durability, and static load capacity for the base. Core functional features support flexible, comfortable use across long work sessions: full 360-degree smooth swivel rotation, pneumatic seat height adjustment with 100mm vertical travel controlled by an under-seat lever, 135-degree maximum backrest recline with infinite position lock, a pull-out retractable footrest that locks when deployed, adjustable tilt tension to match user weight, and smooth rolling mobility suitable for hard floors and low-pile carpet. The fixed padded armrests provide stable forearm support without added adjustment complexity. This chair is suited for private executive offices, manager workstations, premium home office setups, high-end boardrooms and meeting spaces, as well as VIP reception and executive waiting zones. It is designed to accommodate users up to 190cm tall, and pairs optimally with 760mm height executive desks for proper ergonomic alignment. For procurement, note that each set ships in two corrugated cartons with foam corner protection and plastic wrapping, with a reference assembly time of 40 minutes per unit, packaged gross weight of 23kg per set, and total carton volume of 0.26 cubic meters per set to support accurate logistics and installation planning.
