Mesh Back Sled Base Conference Chair with Fixed Arms Specifications

MC-SB47-MESH

代码:1YVUM8V1
获取供应商报价
2026-08-12 17:34人气: 51
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

MC-SB47-MESH

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

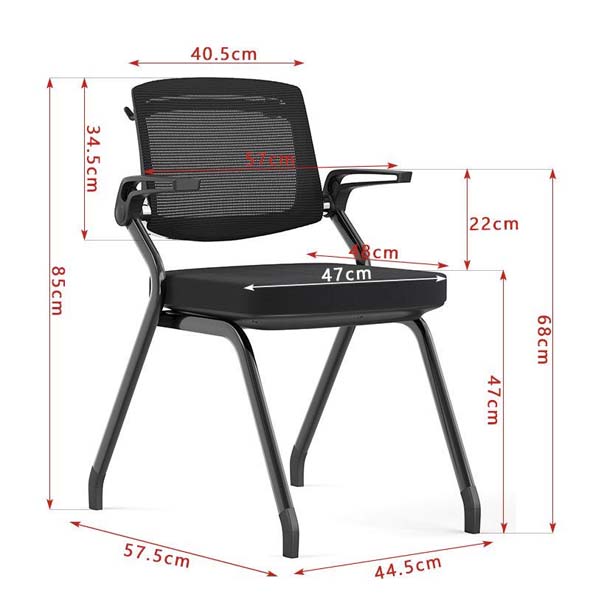

Overall dimensions570 x 575 x 850 mm
Seat width480 mm
Seat depth470 mm
Seat height from floor470 mm
Backrest width405 mm
Backrest height345 mm
Armrest height above seat220 mm
Armrest total span width570 mm
Base leg width445 mm
Seat cushion thickness30 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net weight per chair10 kg
Recommended static load capacity136 kg
Seat foam density65 kg/m³
Mesh abrasion resistance50000 cycles
Seat foam rebound rate45%
Frame steel tube wall thickness1.5 mm
Warranty period3 years
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest upholsteryBreathable black nylon mesh
Back support frame30% glass-filled polypropylene
Seat coreContoured plywood inner shell
Seat paddingHigh-density molded polyurethane foam
Seat upholsteryBlack breathable mesh fabric
ArmrestsFixed integrated glass-filled polypropylene
Leg frameBlack powder-coated steel cantilever sled
Floor glidesInjection-molded polypropylene anti-tip feet
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness2.5 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Movement mechanismFixed non-swivel, non-reclining static structure
Height adjustmentNo gas lift or seat height adjustment function
MobilityFloor glides for stationary placement, no casters
Stacking capabilitySupports vertical stacking for compact storage
Lumbar supportCurved mesh back provides passive lumbar contour
Arm supportFixed curved armrests provide stable forearm rest
Floor protectionNon-marking glides prevent hard floor scratches
Seam pitch8 mm
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Corporate conference roomsFixed seating for boardrooms and meeting spaces, uniform professional appearance
Office reception areasGuest seating for waiting areas, durable for frequent visitor use
Training room setupsStackable design allows quick reconfiguration of training spaces
Open plan collaborative zonesLightweight static seating for informal team meeting points
Public institution waiting areasDurable construction for high-frequency public seating use
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Non-domestic seating strength and stabilityEN 16139:2013 Level 2
Furniture mechanical safety general requirementsEN 1728:2012
Office chair ergonomic requirementsEN 1335:2018
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

Office lounge and guest seating performanceANSI/BIFMA X2016
Office seating durability testingANSI/BIFMA X2017
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Office chair strength and durabilityGB/T 10357.3
Formaldehyde emission limitGB 18584
Upholstered furniture flame resistanceGB 20286
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Office chair strength and durability:GB/T 10357.3;
2. Formaldehyde emission limit:GB 18584;
3. Upholstered furniture flame resistance:GB 20286;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · MC-SB47-MESH

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · MC-SB47-MESH

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MC-SB47-MESH打开导出工具

页面快速操作

发布采购询价

产品描述

The Mesh Back Sled Base Conference Chair with Fixed Arms, model MC-SB47-MESH, is an unbranded professional seating solution designed for consistent, high-use settings. It features a streamlined cantilever sled frame finished in black, with a slim side profile that supports a clean, uniform aesthetic across grouped installations. The chair pairs a breathable black mesh back and matching mesh seat upholstery with fixed, gently curved armrests, creating a cohesive, understated look that aligns with formal and casual commercial interiors alike. Its construction prioritizes long-term durability and user comfort. The leg frame is built from black powder-coated steel, fitted with injection-molded polypropylene anti-tip, non-marking glides that prevent scratches to hard flooring. The backrest uses breathable black nylon mesh set in a 30% glass-filled polypropylene support frame, with a curved shape that delivers passive lumbar contouring. The seat rests on a contoured bent plywood inner shell, padded with high-density molded polyurethane foam and upholstered in matching black breathable mesh. The fixed integrated armrests are constructed from glass-filled polypropylene to offer stable forearm support. The chair has a static, non-swivel, non-reclining structure with no seat height adjustment or casters, designed for stationary placement. It supports vertical stacking to enable compact, space-efficient storage when not in use. This chair is well suited for a range of commercial and public spaces, including corporate boardrooms and conference rooms, office reception and waiting areas, flexible training rooms, open-plan collaborative work zones, and public institution waiting areas where durable, consistent seating is required for frequent use. It pairs effectively with 2.4 m executive desks for formal meeting setups. Procurement teams should note that each chair ships across two cartons, with an assembly time of 40 minutes per unit. The stackable design allows for efficient space use during storage and bulk transport, making it a practical choice for facilities requiring flexible, easy-to-reconfigure seating inventories. The product is covered by a 3-year warranty, and supports a recommended static load capacity aligned with regular commercial seating use.
