Armless Fixed-Leg Mesh Back Padded Training Meeting Chair Specifications

MT-CH-AR-900-GRY

代码:31W0T4V1
获取供应商报价
2026-08-12 18:17人气: 59
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

MT-CH-AR-900-GRY

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

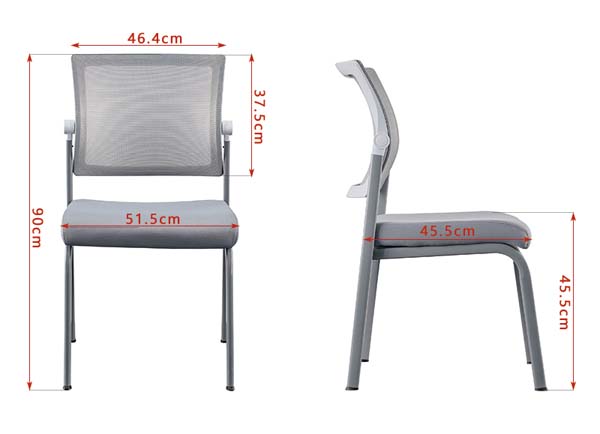

Overall dimensions515 x 560 x 900 mm
Seat height from floor455 mm
Seat usable depth455 mm
Seat front width515 mm
Backrest width464 mm
Backrest height above seat375 mm
Steel frame tube diameter19 mm
Seat foam thickness50 mm
Floor glide diameter30 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Single chair net weight10 kg
Recommended static user load capacity125 kg
Mesh back breathable airflow rating350 L/s per m²
Seat foam density45 kg/m³
Seat foam rebound rate45 %
Floor glide compressive strength200 kg per glide
Recommended continuous seating duration240 min
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Frame construction19mm diameter powder-coated steel tubular frame
Backrest materialPolyester breathable tension mesh with reinforced PP edge trim
Seat cushion fillHigh-density polyurethane foam core
Seat upholsteryWear-resistant polyester fabric cover over foam
Back support bracketsReinforced grey PP plastic joint connectors
Floor protection glidesAnti-slip injection-molded nylon foot caps
Frame surface finishMatte light grey electrostatic powder coating
Seam construction6 stitches per 30mm reinforced stitching
Upholstery fabric thickness0.6 mm
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Height adjustmentNo gas lift or height adjustment mechanism, fixed 455mm seat height
Swivel functionNo swivel mechanism, fixed static seating position
MobilityFixed glide feet, no casters, designed for static placement
Back supportCurved fixed lumbar contour for upright seated posture
Storage capabilityStackable for compact bulk storage
Floor protectionNon-marking glides prevent scratching hard floor surfaces
Armrest featureNo integrated armrests to maximize seating density
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Corporate meeting roomsFits standard 750mm high conference tables for group meeting seating
Staff training spacesArmless design allows flexible dense seating arrangement for training sessions
Visitor reception areasNeutral grey finish matches modern office reception decor
Educational institution classroomsDurable steel frame withstands high-frequency daily use in schools
Temporary event seatingLightweight design allows fast setup and removal for corporate events
Open plan office touchdown areasCompact footprint saves space in casual collaboration zones
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-2:2018Office furniture - Office work chair safety requirements, applicable for fixed visitor seating
EN 1022:2018Domestic and contract seating - Determination of stability
EN 1335-3:2018Office furniture - Test methods for chair structural durability
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017General purpose office chairs - Safety and performance test standard
ANSI/BIFMA X5.4-2020Lounge and public seating - Performance requirements for visitor chairs
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden/metal furniture, applicable for structural stability
GB/T 35607-2017Limit of harmful substances for office furniture upholstery materials
GB/T 10357.3-2013Furniture mechanical performance test for chair seat and back strength
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden/metal furniture, applicable for structural stability;
2. GB/T 35607-2017:Limit of harmful substances for office furniture upholstery materials;
3. GB/T 10357.3-2013:Furniture mechanical performance test for chair seat and back strength;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · MT-CH-AR-900-GRY

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · MT-CH-AR-900-GRY

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MT-CH-AR-900-GRY打开导出工具

页面快速操作

发布采购询价

产品描述

The YUXIANG Armless Fixed-Leg Mesh Back Padded Training Meeting Chair, model MT-CH-AR-900-GRY, presents a streamlined, functional silhouette tailored to space-efficient seating needs. Finished in a neutral matte light grey, the chair features a clean, armless profile paired with a taut mesh backrest and contoured padded seat, supported by a slender tubular steel frame with understated fixed legs that terminate in discreet floor glides. Its armless design enables tight, orderly row or cluster arrangements, while its stackable form supports compact bulk storage when not in active use. The chair’s frame is constructed from 19mm diameter powder-coated steel tubing, joined with reinforced grey PP plastic connectors for structural stability. The backrest uses breathable tension polyester mesh edged with reinforced PP trim, shaped with a fixed curved lumbar contour to encourage upright seated posture. The seat holds a high-density polyurethane foam core wrapped in wear-resistant polyester fabric, secured with reinforced stitching for long-term durability. Injection-molded nylon anti-slip glides cap each leg to protect hard floor surfaces from scratches. As a fixed-position seating solution, the chair includes no height adjustment, swivel mechanism, or casters, designed for stable static placement. The breathable mesh back supports consistent airflow, while the dense, resilient foam cushion delivers comfort for continuous seated use. The absence of armrests maximizes seating density in tight layouts, and its lightweight build supports quick reconfiguration. This chair suits a wide range of commercial and select residential settings, including corporate meeting rooms paired with standard height conference tables, staff training spaces, visitor reception areas, educational institution classrooms, temporary corporate event venues, and open plan office touchdown zones. For procurement, stakeholders should note that each unit ships across two cartons, requires on-site assembly, and is priced and packed for bulk orders, with stackable design supporting efficient shipping and storage for large-scale furnishing projects. The durable steel frame and wear-resistant upholstery are engineered to hold up to high-frequency daily use across high-traffic spaces.
