Mid-Back Mesh Back Padded Seat Cantilever Conference Visitor Chair Specifications

VC-MSH-085

代码:5CY7BKV1
获取供应商报价
2026-08-12 17:38人气: 49
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

VC-MSH-085

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

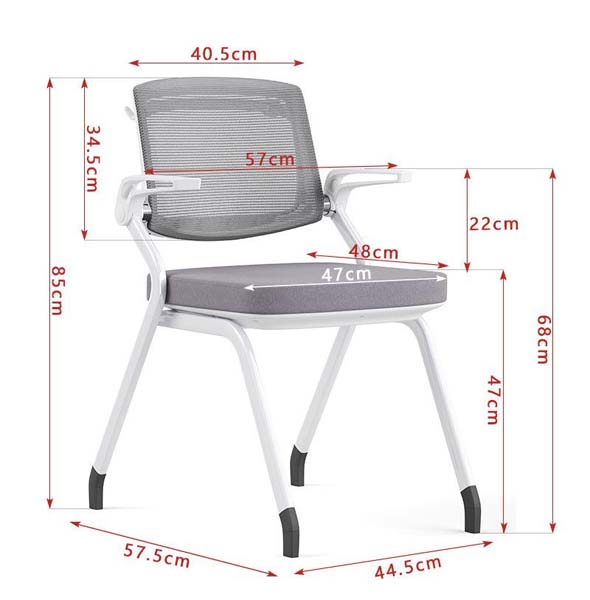

Overall dimensions570 x 575 x 850 mm
Seat width480 mm
Seat depth470 mm
Seat height from floor470 mm
Backrest width405 mm
Backrest height345 mm
Armrest height above seat220 mm
Armrest total height from floor680 mm
Sled base width445 mm
Sled base depth575 mm
Seat cushion thickness50 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net weight per unit8 kg
Recommended static load capacity136 kg
Seat foam density45 kg/m³
Foam rebound rate45%
Mesh upholstery abrasion resistance50000 Martindale cycles
Cantilever flex angle8 degrees
Warranty period5 years
Available color options6
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest panelBreathable woven polyester mesh tensioned over PA+GF support frame
Seat cushion topWoven polyester fabric upholstery over foam core
Seat core structure45kg/m³ high-density polyurethane foam over 12mm plywood seat pan
Frame construction1.5mm thick powder-coated cold-rolled steel tube, 20mm outer diameter
ArmrestsIntegrated fixed PP armrests molded to connect frame and back supports
Floor glidesNon-slip injection-molded rubber foot caps on all leg contact points
Back support hardwareZinc-plated steel bolts securing mesh back to frame
Surface finishSmooth matte white powder coat on steel frame, abrasion-resistant finish
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness2.5 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seating functionFixed non-adjustable static seating designed for short-to-medium duration visitor/conference use
Frame comfort featureSled cantilever leg design provides controlled mild flex under seated load to absorb minor movement
Floor protectionRubber glides prevent hard floor scratches and eliminate lateral slippage during use
Back support featureCurved tensioned mesh back provides continuous lumbar support and air circulation for seated users
Arm support functionFixed integrated armrests support forearm weight at a standard 220mm height above the seat
Stacking capabilityCompact splayed frame allows vertical stacking of up to 8 chairs for compact storage
Mobility designNo casters, swivel, or height adjustment to prevent unintended movement during meeting use
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Conference room applicationSuitable for formal meeting room seating around standard 750mm height conference tables
Visitor reception applicationIdeal for front-of-house reception and waiting area seating for short-stay guests
Training room applicationSuitable for training room and multi-purpose room seating with compact stackable storage
Open office applicationAppropriate for temporary touchdown seating and collaborative open office work zones
Recommended floor typeCompatible with hard tile, wood, and low-pile carpeted commercial floors
Recommended table height matchDesigned for use with 760 mm height standard office desks and conference tables
Target user groupSized to accommodate 5th to 95th percentile adult users for office visitor use
Recommended Matching Desk Size2.4 m executive desk
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2000Applies to dimensional and functional safety requirements for office work seating
EN 1335-2:2009Applies to structural strength, stability and durability performance requirements
EN 1022:2018Applies to seating stability testing for non-domestic use chairs
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Applies to general-purpose office chair strength, durability and safety testing criteria
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Applies to dimensional tolerances and stability requirements for office seating used in public workspaces
GB/T 10357.2-2013Applies to vertical static load testing for chair seat and back structural integrity
GB 18584-2001Applies to limit of formaldehyde and volatile organic compound emissions from furniture materials
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Applies to dimensional tolerances and stability requirements for office seating used in public workspaces;
2. GB/T 10357.2-2013:Applies to vertical static load testing for chair seat and back structural integrity;
3. GB 18584-2001:Applies to limit of formaldehyde and volatile organic compound emissions from furniture materials;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · VC-MSH-085

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · VC-MSH-085

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · VC-MSH-085打开导出工具

页面快速操作

发布采购询价

产品描述

The YUXIANG VC-MSH-085 is a purpose-built mid-back mesh back padded seat cantilever conference visitor chair, crafted to deliver reliable, comfortable fixed seating for commercial environments. Visually, it presents a streamlined, professional silhouette with a smooth matte white powder-coated steel frame, splayed cantilever legs, and integrated fixed armrests that create a cohesive, uncluttered look suited to formal and flexible workspaces alike. Its compact, balanced proportions support neat alignment around tables without visual bulk. Construction centers on durable, wear-tested materials selected for high-traffic commercial use: the backrest uses breathable woven polyester mesh tensioned over a PA+GF support frame, secured with zinc-plated steel bolts. The seat features a woven polyester fabric top over a high-density polyurethane foam core, supported by a bent plywood seat pan, with a fixed PP armrest assembly molded to connect the frame and back supports for stable structure. The 1.5mm thick cold-rolled steel tube frame is finished with an abrasion-resistant matte powder coat, and all leg contact points are fitted with non-slip injection-molded rubber foot caps. Functional design prioritizes stable, low-maintenance utility for short-to-medium duration use: the sled cantilever leg design offers 8 degrees of controlled mild flex to absorb minor seated movement, while the curved tensioned mesh back delivers continuous lumbar support and consistent air circulation to prevent heat buildup. Fixed armrests sit at an ergonomic height to support forearm weight, rubber glides prevent floor scratches and unwanted lateral slippage, and the chair stacks vertically up to 8 units for space-efficient storage. With no casters, swivel, or height adjustment, it eliminates unintended movement during meetings. This chair is suitable for formal conference rooms paired with standard 750mm to 760mm height tables, front-of-house reception and waiting areas, training and multi-purpose rooms, and temporary open office touchdown zones, and is compatible with hard tile, wood, and low-pile carpeted commercial floors. For procurement, note the 5-year warranty, 136kg recommended static load capacity, 50000 Martindale cycle mesh abrasion resistance, and packaged logistics details: each unit ships across 2 cartons, requires 40 minutes of assembly per set, and 135 sets fit in a 20GP container at 85% space utilization, supporting accurate project planning for bulk installations.
