Armless Stackable Molded Plastic Meeting Chair with White Sled Base Specifications

SMC-PP475-SLED-TQ

代码:97TNF5V1
获取供应商报价
2026-08-13 12:51人气: 52
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

SMC-PP475-SLED-TQ

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

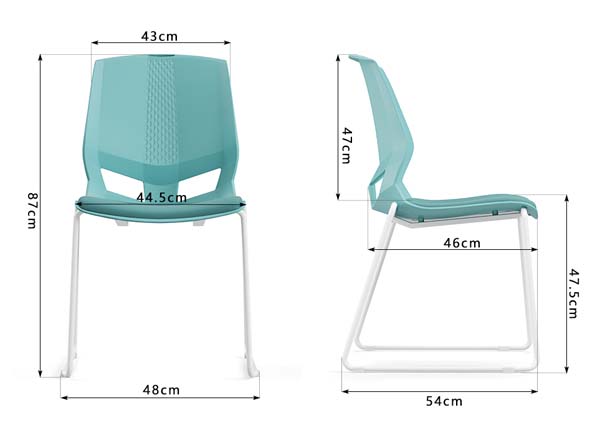

Overall dimensions480 x 540 x 870 mm
Seat height475 mm
Seat width (front)445 mm
Seat depth460 mm
Backrest height above seat470 mm
Backrest top width430 mm
Front leg spread width480 mm
Frame tube diameter22 mm
Shell wall thickness4 mm
Backrest lumbar support height220 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended static load capacity300 kg
Net weight per chair10 kg
Maximum stack height (floor storage)15 chairs
Backrest flex deflection30 mm
Shell surface abrasion resistance30000 cycles
Floor glide static friction coefficient0.6
Warranty period (frame)5 years
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back shellOne-piece injection-molded polypropylene, matte turquoise finish
Support frame22mm diameter tubular steel, white polyester powder-coated finish
Floor contact glidesInjection-molded nylon, non-marking, anti-slip
Stack protection padsSoft thermoplastic rubber, mounted under seat
Frame to shell fastenersZinc-plated steel M6 bolts, corrosion-resistant
Central back panelTextured ribbed PP integrated into shell
Seat edgeContoured waterfall PP edge, rounded radius 15mm
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness2.5 mm cold-rolled steel
Five-star Base Material ThicknessMetal base wall 3.5 mm; diameter 700 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Stack storage capabilityNested vertical stacking up to 15 chairs for compact storage
Back ventilation designTwo symmetric open cutouts at seat-back junction for airflow
Fixed non-adjustable designPermanent upright seating position with no tilt, swivel or height adjustment
Row ganging compatibilityAccepts standard plastic ganging clips to connect chairs in straight rows
Stack dolly compatibilityFits standard commercial stack chair transport dollies for easy movement
Floor protection functionFull-width non-marking glides prevent scuffing on hard wood, tile or vinyl floors
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Conference and meeting roomsLightweight stackable design supports flexible room layout changes for meetings
Corporate training spacesArmless, easy-clean shell suits high-turnover daily training use
Visitor and reception areasSleek modern turquoise finish creates welcoming guest waiting seating
Educational classrooms and lecture hallsDurable PP construction withstands repeated student use and quick reconfiguration
Event and function venuesStackable design enables rapid setup and compact off-site storage between events
Cafeteria and breakroom areasEasy-wipe surface resists food and drink spills for casual dining use
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 13761:2002Visitor chairs - Safety requirements, applicable to structural stability and load testing
EN 1022:2018Furniture - Seating - Determination of stability, applicable to tip resistance testing
EN 12520:2015Furniture - Strength, durability and safety for domestic seating, minimum strength benchmark
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017General purpose office chairs, applicable to static load and back durability testing
ANSI/BIFMA X5.4-2019Lounge and public seating, applicable to high-traffic commercial seating performance
ANSI/BIFMA e3-2019Furniture sustainability standard, applicable to material emissions and recyclability
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for metal furniture, applicable to steel frame durability
GB/T 29648-2013Performance requirements for public seating, applicable to structural load testing
GB 18584-2001Indoor decorating and refurbishing materials limit of harmful substances for wooden furniture, applicable to formaldehyde limits for any padded variants
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for metal furniture, applicable to steel frame durability;
2. GB/T 29648-2013:Performance requirements for public seating, applicable to structural load testing;
3. GB 18584-2001:Indoor decorating and refurbishing materials limit of harmful substances for wooden furniture, applicable to formaldehyde limits for any padded variants;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · SMC-PP475-SLED-TQ

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · SMC-PP475-SLED-TQ

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · SMC-PP475-SLED-TQ打开导出工具

页面快速操作

发布采购询价

产品描述

The unbranded armless stackable molded plastic meeting chair, model SMC-PP475-SLED-TQ, delivers commercial-grade seating tailored for flexible, high-use public and commercial spaces. Its streamlined visual profile features a matte turquoise one-piece injection-molded polypropylene seat and back shell, paired with a crisp white powder-coated tubular steel sled base, creating a modern, unobtrusive aesthetic suited to varied interior schemes. The central back panel integrates textured ribbed polypropylene, while the seat carries a contoured waterfall edge with a 15mm rounded radius for smooth, approachable lines, and a fixed 125° upright position with no adjustable mechanisms for consistent, uniform seating layouts. Constructed for long-term heavy use, the shell and seat are reinforced with 14mm bent plywood internal supports, with corrosion-resistant zinc-plated M6 steel bolts securing components to the 22mm diameter steel frame. The back shell incorporates a 30mm flex deflection for seated comfort, with two symmetric open cutouts at the seat-back junction to support airflow. Soft thermoplastic rubber stack protection pads are mounted under each seat to prevent surface damage during vertical nesting, while injection-molded nylon non-marking, anti-slip glides protect hard flooring surfaces. The chair supports a 300kg static load, with an abrasion-resistant shell surface rated for 30000 cycles of use, and a 5-year warranty for the steel frame; each unit weighs 10kg. Core functional features include vertical nested stacking for up to 15 chairs for compact floor storage, compatibility with standard plastic ganging clips to connect units into straight rows, and fit with standard commercial stack chair transport dollies for easy movement. The fixed, non-adjustable design requires no ongoing user calibration, while the smooth polypropylene surface wipes clean quickly with minimal maintenance. This chair is suited for conference and meeting rooms requiring flexible layout adjustments, high-turnover corporate training spaces, welcoming visitor and reception areas, educational classrooms and lecture halls needing frequent reconfiguration, event venues requiring rapid setup and teardown, and cafeteria or breakroom areas exposed to occasional food and drink spills. Procurement teams should note that each unit ships across two cartons, with a 40-minute per-unit assembly time, and that 135 units can fit in a 20GP container at 85% space utilization. Ganging clips and transport dollies are sold as separate standard accessories, and the chair’s non-adjustable fixed design is not suited for workstations requiring customized ergonomic positioning.
