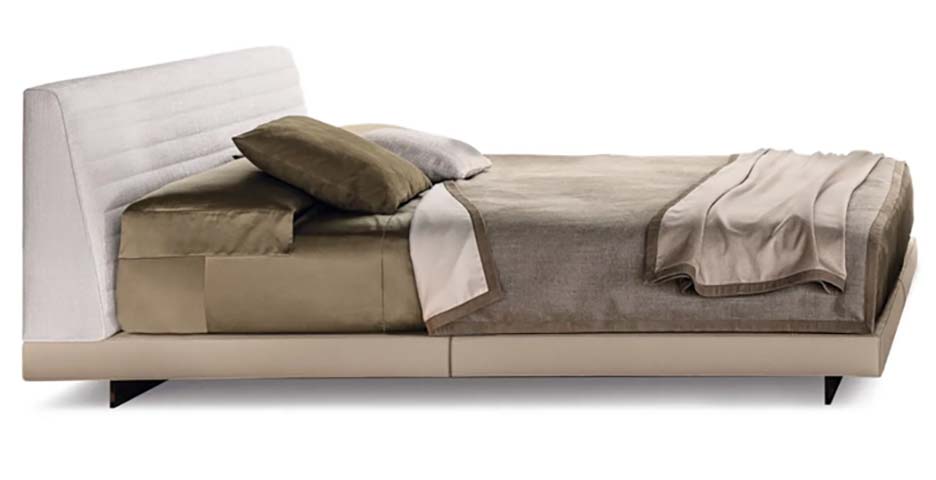

Modern Beige Horizontal Channel-Tufted Upholstered Platform Bed Specifications

UPB-Q-HCH-001

代码:AZDWNEV1
获取供应商报价
2026-09-07 14:03人气: 22
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

UPB-Q-HCH-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions (Queen size)2100 x 1800 x 1050 mm
Headboard height1000 mm
Headboard thickness180 mm
Mattress platform height from floor450 mm
Support leg height100 mm
Under-bed clearance20 mm
Recommended mattress size1800 x 2000 mm
Side rail thickness150 mm
Mattress platform thickness30 mm
Slat count (Queen size)28 pieces
Slat spacing70 mm
Center Support Leg CountRecommended 6legs
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total static load capacity363 kg
Fabric upholstery abrasion resistance25000 cycles
Fabric lightfastness ratingGrade 5
Recommended mattress thickness254 mm
Net product weight68 kg
Center support rail count2 pieces
Slat static load per slat25 kg
Standard warranty length5 years
Bed Static Load Reference400 kg
Per-slat Load Reference60 kg
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Headboard upholsteryBeige linen-look woven polyester fabric
Headboard padding30mm thick 20kg/m³ polyurethane foam with polyester fiber wrap
Headboard inner structure15mm thick E0-grade engineered wood panel with steel reinforcement
Bed base upholsteryWarm taupe matching woven polyester fabric
Inner support frame30x30mm square powder-coated steel tubing + 12mm plywood deck
Support slats10mm thick bent laminated birch wood slats with silent non-slip tape
Support legs2mm thick dark matte powder-coated angled steel legs, 4 corner units
Center support legs2mm thick matte black steel legs, 2 mid-span units
Hardware fastenersZinc-plated steel bolts, barrel nuts and lock washers
Slat end buffersEVA foam pads between slats and frame
Base seam finishReinforced stitched seams with 8mm stitch pitch
Slat Thickness15 mm bent plywood or solid timber
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Support systemSlat platform foundation, no box spring required for mattress support
Headboard functionFixed 8-degree angled padded surface for seated back support while reading in bed
Noise reductionEVA foam slat buffers eliminate frame squeak during normal use
Assembly typeKnock-down assembly with included hex key and instruction manual
Under-bed designLow-profile minimal clearance, no built-in storage drawers or lift mechanism
Edge supportReinforced side rails prevent mattress edge sag when sitting on bed perimeter
Mattress retentionRecessed platform lip keeps mattress positioned flush without sliding
Available color options5 neutral finishes including beige, cream, oat, light gray, ivory
Headboard backward tilt angle8 degrees
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight130 kg/set
Reference Packaging Volume0.9 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Primary residential useMaster or guest bedroom in contemporary, minimalist or Scandinavian style interiors
Recommended room sizeMinimum 3000 x 3300 mm bedroom footprint to allow clear access around bed
Target user groupAdult residential users seeking a streamlined, low-profile bed without footboard obstruction
Design advantageLow floating base and slim angled legs create visual lightness in small to mid-sized bedrooms
Recommended pairingLow-profile nightstands 500 mm tall, neutral tone bedding, minimal metal table lamps
Mattress compatibilityCompatible with all spring, memory foam, latex and hybrid mattresses 250 mm thick
Cleaning considerationTight woven polyester fabric can be spot cleaned with mild upholstery cleaner for routine maintenance
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1725:1998Applicable for domestic bedding safety, strength and durability test methods
EN 1021-1:2014Applicable for upholstered furniture cigarette ignition resistance testing
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB 18580-2017Applicable for formaldehyde emission limits on engineered wood components
GB/T 3324-2017Applicable for general wooden furniture dimensional tolerance and durability requirements
GB 20400-2006Applicable for leather/fabric upholstery material safety limits if leather variants are offered
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB 18580-2017:Applicable for formaldehyde emission limits on engineered wood components;
2. GB/T 3324-2017:Applicable for general wooden furniture dimensional tolerance and durability requirements;
3. GB 20400-2006:Applicable for leather/fabric upholstery material safety limits if leather variants are offered;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · UPB-Q-HCH-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · UPB-Q-HCH-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · UPB-Q-HCH-001打开导出工具

页面快速操作

发布采购询价

产品描述

The Modern Beige Horizontal Channel-Tufted Upholstered Platform Bed (model UPB-Q-HCH-001, unbranded) delivers a streamlined, contemporary silhouette tailored for understated residential interiors. Its fixed, 8-degree angled headboard features crisp horizontal channel tufting upholstered in soft beige linen-look woven polyester, paired with a matching warm taupe woven polyester base. The low-profile frame sits on dark matte powder-coated angled steel corner legs and matte black mid-span center legs, with minimal under-bed clearance that creates a subtle floating visual effect without added bulk. No footboard is integrated, keeping sightlines open and eliminating obstruction when entering or exiting the bed. Construction balances durability and quiet comfort, starting with a reinforced inner structure: the headboard uses 15mm E0-grade engineered wood with steel bracing, padded with 30mm thick 20kg/m³ polyurethane foam wrapped in polyester fiber for soft, resilient support. The base frame combines 30x30mm square powder-coated steel tubing with a 12mm plywood deck, supported by 10mm thick bent laminated birch slats lined with silent non-slip tape and EVA foam buffers to eliminate frame squeak during regular use. All fasteners are zinc-plated steel bolts, barrel nuts, and lock washers for secure, long-lasting connections. The beige polyester upholstery holds a Grade 5 lightfastness rating and withstands 25000 abrasion cycles for sustained daily wear, while the entire unit supports a total static load of 363 kg, with each slat rated for 25 kg of static load. Functionally, the wooden slat platform removes the need for a separate box spring, compatible with all spring, memory foam, latex, and hybrid mattresses. The recessed platform lip prevents mattress sliding, while reinforced side rails reduce edge sag when sitting on the bed perimeter. The angled padded headboard offers comfortable back support for seated reading, and the knock-down assembly includes a hex key and instruction manual for 40-minute setup. This bed fits master or guest bedrooms with contemporary, minimalist, or Scandinavian design, requiring a minimum 3000 x 3300 mm bedroom footprint for clear access. It pairs best with 500mm tall low-profile nightstands, neutral bedding, and minimal metal table lamps. Procurement notes include shipping as 2 cartons per set with 0.9 m³ total packaging volume and 130 kg gross weight, no included storage or lift mechanism, and compatibility only with the specified queen-size mattress dimensions.
