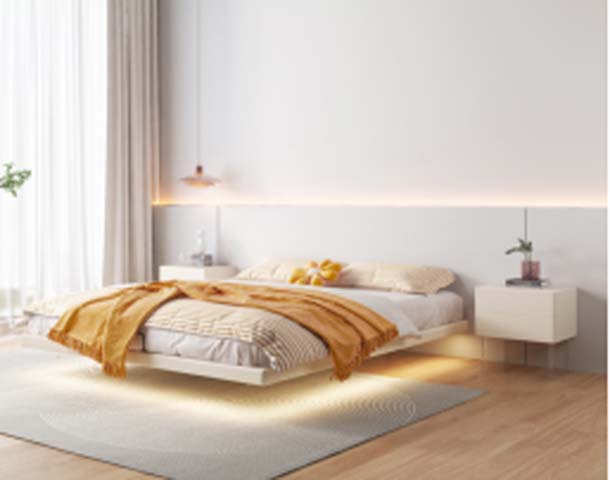

Minimalist White Floating Platform Bed Set with LED Underglow, Wall Headboard and Matching Floating Nightstands Specifications

FPB-K-WHT-LED-2NS

代码:GRC8LTV1
获取供应商报价
2026-08-17 18:30人气: 23
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

FPB-K-WHT-LED-2NS

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall set dimensions (bed + wall headboard)2600 x 2200 x 950 mm
Compatible mattress size1800 x 2000 mm
Platform top height from floor255 mm
Underglow recess setback100 mm
Wall headboard panel thickness60 mm
Wall headboard height950 mm
Single floating nightstand dimensions500 x 400 x 550 mm
Support slat thickness18 mm
Support slat spacing70 mm
Center support beam count2
Under-bed clearance for air flow100 mm
Side Rail Thickness40 mm
Slat Spacing80 mm
Center Support Leg CountRecommended 6legs
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total set net weight80 kg
Bed platform static load capacity260 kg
Single floating nightstand static load30 kg
In-use noise level25 dB
LED strip operational lifespan30000 hours
Recommended maximum user weight per side130 kg
Slat system durability cycle count10000 cycles
Surface abrasion resistance2000 cycles
Nightstand wall bracket load span450 mm
Bed Static Load Reference400 kg
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Bed platform panelsE0-grade matte white engineered wood
Hidden support frame2mm thick rectangular steel tubing
Mattress support slatsSolid pine wood slats
Wall headboard panel18mm thick engineered wood with matte white laminate
Floating nightstand carcass15mm thick matte white engineered wood
LED light strips3000K warm white SMD LED strips
Wall mounting hardwareCarbon steel expansion brackets
Surface finishScratch-resistant matte polyurethane coating
Anti-slip slat pads3mm thick EVA rubber
Slat Thickness15 mm bent plywood or solid timber
Primary Connector SpecificationReference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color CountRecommended 6timber/upholstery options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Perimeter under-bed LED lightingContinuous warm white glow casts soft light across floor below platform
Headboard accent LED lightingHorizontal strip casts soft indirect light upward along wall surface
Floating support structureRecessed central steel frame and wall brackets hide all visible legs
Box-spring free mattress supportClosely spaced wooden slat deck provides even support for all foam, latex, or spring mattresses
Floating nightstand storageSingle drawerless open cubby per nightstand for bedside items
Silent slat operationEVA anti-slip pads between slats and frame eliminate metal-on-wood squeaks
Tool-based knock-down assemblyPre-drilled panels and included hardware enable on-site installation
Ventilated under-bed air flow100mm floor gap allows constant air circulation beneath mattress
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Total shipment gross weight80 kg
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight130 kg/set
Reference Packaging Volume0.9 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Modern residential main bedroomKing size low-profile design fits minimalist, cream, or Scandinavian style interiors
Small apartment bedroomWall-mounted nightstands and low profile create open visual space without cluttering floors
Youth or guest bedroomLow platform height provides safe access for children and occasional guest use
Show home / model apartment stagingIntegrated LED lighting creates premium ambient lighting effect for display
Boutique hotel guest roomsSilent operation and durable construction suit high-turnover hospitality use
Recommended pairingPair with 250 mm thick memory foam or pocket spring mattress for optimal support
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 312:2010Particleboard performance requirements for furniture-grade panel structural use
EN 62471:2008Photobiological safety for LED lighting products to protect against eye and skin hazards
EN 1725:1998Domestic bedding safety and strength requirements for bed frames and support systems
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to panel construction and finish durability
GB 18580-2017Formaldehyde emission limits for wood-based panels, specifies E1 ≤0.124mg/m³ acceptance criterion
GB 7000.204-2008Safety requirements for built-in LED lighting fixtures used in residential furniture
GB/T 10357.6-2013Test method for static load of bed structural components, applicable to frame and slat strength verification
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to panel construction and finish durability;
2. GB 18580-2017:Formaldehyde emission limits for wood-based panels, specifies E1 ≤0.124mg/m³ acceptance criterion;
3. GB 7000.204-2008:Safety requirements for built-in LED lighting fixtures used in residential furniture;
4. GB/T 10357.6-2013:Test method for static load of bed structural components, applicable to frame and slat strength verification;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · FPB-K-WHT-LED-2NS

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · FPB-K-WHT-LED-2NS

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · FPB-K-WHT-LED-2NS打开导出工具

页面快速操作

发布采购询价

产品描述

This minimalist white floating platform bed set delivers a streamlined, contemporary aesthetic anchored by a cohesive wall-mounted layout, with no visible support legs to disrupt clean sightlines. The set includes a low-profile floating bed base, full-height wall-mounted headboard, and two matching floating nightstands, all finished in a consistent matte white that blends seamlessly with light, neutral interior palettes. Integrated LED elements form a key visual feature: continuous perimeter underglow casts a soft warm white wash across the floor below the bed platform, while a horizontal LED strip along the headboard projects gentle indirect light upward against the adjacent wall, creating layered ambient illumination without harsh glare. The floating nightstands sit flush with the bed assembly to maintain a unified, uncluttered visual flow. The set is constructed with durable, thoughtfully selected materials: bed platform and nightstand panels use matte white engineered wood finished with a scratch-resistant matte polyurethane coating, while the wall headboard features a matching matte white laminate surface. A hidden rectangular steel tubing frame paired with carbon steel expansion wall brackets forms the core load-bearing structure, eliminating exposed hardware and legs. The mattress support deck uses closely spaced solid pine wood slats, fitted with EVA rubber anti-slip pads where slats meet the frame to prevent movement and noise. Warm white 3000K SMD LED strips are integrated directly into the frame for seamless operation. Functionally, the slat system provides even, box-spring-free support compatible with foam, latex, and spring mattresses, with no need for an additional foundation. Each floating nightstand includes a single open, drawerless cubby to hold bedside essentials within easy reach. The recessed floating frame design leaves the floor area below the bed unobstructed, simplifying routine cleaning, while the anti-slip slat pads eliminate squeaks during use for quiet, consistent performance. The LED strips deliver long-lasting ambient illumination for daily use. This set suits a range of residential and light commercial spaces. It is an ideal fit for modern residential main bedrooms with minimalist, cream, or Scandinavian design schemes, and its wall-mounted, low-profile build creates an open visual feel suited to small apartment bedrooms where floor space is limited. The low platform height offers stable, easy access that works well for youth bedrooms or guest rooms, while the integrated ambient lighting makes it a strong choice for show home and model apartment staging. Its durable, quiet construction also supports use in boutique hotel guest rooms experiencing regular guest turnover. For procurement planning, note that the set is compatible with a king-size mattress, and pairs optimally with a 250mm thick memory foam or pocket spring mattress for ideal support. The product ships in knock-down form with pre-drilled panels and all required mounting hardware included to support on-site assembly; teams should allocate appropriate installation time per unit, and account for packaged shipment weight and volume when coordinating delivery and on-site storage. Wall mounting requires secure attachment to suitable wall surfaces to support the rated load of the bed frame and attached nightstands.
