PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	2057 × 2197 × 1194 mm
Overall outer dimensions	2057 x 2197 x 1194 mm
Compatible mattress size	1800 x 2000 mm
Headboard thickness	277 mm
Platform sleeping surface height	201 mm
Under-bed ground clearance	201 mm
Side rail padding thickness	102 mm
Support slat thickness	15 mm
Support slat width	60 mm
Slat spacing gap	70 mm
Number of support slats	14
Center support beam count	3
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Total static weight capacity	455 kg
Product net weight	94 kg
Recommended mattress thickness	305 mm
Recommended user count	2 adults
Upholstery abrasion resistance	3000 cycles
Headboard padding foam density	45D
Foam rebound rate	45%
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Headboard outer upholstery	1.2mm thick cream polyester fabric
Headboard internal fill	High-resilience polyurethane foam
Side/foot rail upholstery	Matching cream polyester fabric over padded core
Internal support frame	Solid pine and engineered wood structure
Support slats	Solid pine wood slats
Center support beams	Powder-coated steel rectangular tubing
Support feet	Matte black hard plastic low-profile block feet
Connecting hardware	Zinc-plated steel bolts and barrel nuts
Seam construction	Stitched upholstery seams at 8mm stitch pitch
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Mattress support system	Wooden slat platform, no box spring required
Assembly requirement	Knock-down assembly for 2 adults
Headboard design	Fixed arched channel-tufted shell, no height adjustment
Frame edge design	Fully rounded soft upholstered edges, no sharp corners
Storage configuration	Fixed platform frame, no under-bed drawers or lift storage
Mattress retention	Raised upholstered side rails prevent mattress slippage
Floor protection	Small block feet with non-marking pads
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Primary application space	Master bedrooms in residential apartments and homes
Target user group	Adult couples seeking soft, contemporary low-profile bedroom furniture
Recommended configuration	Pair with matching cream nightstands and neutral bedding
Suitable interior styles	Modern minimalist, cream-style, contemporary luxury interiors
Flooring compatibility	Works on hardwood, laminate, carpet, and tile flooring

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Domestic furniture bed safety	EN 747:2012+A1:2015
Upholstered furniture flammability	EN 1021:2014
Furniture formaldehyde emission	EN 13986:2004+A1:2015 Class E1

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Formaldehyde emission limit	GB 18584≤0.124 mg/m³
Wood furniture structural strength	GB/T 3324
Upholstered furniture safety	GB 28007

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. Formaldehyde emission limit：GB 18584≤0.124 mg/m³；
2. Wood furniture structural strength：GB/T 3324；
3. Upholstered furniture safety：GB 28007；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · UPB-CRVSHELL-KG-2024

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · UPB-CRVSHELL-KG-2024

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · UPB-CRVSHELL-KG-2024打开导出工具

页面快速操作

发布采购询价

产品描述

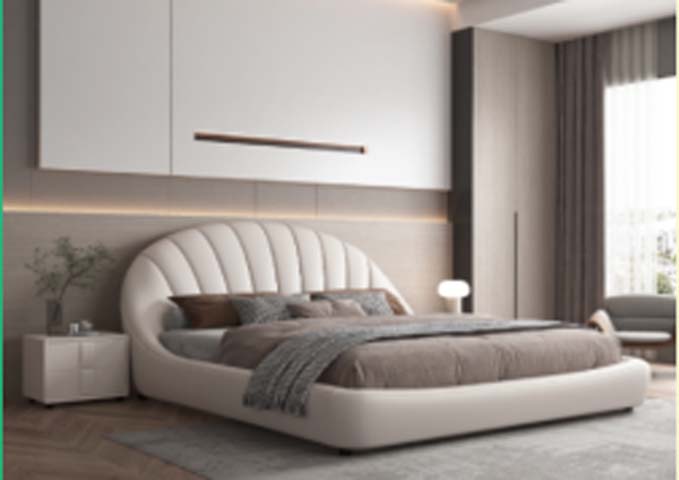

The Cream Curved Shell Channel-Tufted Upholstered Platform Bed offers a soft, streamlined contemporary anchor for residential bedroom spaces, defined by its fully rounded, enveloping frame form. Its fixed arched channel-tufted shell headboard extends seamlessly into padded side and foot rails, with no sharp exposed edges across the entire structure. The silhouette sits low to the floor, supported by discrete matte black low-profile block feet, with even upholstery coverage across every visible surface to create a cohesive, gentle visual presence that aligns with soft, curated interior palettes. Construction prioritizes balanced support and tactile comfort: the internal frame combines solid pine and engineered wood, reinforced by powder-coated steel rectangular center support beams, topped with solid pine wood slats. Upholstery uses 1.2mm cream polyester fabric across the headboard, side rails, and foot rails, stitched at an 8mm seam pitch for consistent, durable finishing. The headboard is filled with 45D high-resilience polyurethane foam with a 45% rebound rate, with 277mm of padding thickness at the headboard, 102mm of padding along the side rails, and 15mm thick, 60mm wide pine slats forming the mattress support surface. All connections use zinc-plated steel bolts and barrel nuts, and the block feet are fitted with non-marking pads to protect finished flooring. Functionally, the wood slat platform eliminates the need for a separate box spring, with raised upholstered side rails that hold the mattress in place to prevent slippage. The bed supports a total static weight of 455kg, designed to accommodate two adults, with a sleeping surface positioned 201mm above the floor and matching 201mm under-bed clearance. It holds an 1800 x 2000mm mattress, with a recommended mattress thickness of 305mm. The fixed frame does not include under-bed drawers or lift storage, and the headboard has no height adjustment mechanism. Delivered in knock-down form for two-person assembly with an 40-minute build time, the set ships across two cartons, with a total net weight of 94kg and packaged gross weight of 130kg. This bed is ideally suited for master bedrooms in apartments and private homes, complementing modern minimalist, cream-style, and contemporary luxury interiors, and pairs seamlessly with matching cream nightstands and neutral-toned bedding. It performs reliably across hardwood, laminate, carpet, and tile flooring. Procurement teams should note the unbranded product designation, model number UPB-CRVSHELL-KG-2024, and that upholstery carries a 3000-cycle abrasion resistance rating; no additional storage components or adjustable hardware are included with the base unit. The overall outer dimensions of the assembled unit measure 2057 x 2197 x 1194mm, to be confirmed against intended room layout prior to order placement.

Cream Curved Shell Channel-Tufted Upholstered Platform Bed Specifications
