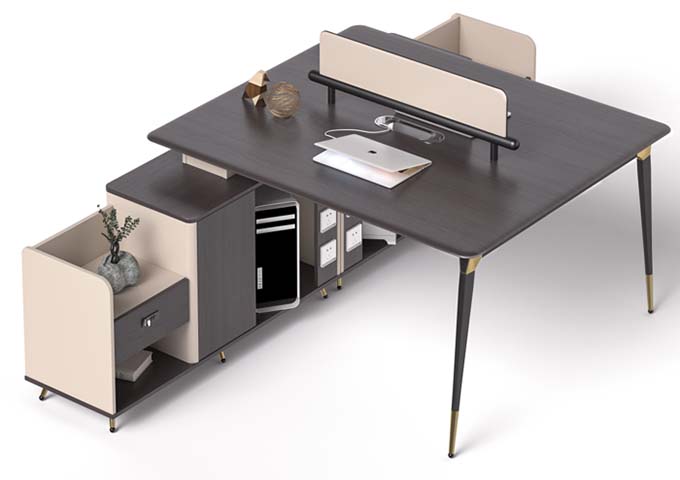

商品供应商Double-Sided Office Workstation with Center Divider and Integrated Storage，25 mm wood-composite panel with dark wood-grain laminate face and sealed edge band
可联系供应商获取生产周期与报价。
PRODUCT MODULE 01 / 06
基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源：工厂资料结构化字段，最终以实测值为准
| 产品外部尺寸（宽 × 深 × 高） | 2400 × 1200 × 1100 mm | |
|---|---|---|
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源：产品性能数据，采购前请核对具体测试口径
| Product net weight | 165 kg | |
|---|---|---|
| Desktop distributed static load | 80 kg per user side | |
| Drawer static load | 25 kg | |
| Open shelf static load | 30 kg per shelf | |
| Seating capacity | 2 users | |
| Binder capacity | 4 standard 75 mm binders | |
| Suggested user weight limit at workstation | 120 kg per seated user | |
| Fastener torque for main cam and bolt joints | 12 Nm | |
| Surface impact resistance | 120 N | |
| Top Static Load Reference | 150 kg uniformly distributed |
PRODUCT MODULE 03 / 06
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源：以工厂材质清单与验货报告为准
| Work surface | 25 mm wood-composite panel with dark wood-grain laminate face and sealed edge band | |
|---|---|---|
| Divider panel | 30 mm composite core with beige soft-touch upholstered face and rounded corners | |
| Side cabinet panels | 18 mm dark wood-grain laminate board with beige laminated end panels | |
| Drawer box | 15 mm laminated composite drawer body with metal locking handle and side slides | |
| Leg frame | Black powder-coated tapered steel tube with brass-colored lower sleeve | |
| Leveling system | Nylon-and-metal adjustable glides with black contact pads |
PRODUCT MODULE 04 / 06
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源：功能配置参数，以供应商正式规格为准
| Back-to-back workstation layout | Two users work on opposite faces separated by the 350 mm center divider | |
|---|---|---|
| Integrated storage and CPU bay | One lockable drawer, one open plant or file compartment, and two equipment or binder bays provide under-surface storage | |
| Cable routing path | Cables can route behind the center divider rail and down into the equipment bay; no powered grommet is visible | |
| Fixed-height installation | Legs and storage plinth bolt to the desktop assembly and level on adjustable glides |
PRODUCT MODULE 05 / 06
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源：外贸报价与装柜测算参考
| Carton dimensions | 2450 x 660 x 160 mm for largest carton | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源：依据产品结构与品类整理的推荐应用场景
| Open-plan two-person office | Suitable for staff neighborhoods where visual separation, laptop work, and file storage are required in one footprint. | |
|---|---|---|
| Supervisor or shared service workstation | Recommended where two operators share files and a CPU while retaining separate writing and laptop zones. |
STANDARD S1
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
该市场暂无标准数据。
STANDARD S2
北美市场采购验货参考 * ANSI/BIFMA 标准
美国及加拿大家具标准
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
STANDARD S3
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
该市场暂无标准数据。
招标文件标准化描述文本
本产品须满足以下技术参数要求： 1. 技术标准与检测报告由供应商在投标或采购确认阶段提供； 最终交付参数、检测报告和验收标准以双方采购合同为准。
