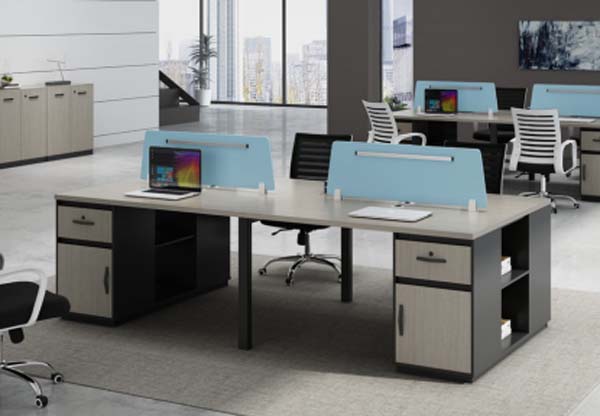

2-Person Side-by-Side Bench Office Workstation with Blue Privacy Dividers and Fixed End Storage Pedestals Specifications

WS-BN2-2400-GY-BL

代码:1J0TGFV1
获取供应商报价
2026-08-27 18:05人气: 24
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

WS-BN2-2400-GY-BL

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall unit dimensions2400 x 1200 x 1096 mm
Work surface height760 mm
Desktop thickness38 mm
Privacy divider height above desktop305 mm
Seated knee clearance height673 mm
Per-user work surface width1200 mm
End pedestal dimensions400 x 1200 x 650 mm
Open side shelf dimensions per pedestal300 x 400 x 300 mm
PVC edge banding thickness2 mm
Central support leg section60 x 60 mm
Cable grommet diameter80 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total unit net weight126 kg
Desktop uniform static load capacity150 kg
Recommended user capacity2 users
Drawer slide cycle durability50000 open/close cycles
Cabinet door hinge cycle durability80000 open/close cycles
Surface abrasion resistance2000 rub cycles
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Desktop substrateHigh-density MFC board with grey woodgrain laminate finish
Edge banding2 mm thick PVC edging on all exposed panel edges
Support legsPowder-coated rectangular steel tubing
Privacy dividersLight blue MFC panel with white mounting brackets
Pedestal drawer frontsLight grey woodgrain MFC with integrated metal handle
Cabinet doorsLight grey woodgrain MFC with vertical recessed pull handle
Pedestal frame and side panelsDark grey/black MFC with matte laminate finish
Open shelf surfacesMatching grey woodgrain MFC laminate
Hardware componentsZinc-plated steel drawer slides, steel hinges, plastic cable grommets
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Work surface divisionTwo dedicated 1200 mm wide work zones separated by upright blue privacy screens
Left end pedestal storage1 lockable upper drawer, 1 lower hinged door cabinet, 2 outer open side shelves
Right end pedestal storage1 lockable upper drawer, 1 lower hinged door cabinet, 2 outer open side shelves
Cable managementDual 80 mm cable grommets per work position for power/data routing
Central support structureDual rectangular steel legs positioned between pedestals to maximize unobstructed knee clearance
Drawer operationFull-extension side-mounted ball-bearing slides for smooth silent open/close
Privacy screen mountingSurface-mounted brackets with optional integrated accessory rail
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office staff work areasFits 2 adjacent workers in compact footprint for dense open office layouts
Small business administrative workspacesIntegrated storage eliminates need for separate filing cabinets for small teams
Call center and shared team work zonesPrivacy dividers reduce distraction during heads-down work and phone calls
Startup and co-working flexible officesModular design allows reconfiguration with additional bench units for team expansion
Temporary project team work areasQuick assembly and durable construction supports short-term project team deployments
Government and institutional back officesLockable storage meets secure document storage requirements for administrative staff
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office worktables and desks safety and strength requirements, applicable to structural performance
EN 527-2:2016Office worktables dimensional and ergonomic requirements, applicable to work height and clearance
EN 13722:2004Furniture storage units performance requirements, applicable to pedestal cabinet durability
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Office desk products standard, applicable to static load and stability verification
ANSI/BIFMA X5.9-2019Office storage units standard, applicable to drawer and cabinet performance
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to panel construction and finish quality
GB/T 3327-2016Performance test methods for office desks, applicable to static load and stability testing
GB 18584-2001Limit of formaldehyde emission for wooden furniture, applicable to MFC panel substrate safety
GB/T 10357.1-2013Furniture mechanical performance test for tables, applicable to structural durability validation
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to panel construction and finish quality;
2. GB/T 3327-2016:Performance test methods for office desks, applicable to static load and stability testing;
3. GB 18584-2001:Limit of formaldehyde emission for wooden furniture, applicable to MFC panel substrate safety;
4. GB/T 10357.1-2013:Furniture mechanical performance test for tables, applicable to structural durability validation;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · WS-BN2-2400-GY-BL

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · WS-BN2-2400-GY-BL

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · WS-BN2-2400-GY-BL打开导出工具

页面快速操作

发布采购询价

产品描述

The two-person side-by-side bench office workstation, model WS-BN2400-GY-BL, presents a clean modern silhouette tailored to collaborative yet focused work environments. The unit balances open, shared structure with subtle visual separation: two equal 1200 mm wide individual work zones sit across a 2400 mm wide grey woodgrain desktop, divided by a light blue upright privacy divider mounted with clean white surface brackets. Fixed storage pedestals anchor both ends of the frame, creating a symmetrical, streamlined layout that avoids visual clutter. Dual central rectangular steel support legs are positioned between the end pedestals to deliver unobstructed seated knee clearance, with the work surface set at a standard 760 mm height for ergonomic seated use. The privacy divider rises 305 mm above the desktop surface to soften visual distraction without blocking cross-team collaboration. The workstation is constructed for long-term daily use, with a 38 mm thick high-density MFC desktop finished in scratch-resistant grey woodgrain laminate, edged with 2 mm PVC banding on all exposed panel edges to prevent chipping. Support legs are formed from powder-coated rectangular steel tubing, paired with zinc-plated steel drawer slides, steel hinges, and integrated plastic cable grommets. End pedestals use a durable laminate build: pedestal frames and side panels feature a dark grey matte laminate finish, while drawer fronts and cabinet doors carry a light grey woodgrain finish with integrated metal and vertical recessed pull handles. Open shelf surfaces match the desktop’s grey woodgrain finish for visual cohesion. The desktop supports a 150 kg uniformly distributed static load, with drawer slides tested to 50000 open-close cycles and cabinet hinges rated for 80000 open-close cycles to withstand regular heavy use; the laminate surface resists abrasion across 2000 rub cycles. Practical functionality is integrated directly into the frame to reduce the need for supplementary furniture. Each end pedestal includes one lockable upper drawer, one lower hinged-door cabinet, and two outer open side shelves for quick-access items and secure document storage. Each work position is fitted with dual cable grommets to route power and data cords neatly off the work surface, while full-extension ball-bearing drawer slides enable smooth, quiet operation. The privacy divider’s mounting brackets support an optional integrated accessory rail for added personalization. This workstation is suited for a wide range of professional spaces, including open-plan office staff areas, small business administrative workspaces, call center and shared team zones, startup and co-working flexible offices, temporary project team areas, and government or institutional back offices. Its modular bench structure allows connection to additional matching units to scale with growing teams, while its compact footprint supports dense, efficient layout planning. Procurement teams should note the unit ships across multiple cartons, with a 40-minute per-set reference assembly time, and a total packaged gross weight of 180 kg per set, requiring appropriate receiving and installation staffing. As an unbranded product, buyers should confirm on-site delivery and assembly support aligned with project timelines, and plan for expanded layout configurations by ordering matching compatible bench units as needed.
