PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	2400 × 1220 × 1150 mm
Overall footprint	2400 x 1220 x 1150 mm
Per-user work surface size	1200 x 600 mm
Desk work surface height	750 mm
Seated knee clearance height	680 mm
Knee clearance depth per user	550 mm
Work surface thickness	38 mm
Central storage pedestal size	400 x 1220 x 720 mm
Teal privacy screen height	350 mm
Partition panel thickness	60 mm
Angled steel leg diameter	50 mm
Open lower storage shelf height	300 mm
Drawer internal usable height	150 mm
PVC edge banding thickness	2 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Per work surface static load capacity	90 kg
Drawer slide cycle rating	50000 open/close cycles
Work surface scratch resistance rating	2000 revolutions
Maximum recommended user weight per position	136 kg
Product warranty period	5 years
Top Static Load Reference	150 kg uniformly distributed
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Life	Acceptance target 80000 cycles
Top Abrasion Reference	Acceptance target ≥4,000 abrasion cycles or finish-system test
Recommended Procurement Warranty	Structure 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Work surface	E1 grade melamine-faced chipboard, 2mm PVC edge banding
Support legs	1.5mm thick powder-coated steel, tapered angled design
Upper privacy screen	Teal polyester fabric over MDF core, aluminum trim
Central pedestal frame	Dark grey melamine-finished particleboard, metal connector brackets
Drawer fronts	Beige thermally fused laminate finish, recessed metal pull handles
Open shelf base	Melamine-finished particleboard, leveler feet for uneven floors
Hardware connectors	Zinc-plated steel cam locks and screws, 5% spare parts included
Cable management components	ABS plastic grommets and under-desk cable raceways
Primary Panel Thickness	25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness	2 mm
Metal Frame Wall Thickness	2 mm cold-rolled steel
Primary Connector Specification	Reference M6-M8 with at least 2 fixing points per main support

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Central drawer storage	Two stacked lockable drawers per pedestal side for personal office supplies
Open lower storage	Two open shelves below drawers for shared document and book storage
Privacy screening	Teal fabric upper dividers block direct eye contact between opposite seated users
Cable management	80mm diameter desk grommets route power and data cables to under-desk raceways
Level adjustment	Threaded adjustable feet on legs and pedestal correct for uneven office flooring
Modular reconfiguration	Panel connectors allow connection to additional workstations for larger team layouts
Surface utility	Stain-resistant laminate top supports monitors, laptops, and standard office equipment
Mobility compatibility	750mm desk height accommodates standard rolling office task chairs
Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Open plan office staff areas	Provides separated work zones for two employees with visual privacy
Call center and customer service floors	Compact footprint fits high-density seating layouts with integrated storage
Small business and startup offices	All-in-one design includes storage and dividers without separate cabinet purchases
Shared co-working spaces	Modular design allows reconfiguration for changing team sizes
Back office administration areas	Supports daily paperwork, computer work, and personal item storage
Home office dual work setups	Compact size fits dedicated home office spaces for two remote workers

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011	Office work tables safety and strength requirements, applicable to desk structure and load performance
EN 527-2:2016	Office work tables dimensional safety and ergonomic requirements, applicable to height and clearance
EN 13986:2004	Wood-based panels for construction and furniture, applicable to panel material performance

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021	Desk products performance standard, applicable to load, durability, and stability testing
ANSI/BIFMA X5.9-2019	Storage units performance standard, applicable to drawer and pedestal durability ratings
ANSI/BIFMA e3-2019	Furniture sustainability standard, applicable to material emissions and environmental criteria

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to panel work surfaces and storage components
GB/T 3327-2016	Technical requirements for office desks, applicable to work surface height, stability, and load ratings
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applicable to MFC/MDF panel components
GB/T 4897.3-2003	Particleboard specifications for furniture use, applicable to work surface and pedestal core material

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable to panel work surfaces and storage components；
2. GB/T 3327-2016：Technical requirements for office desks, applicable to work surface height, stability, and load ratings；
3. GB 18580-2017：Formaldehyde emission limits for wood-based panels, applicable to MFC/MDF panel components；
4. GB/T 4897.3-2003：Particleboard specifications for furniture use, applicable to work surface and pedestal core material；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · WS-2P-FTF-CTR-TEAL

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · WS-2P-FTF-CTR-TEAL

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · WS-2P-FTF-CTR-TEAL打开导出工具

页面快速操作

发布采购询价

产品描述

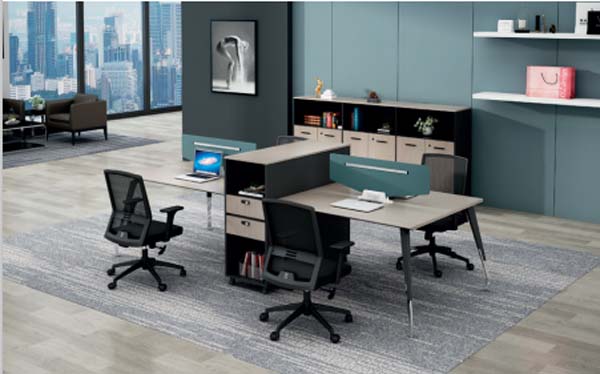

This unbranded 2-Person Face-to-Face Panel Office Workstation (model WS-2P-FTF-CTR-TEAL) delivers a compact, coordinated shared work solution for paired seating arrangements. Its symmetrical layout positions two equal work surfaces opposite one another across a central integrated storage pedestal, with matching teal privacy screens rising above each desk edge between users. Tapered angled powder-coated steel legs support each work surface, finished in a neutral tone that complements the dark grey central storage frame and beige drawer fronts, with clean linear lines that fit professional office aesthetics without unnecessary ornamentation. Work surfaces are constructed from E1 grade melamine-faced chipboard with 2mm PVC edge banding, built to resist stains and surface scratches consistent with standard office use. Each work surface sits at a standard desk height, with ample seated knee clearance for users, and supports a 90kg static load per individual work area, with a 150kg uniform distributed load capacity across the full top surface. The central pedestal is built from melamine-finished particleboard secured with zinc-plated steel cam locks and screws, with 5% spare hardware included for assembly. It holds two stacked lockable drawers per side, rated for 45kg per drawer pair with a 50000 open/close cycle lifespan, plus two lower open shelves for shared storage. The 350mm tall teal privacy screens feature a polyester fabric surface over an MDF core with aluminum trim, blocking direct eye contact between opposite seated users. Integrated 80mm ABS cable grommets feed to under-desk cable raceways for tidy power and data routing, while threaded adjustable feet on both legs and the storage pedestal compensate for uneven flooring. The modular panel connector system allows units to link to additional matching workstations to scale for larger team layouts. This workstation is suited for open plan office staff zones, high-density call center floors, small business and startup offices, flexible co-working spaces, back office administration areas, and dual-user home office setups, eliminating the need for separate storage cabinet purchases with its all-in-one design. Procurement teams should note the unit ships across multiple cartons, requires 40 minutes of assembly time per set, and comes with a 5-year product warranty. The maximum recommended user weight per seating position is 136kg, and the modular design supports long-term layout adjustments as team needs evolve.

2-Person Face-to-Face Panel Office Workstation with Central Storage and Teal Privacy Screens Specifications
