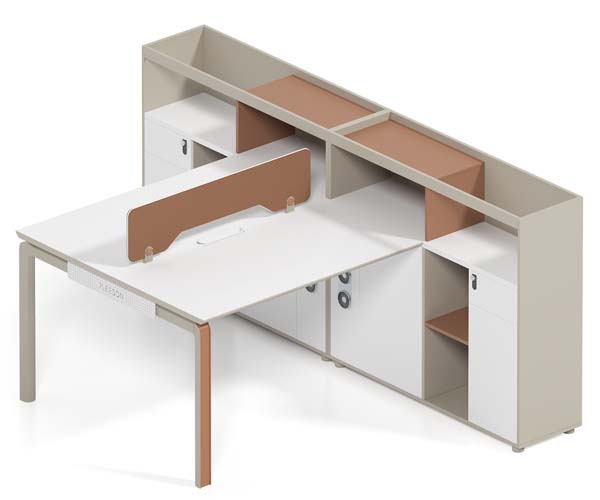

Two-Person L-Shaped Office Workstation with Integrated Hutch Storage and Privacy Divider Specifications

WS-2P-L-HUTCH-BT

代码:20TRYMV1
获取供应商报价
2026-08-27 17:03人气: 22
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

WS-2P-L-HUTCH-BT

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions (with hutch)2800 x 1800 x 1660 mm
Desktop work surface height750 mm
Desktop panel thickness25 mm
Knee clearance height under desktop670 mm
Per-user desktop width1200 mm
Desktop depth at front work zone610 mm
Overhead hutch depth370 mm
Overhead hutch shelf height from desktop910 mm
Central privacy divider height300 mm
Cable grommet diameter60 mm
Edge band thickness3 mm
Steel support leg section60 x 30 mm
Under-desk storage compartment height650 mm
Leveling glide adjustment range15 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total desktop static load capacity270 kg
Drawer slide cycle rating50000 cycles
Cabinet/drawer lock cylinder durability10000 cycles
Desktop surface abrasion resistance2000 cycles
Product net weight240 kg
Recommended maximum user weight per station136 kg
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface core18mm melamine-faced particleboard core
Work surface finishThermally fused matte laminate, stain and scratch resistant
Edge protection3mm thick high-impact PVC edge banding on all exposed panel edges
Support legs1.5mm thick rectangular steel tube with powder coated finish
Privacy divider panel18mm thick laminate panel matching desk accent color
Storage cabinet panels18mm thick melamine-faced particleboard with matching laminate finish
Drawer hardwareCold rolled steel full-extension ball bearing slides with zinc plating
Lock cylindersZinc alloy keyed cam locks for all storage compartments
Leveling feetReinforced nylon adjustable glides with steel threaded stems
Hutch shelf panels25mm thick laminate particleboard with color-matched terracotta accent finish
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Dual work zone layoutTwo adjacent equal-sized work positions separated by central privacy divider
Integrated lockable storageEach station has one lockable drawer and one lockable cabinet compartment for secure storage
Overhead hutch storageFull-length upper open and closed shelving running along the rear of the workstation
Cable management systemRecessed desktop cable port and under-desk routing channel for power and data cables
Adjustable levelingThreaded glides on all base contact points adjust to compensate for uneven floors
Full-extension drawer operationDrawers open fully to allow complete access to stored files and supplies
Modular assembly designKnock-down panel construction allows on-site assembly and reconfiguration
Knee clearance accessUnobstructed open space under front desktop edge for seated chair access
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office spacesProvides two dedicated work positions with privacy separation for staff seating in open offices
Small startup team work areasIntegrated storage and cable management creates a self-contained work unit for small teams
Administrative department zonesLockable storage accommodates file organization for administrative and clerical staff
Shared work hubsDual zones support hot-desking or shared work arrangements for rotating staff
Corporate staff renovation projectsNeutral two-tone beige and terracotta finish fits modern commercial office interior palettes
Two-person team workspacesCompact L-shaped layout fits in small office footprints while providing full work and storage capacity
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office work tables, safety and strength requirements, applicable to structural performance
EN 527-2:2016Office work tables, dimensional requirements, applicable to ergonomic height and clearance
EN 13722:2004Office furniture, storage units, strength and durability requirements, applicable to cabinetry
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products standard for safety, durability, and structural performance
ANSI/BIFMA X5.9-2019Storage units standard for strength, durability, and lock performance
ANSI/BIFMA e3-2019Furniture sustainability standard for material emissions and environmental impact
ANSI/BIFMA G1-2013Ergonomic guidelines for office furniture dimensions and clearance
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to panel construction and finish quality
GB/T 3327-2017Test methods for mechanical performance of office desks, applicable to load and stability testing
GB 18584-2001Indoor decoration material limit of harmful substances for wooden furniture, applicable to formaldehyde emission limits
GB/T 10357.1-2013Furniture mechanical performance test for table strength and durability, applicable to desktop load testing
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to panel construction and finish quality;
2. GB/T 3327-2017:Test methods for mechanical performance of office desks, applicable to load and stability testing;
3. GB 18584-2001:Indoor decoration material limit of harmful substances for wooden furniture, applicable to formaldehyde emission limits;
4. GB/T 10357.1-2013:Furniture mechanical performance test for table strength and durability, applicable to desktop load testing;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · WS-2P-L-HUTCH-BT

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · WS-2P-L-HUTCH-BT

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · WS-2P-L-HUTCH-BT打开导出工具

页面快速操作

发布采购询价

产品描述

The Two-Person L-Shaped Office Workstation with Integrated Hutch Storage and Privacy Divider (model WS-2P-L-HUTCH-BT) is an unbranded commercial-grade office furniture solution built for shared work settings. Its clean, modern L-shaped two-seat layout forms a compact self-contained work unit, with two equal-sized adjacent work positions separated by a central, color-matched privacy divider to minimize cross-user visual distraction. The full-length overhead hutch runs along the rear edge of the desk, combining open and closed shelving to keep frequently used items within easy reach without cluttering the primary work surface, finished in a neutral two-tone beige and terracotta palette that aligns with contemporary commercial interior design schemes. Constructed for long-term commercial use, the workstation features durable material selections across all components. Work surfaces and storage panels use melamine-faced chipboard with a thermally fused matte, stain- and scratch-resistant laminate finish, with all exposed panel edges protected by high-impact PVC edge banding. Support is provided by powder-coated rectangular steel tube legs, fitted with reinforced nylon adjustable glides with steel threaded stems to stabilize the unit on uneven flooring. Hardware includes cold rolled steel full-extension ball bearing drawer slides, zinc alloy keyed cam locks for all secured storage compartments, and lockable steel fasteners for structural stability. Key performance specifications support daily heavy use, including a total desktop static load capacity of 270 kg, 50,000-cycle rated drawer slides, 10,000-cycle lock cylinder durability, and 2,000-cycle abrasion resistance for work surfaces, with a recommended maximum user weight of 136 kg per station. Practical functionality is tailored to collaborative office needs: each user position includes one lockable drawer and one lockable cabinet for secure personal or document storage, drawers open fully to enable unobstructed access to contents, and a built-in cable management system with recessed desktop ports and under-desk routing channels keeps power and data cords organized and out of sight. The knock-down modular design supports on-site assembly, with a reference assembly time of 40 minutes per set, and allows for future reconfiguration as workspace needs shift. This workstation is suited for open plan office spaces, small startup team areas, administrative department zones, shared hot-desking hubs, two-person team workspaces, and corporate office renovation projects, as its compact footprint delivers full work and storage capacity without requiring excess floor space. For procurement, note that units ship as one set across multiple cartons, with a total packaged gross weight of 180 kg per set and total packaging volume of 1 cubic meter; plan for appropriate receiving, transport to installation site, and assembly resourcing to support smooth deployment.
