3-Person Curved Open Office Workstation with Teal Privacy Screens and Mobile Pedestals Specifications

WS-CURV3-TEAL-LW

代码:AGNETJV1
获取供应商报价
2026-08-27 18:12人气: 43
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

WS-CURV3-TEAL-LW

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall cluster footprint3400 x 1900 x 1250 mm
Work surface height750 mm
Privacy screen height above desktop500 mm
Per-position work surface width1200 mm
Per-position work surface depth740 mm
Under-desk knee clearance height680 mm
Under-desk knee clearance depth480 mm
Work surface panel thickness25 mm
Edge banding thickness2 mm
Steel leg wall thickness1.5 mm
Mobile pedestal dimensions600 x 420 x 600 mm
Cable grommet diameter60 mm
Leveling glide adjustment height10 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total product net weight120 kg
Per-work-surface static load capacity100 kg
Drawer slide cycle rating50000 cycles
Hinge cycle rating for pedestal doors80000 cycles
Surface abrasion resistance2000 cycles
Recommended maximum user weight per position120 kg
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface substrate25mm thick particleboard core
Work surface finishScratch-resistant light oak melamine laminate
Edge banding2mm thick PVC hot-melt edge banding
Leg frame1.5mm thick tapered powder-coated steel
Privacy dividersTeal fabric-wrapped MDF acoustic panel
Mobile pedestal carcass18mm thick melamine-faced particleboard
Pedestal hardwareZinc-plated steel drawer slides and recessed handles
Cable management components0.8mm thick steel cable trays and ABS plastic grommets
Floor glidesReinforced nylon threaded leveling glides
Pedestal casters50mm diameter swivel nylon casters
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seated work positions3 dedicated individual work zones separated by teal privacy screens
Privacy screening500mm high desktop-mounted dividers between adjacent positions
Personal storageOne 3-drawer mobile pedestal per position, lockable with casters
Cable managementUnder-desk steel cable trays with 60mm desktop grommets per position
Leveling adjustmentThreaded nylon glides on each leg with 10mm adjustment travel
Modular expandabilityCluster design supports connection to additional matching workstation units
Surface use suitabilityScratch/stain-resistant melamine top supports monitors, keyboards and documents
Pedestal mobilityFour 360-degree swivel casters per mobile pedestal
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Total number of shipping cartons5
Largest shipping carton dimensions1700 x 850 x 100 mm
Total shipped gross weight130 kg
Total shipping volume0.62 CBM
20ft container loading capacity36 units
40ft HQ container loading capacity84 units
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan office team zonesSuits 3-person project teams, administrative staff or shared departments in modern workspaces
Startup and co-working spacesModular curved layout provides personal space without closed cubicle isolation
Corporate administrative departmentsMatches standard ergonomic requirements for full-time seated desk work
Recommended pairingPairs with ergonomic mesh task chairs, 27inch monitors and desk accessories
Flooring compatibilitySuitable for low-pile carpet, luxury vinyl tile and polished concrete office floors
Color scheme suitabilityLight wood and teal palette coordinates with modern neutral and biophilic office interiors
Wiring compatibilitySupports under-desk power and data cabling for modern office IT setups
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-2:2002+A1:2019Applies to office work desk safety, strength and durability requirements for commercial use
EN 1335-1:2020Applies to dimensional compatibility with ergonomic office task chairs for seated use
EN 14073-2:2004Applies to storage furniture safety and strength requirements for mobile pedestals
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Applies to desk products: static load, stability and durability performance criteria
ANSI/BIFMA X5.9-2019Applies to mobile storage pedestal performance, cycle and load requirements
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Applies to office desk size, stability and strength requirements for general office furniture
GB/T 3327-2016Applies to storage unit performance requirements for under-desk mobile pedestals
GB 18584-2001Applies to formaldehyde emission limits for wood-based furniture components
GB/T 4897.3-2003Applies to particleboard substrate quality requirements for furniture use
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Applies to office desk size, stability and strength requirements for general office furniture;
2. GB/T 3327-2016:Applies to storage unit performance requirements for under-desk mobile pedestals;
3. GB 18584-2001:Applies to formaldehyde emission limits for wood-based furniture components;
4. GB/T 4897.3-2003:Applies to particleboard substrate quality requirements for furniture use;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · WS-CURV3-TEAL-LW

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · WS-CURV3-TEAL-LW

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · WS-CURV3-TEAL-LW打开导出工具

页面快速操作

发布采购询价

产品描述

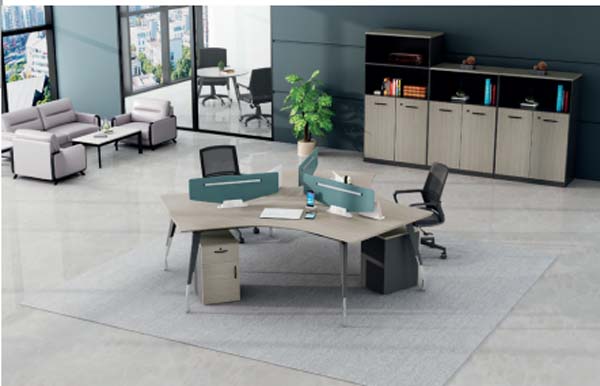

This 3-person curved open office workstation features a flowing cluster layout defined by soft arcing edges, creating a connected yet distinct arrangement for three seated users. Warm light oak finished work surfaces are paired with rich teal privacy dividers that sit between adjacent positions, establishing clear visual separation between individual work zones without the enclosed feel of traditional cubicles. The tapered, powder-coated steel legs lend a streamlined, modern silhouette that keeps sightlines open across the workspace, supporting a collaborative open-plan atmosphere. The workstation’s durable construction pairs 25mm thick melamine-faced particleboard work surfaces with scratch-resistant laminate and 2mm thick PVC hot-melt edge banding to stand up to daily office use. Tapered 1.5mm powder-coated steel legs support each work zone, while reinforced nylon threaded leveling glides at each leg base allow for stable placement on uneven flooring, with 10mm of adjustment travel. Privacy dividers are built from teal fabric-wrapped MDF acoustic panels, and each user position includes a matching steel-frame mobile pedestal constructed from melamine-faced particleboard, fitted with zinc-plated steel hardware, lockable drawers, and rolling casters for flexible under-desk storage. Integrated cable management components include under-desk 0.8mm thick steel cable trays and 60mm desktop grommets per position to keep power and data cords organized and out of sight. Each work zone is sized to support comfortable full-time seated work, with ample knee clearance to accommodate standard ergonomic task seating. The scratch and stain-resistant melamine work surfaces easily support monitors, keyboards, and physical documents, while the 500mm high desktop dividers reduce visual distractions between adjacent users. The modular cluster design supports connection to additional matching workstation units, allowing teams to scale workspace configurations as headcount changes. Each mobile pedestal offers three drawers of personal, lockable storage that can be repositioned to suit user preference. This workstation is well suited for open-plan corporate office team zones, supporting three-person project teams, administrative staff, or shared department groups. Its curved, open layout also makes it an ideal fit for startup offices and co-working spaces, balancing personal focus space with the connected feel of collaborative work environments. The light wood and teal color palette coordinates seamlessly with modern neutral and biophilic interior schemes, and the unit is compatible with low-pile carpet, luxury vinyl tile, and polished concrete flooring. It pairs naturally with ergonomic mesh task chairs, standard desktop monitors, and common desk accessories. For procurement planning, note the unit ships in five separate cartons, with a total shipped gross weight appropriate for standard commercial delivery services. The modular design allows for flexible layout planning, and bulk shipping is optimized for standard container loading, making it suitable for both small office fit-outs and large-scale workspace deployments. When planning installations, confirm sufficient open floor space to accommodate the curved cluster footprint, and account for additional matching units if expanding team zones is a near-term requirement.
