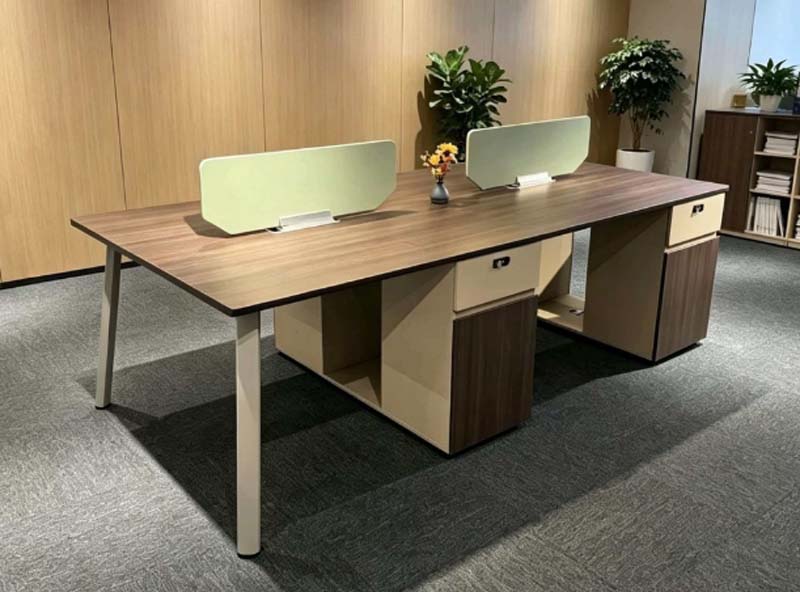

商品供应商Face-to-Face 2-Person Office Workstation Desk with Desktop Dividers and Integrated Storage Pedestals,Particle‑board (PB)
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall footprint | 1400 x 1200 x 750 mm | |
|---|---|---|
| Desktop panel thickness | 25 mm | |
| PVC edge banding thickness | 2 mm | |
| Per-user work surface depth | 600 mm | |
| Privacy divider height above desktop | 400 mm | |
| Knee clearance height under desktop | 650 mm | |
| Knee clearance width per user | 600 mm | |
| Storage pedestal dimensions per user | 400 x 600 x 680 mm | |
| Metal support leg section | 60 x 30 x 1.2 mm | |
| Cable grommet diameter | 60 mm | |
| Central open cubby dimensions | 400 x 300 x 400 mm | |
| Drawer inner dimensions per pedestal | 350 x 500 x 120 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Desktop static uniform load | 70 kg | |
|---|---|---|
| Single drawer static load capacity | 25 kg | |
| Drawer slide cycle durability | 50000 cycles | |
| Cabinet hinge cycle durability | 80000 cycles | |
| Net product weight | 100 kg | |
| Recommended maximum user weight per station | 120 kg | |
| Surface abrasion resistance | 2000 cycles | |
| Privacy divider noise reduction | 25 dB | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Desktop panel | 25mm E1-grade melamine-faced particleboard, walnut wood grain finish | |
|---|---|---|
| Support legs | 1.2mm thick powder-coated light grey steel tube with anti-slip floor glides | |
| Desktop privacy dividers | Light green rigid panel with matte finish, fixed metal mounting brackets | |
| Storage pedestal panels | 18mm melamine-faced particleboard with two-tone walnut and light beige finish | |
| Edge banding | 2mm thick PVC edge sealing on all exposed panel edges | |
| Drawer locks | Zinc alloy keyed cam locks, one lock per user pedestal drawer | |
| Drawer slides | Cold-rolled steel three-quarter extension ball bearing slides | |
| Cable management grommets | ABS plastic round cable outlets at each work station | |
| Hardware fasteners | Zinc-plated steel screws and connecting cam locks for KD assembly | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Workstation layout | Two opposite seated positions separated by center-mounted privacy dividers | |
|---|---|---|
| Storage per user | One lockable upper drawer plus one lower enclosed cabinet per seat | |
| Central storage | Open shared cubby shelf between the two pedestals for shared items | |
| Cable management | Built-in cable grommets to route power and data cables off the work surface | |
| Surface performance | Melamine finish resists scratches, water rings and everyday stains | |
| Assembly type | Knock-down flat-pack assembly with cam lock connections | |
| Privacy separation | Fixed desktop dividers block direct line of sight between opposite users | |
| Floor protection | Adjustable anti-slip glides on legs and pedestals to level on uneven carpet | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
推荐空间 / 目标用户 / 使用方式
| Open plan office areas | Two-person workstation for staff seating in open office layouts | |
|---|---|---|
| Call center and admin zones | Suitable for high-density task work requiring divided workspaces | |
| Small startup offices | Compact footprint fits small office spaces without dedicated cubicles | |
| Project team work areas | Face-to-face layout supports quick communication between adjacent team members | |
| Recommended matching seating | Pair with standard height-adjustable task chairs with 520 mm seat height |
欧洲市场准入与化学品要求
| EN 527-1:2011 | Office worktables and desks, safety and dimensional requirements for task use | |
|---|---|---|
| EN 527-2:2016 | Office worktables, mechanical safety and stability performance requirements | |
| EN 13986:2004 | Wood-based panels for construction, formaldehyde emission E1 class requirement |
美国及加拿大家具标准
| ANSI/BIFMA X5.5-2021 | Desk products standard, covering safety, strength and durability for office use | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units standard, applicable to integrated drawer pedestal performance |
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel desk construction | |
|---|---|---|
| GB/T 3327-2017 | Performance requirements for office desks and workstations, applicable to load and stability | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, E1 grade requirement for indoor use |
本产品须满足以下技术参数要求: 1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to panel desk construction; 2. GB/T 3327-2017:Performance requirements for office desks and workstations, applicable to load and stability; 3. GB 18580-2017:Formaldehyde emission limits for wood-based panels, E1 grade requirement for indoor use; 最终交付参数、检测报告和验收标准以双方采购合同为准。
