Height-Adjustable L-Shaped Office Workstation Desk with Side Storage Cabinet and Divider Screen Specifications

HAD-L180-SC-DS

代码:UNPELLV1
获取供应商报价
2026-08-27 17:43人气: 31
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

HAD-L180-SC-DS

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall workstation dimensions1830 x 1220 x 1290 mm
Desktop panel thickness65 mm
Minimum seated work surface height710 mm
Knee clearance width under main work surface1200 mm
Knee clearance depth under main work surface600 mm
Side storage cabinet dimensions425 x 600 x 600 mm
Privacy divider screen height400 mm
Cable grommet diameter60 mm
Drawer interior usable depth450 mm
Open storage cubby clear height250 mm
PVC edge banding thickness2 mm
Steel lift column wall thickness2 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Desktop static load capacity120 kg
Lift mechanism full-load cycle rating50000 cycles
Drawer slide cycle durability50000 cycles
Maximum lift operation noise45 dB
Net workstation weight120 kg
Laminated surface abrasion resistance2000 cycles
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Work surface coreP2 grade particleboard substrate
Work surface finishThermally fused grey woodgrain laminate
Frame and lift columnsPowder-coated cold-rolled steel
Edge trimImpact-resistant black PVC edge banding
Privacy screen core8 mm thick rigid fiberboard
Privacy screen facingDark grey woven fabric wrap
Drawer hardwareZinc-plated steel ball-bearing slides
Storage cabinet panelsMelamine-faced engineered wood
Cabinet support feetInjection-molded nylon glides
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Height adjustment mechanismElectric motor lift with smooth vertical travel
Locking storage drawerTop drawer fitted with keyed cam lock
Open storage shelvesTwo-tier fixed open cubbies on cabinet side
Privacy divider functionCentral mounted screen blocks direct line of sight
Cable managementDesktop grommets route wires to under-desk tray
File drawer configurationLower drawer sized for hanging file folders
Adjustment controlUp/down switch mounted under work surface
Leveling adjustmentNylon glides on cabinet and leg base
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office workstationsSuitable for multi-person office layouts with integrated divider screens
Executive private office useL-shaped layout provides ample work and storage space for management staff
Home office workspaceCompact footprint fits residential office spaces for remote work use
Startup co-working spacesConfigurable modular design supports flexible shared workspace setups
Small business administrative officesAll-in-one work and storage solution reduces separate furniture procurement costs
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office work tables safety and strength requirements
EN 527-2:2016Office work tables dimensional safety requirements
EN 1335-2:2009Office furniture storage unit safety requirements
EN 12521:2015Furniture hardware drawer slide performance standard
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Office desk products performance test standard
ANSI/BIFMA X5.9-2019Storage furniture performance test standard
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Desk, chair and bench dimensional standard for office furniture
GB/T 3327-2016Office storage furniture performance test standard
GB 18584-2001Formaldehyde emission limit for interior wooden furniture
GB/T 10357.1-2013Furniture mechanical performance test for tables
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Desk, chair and bench dimensional standard for office furniture;
2. GB/T 3327-2016:Office storage furniture performance test standard;
3. GB 18584-2001:Formaldehyde emission limit for interior wooden furniture;
4. GB/T 10357.1-2013:Furniture mechanical performance test for tables;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · HAD-L180-SC-DS

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · HAD-L180-SC-DS

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · HAD-L180-SC-DS打开导出工具

页面快速操作

发布采购询价

产品描述

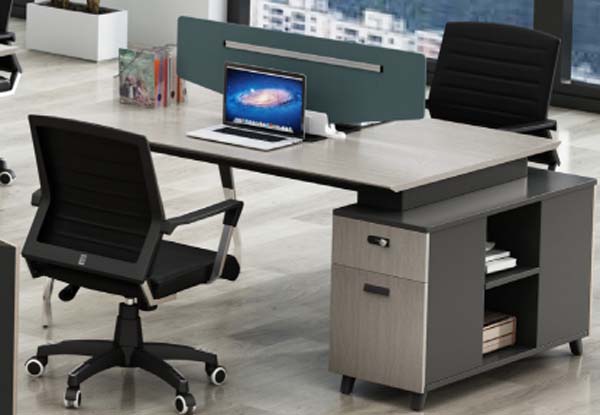

The Height-Adjustable L-Shaped Office Workstation Desk with Side Storage Cabinet and Divider Screen (model HAD-L180-SC-DS) features a clean, modern L-shaped layout finished in a cohesive neutral grey palette. Its grey woodgrain work surface is paired with matte black edge trim, a dark grey fabric-wrapped central privacy screen, and a matching integrated side storage cabinet, creating a streamlined, professional visual profile that integrates seamlessly with contemporary interior schemes. The central 400mm tall divider splits the work surface to reduce visual distraction without blocking overhead light, while the attached cabinet sits flush along the return edge of the desk to avoid protruding into walkways. A full 1200mm of knee clearance width and 600mm of depth under the main work surface ensures comfortable legroom for users of varying builds, with a minimum seated work surface height of 710mm to support standard ergonomic seated postures. The desk is constructed for long-term commercial use, with a 65mm thick work surface built on a P2 grade particleboard substrate, finished with thermally fused grey woodgrain laminate rated for 2000 cycles of abrasion resistance, and trimmed with impact-resistant black PVC edge banding to protect against daily knocks and wear. Its height-adjustable frame and lift columns are formed from powder-coated cold-rolled steel, supporting a 120kg static desktop load and 150kg uniformly distributed load, with an electric lift mechanism rated for 50000 full-load cycles and operating at a maximum noise level of 45 dB. The central privacy screen uses an 8mm rigid fiberboard core wrapped in dark grey woven fabric, while the attached storage cabinet is built from melamine-faced engineered wood, resting on injection-molded nylon glides to prevent floor scuffing. Cabinet drawers operate on zinc-plated steel ball-bearing slides rated for 50000 open-close cycles. Functionality is designed for versatile daily work use: the electric lift enables smooth, tool-free height adjustment via an under-desk up/down switch, supporting seamless transitions between seated and standing work positions. The integrated storage cabinet includes a top drawer fitted with a keyed cam lock for securing sensitive documents or personal items, a lower drawer sized to hold hanging file folders, and two fixed open cubbies for easy access to frequently used supplies. 60mm diameter desktop cable grommets route cords to an under-desk tray to reduce surface clutter, while the centrally mounted divider blocks direct cross-desk line of sight to support individual focus. This workstation is well suited for open-plan multi-person office layouts, executive private offices, residential home workspaces for remote work, flexible startup co-working spaces, and small business administrative offices, as its all-in-one design eliminates the need for separate storage and privacy panel purchases. When procuring, note that each unit is shipped across multiple cartons with a total packaged gross weight of 180kg and total packaging volume of 1 cubic meter, with a reference assembly time of 40 minutes per set to plan for on-site installation and receiving logistics. No branded supplier support is included with this unbranded unit, so procurement teams should account for in-house or third-party assembly coordination as needed.
