Name: Two-Tone 4-Person Modular Staff Workstation Desk with Attached Storage Credenza
Brand: Fanshidun
SKU: XN50HX

纠错时间

修改字段

原参数

修改后参数

说明 / 状态

暂无参数纠错记录，发现错误可点击行末旗标提交

PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	2800 × 1230 × 1100 mm
Work surface height	760 mm
Per-person work surface width	1400 mm
Work surface depth	700 mm
Attached credenza depth	400 mm
Open shelf clearance height	320 mm
Filing cabinet internal height	280 mm
Privacy divider height	350 mm
Under-desk knee clearance height	680 mm
Leg cross-section size	60 x 30 mm
Edge banding thickness	2 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Total static worktop load capacity	400 kg
Worktop scratch resistance	2000 cycles
Recommended maximum user count	4 people
Surface water and stain resistance	Class 2
Product warranty period	5 years
Divider sound transmission class	20 dB
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Worktop panel	50 mm thick E1-grade melamine-faced particleboard
Edge trim	2 mm thick PVC impact-resistant edge banding
Support legs	2 mm thick powder-coated angled steel tubing
Privacy divider	30 mm thick fabric-wrapped high-density fiberboard panel
Credenza carcass	25 mm thick two-tone melamine-faced particleboard
Drawer and cabinet fronts	18 mm thick powder-coated light gray MDF panels
Drawer slides	Cold-rolled steel full-extension soft-close slides
Cabinet locks	Keyed cam locks per lockable drawer and filing cabinet
Adjustable feet	10 mm diameter nylon leveling feet
Cable grommets	ABS plastic cable management ports on work surface
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Modular extension capability	Connects to additional workstation units for open-plan cluster expansion
Privacy divider function	Provides seated visual screening and basic noise reduction between adjacent work positions
Open shelf storage	Three tiers of open shelving for frequently accessed documents, binders and desk accessories
Lockable drawer storage	One key-lockable drawer for secure storage of personal items and small office supplies
Filing cabinet storage	Two hanging file cabinets sized for A4/folio suspension files for organized document archive
Cable management	Integrated under-desk cable channels and work surface grommets for power and data cord routing
Floor leveling adjustment	15 mm height adjustment via nylon feet on credenza base to compensate for uneven floors
Soft-close drawer operation	All drawers and file cabinets use soft-close slides to prevent slamming during use
Lockable drawer internal height	120 mm
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Open-plan corporate offices	Supports 4-person team clusters with integrated storage for daily collaborative and individual work
Co-working flexible workspaces	Modular design allows reconfiguration to suit changing team size and layout needs
Start-up office environments	Integrated storage reduces need for separate filing cabinets to optimize floor space
Administrative and operations departments	Filing drawers and open shelves support document-heavy administrative workflow
Project team work zones	Low dividers balance visual privacy with easy cross-team communication
Educational institution staff rooms	Durable melamine surfaces withstand high-frequency daily use in multi-user settings

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011	Office worktables safety and strength requirements, applies to commercial desk performance
EN 527-2:2016	Office worktables dimensional safety requirements, applies to work height and clearance
EN 1335-1:2020	Office furniture dimensional coordination for seated workstations
EN 71-3:2019	Safety of furniture migration of harmful elements, applies to surface finish materials

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021	Desk products performance standard for static load and durability testing
ANSI/BIFMA X5.9-2019	Storage units performance standard for drawer and cabinet load testing
ANSI/BIFMA e3-2019	Furniture sustainability standard for material and emission compliance

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017	General technical requirements for wooden furniture, applies to panel desk structural integrity
GB/T 3327-2021	Performance test methods for desks, applies to worktop load and stability verification
GB 18580-2017	Formaldehyde emission limits for wood-based panels, applies to MFC/MDF panel materials
GB/T 4897-2015	Specification for particleboard, applies to worktop and carcass panel material

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017：General technical requirements for wooden furniture, applies to panel desk structural integrity；
2. GB/T 3327-2021：Performance test methods for desks, applies to worktop load and stability verification；
3. GB 18580-2017：Formaldehyde emission limits for wood-based panels, applies to MFC/MDF panel materials；
4. GB/T 4897-2015：Specification for particleboard, applies to worktop and carcass panel material；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · MSW-LB-4P-2800

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · MSW-LB-4P-2800

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MSW-LB-4P-2800打开导出工具

页面快速操作

发布采购询价

产品描述

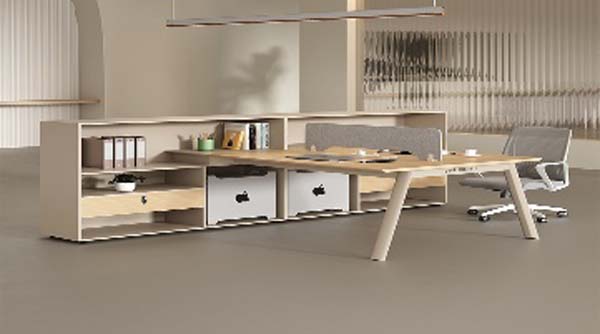

The Fanshidun MSW-LB-4P-2800 is a two-tone modular staff workstation desk built to accommodate four users in open-plan layouts, with a fully integrated attached storage credenza that eliminates the need for separate standalone office storage. The unit’s open-plan layout pairs individual work zones with a low privacy divider between adjacent positions, supported by angled powder-coated metal legs that lend a streamlined, modern visual profile without obstructing light or sightlines across cluster layouts. The two-tone finish creates a subtle, professional visual distinction between work surfaces and storage components, suited to contemporary commercial interiors. Each work surface is constructed from 50 mm thick E1-grade melamine-faced particleboard, finished with 2 mm thick impact-resistant PVC edge banding to protect against daily wear. Support legs are formed from 2 mm thick powder-coated angled steel tubing, while the attached credenza carcass uses 25 mm thick two-tone melamine-faced particleboard. Drawer and cabinet fronts are made of 18 mm thick powder-coated light gray MDF, fitted with cold-rolled steel full-extension soft-close slides and keyed cam locks for every lockable storage compartment. The 30 mm thick fabric-wrapped high-density fiberboard privacy divider sits between work positions, and the base includes 10 mm diameter nylon leveling feet to compensate for uneven floor surfaces. Practical functions are tailored to shared work environments: the low privacy divider delivers seated visual screening and basic noise reduction, while the credenza includes three tiers of open shelving for frequently accessed documents and supplies, one lockable drawer for personal items, and two hanging file cabinets sized for A4/folio suspension files. Integrated under-desk cable channels and work surface grommets keep power and data cords organized, and the modular design supports connection to additional units for expanded open-plan clusters. The total static worktop load capacity reaches 400 kg, with melamine surfaces rated for 2000 cycles of scratch resistance and Class 2 water and stain resistance, backed by a 5-year product warranty. This workstation is well suited for open-plan corporate offices, flexible co-working spaces, startup offices, administrative and operations departments, project team work zones, and educational institution staff rooms, balancing personal privacy with easy cross-user communication while optimizing floor space. For procurement, note each unit ships in two cartons, requires 40 minutes of assembly per set, and is delivered as a complete four-position configuration that can scale to larger clusters as team needs evolve.

Two-Tone 4-Person Modular Staff Workstation Desk with Attached Storage Credenza Specifications
