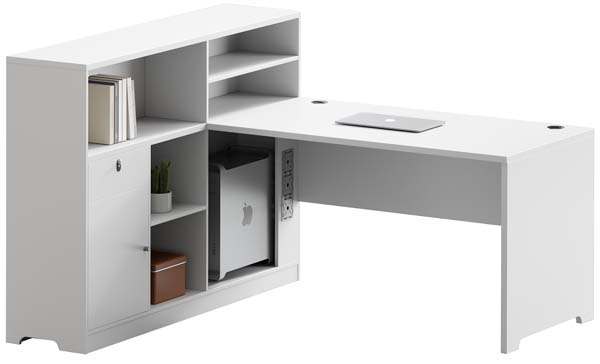

商品供应商Light Gray L-Shaped Home Office Desk with Integrated Storage Hutch and CPU Compartment，18mm particleboard core with thermally fused matte light gray laminate
可联系供应商获取生产周期与报价。
PRODUCT MODULE 01 / 06
基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源：工厂资料结构化字段，最终以实测值为准
| 产品外部尺寸（宽 × 深 × 高） | 1830 × 1300 × 1830 mm | |
|---|---|---|
| Work surface height | 760 mm | |
| Main work surface depth | 600 mm | |
| Knee clearance height under desk | 680 mm | |
| Knee clearance width | 800 mm | |
| CPU compartment internal dimensions | 250 x 500 x 480 mm | |
| Hutch shelf depth | 300 mm | |
| Lower open shelf height | 300 mm | |
| Worktop panel thickness | 25 mm | |
| Edge banding thickness | 2 mm | |
| Cable grommet diameter | 60 mm | |
| Support panel wall thickness | 18 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源：产品性能数据，采购前请核对具体测试口径
| Desktop static load capacity | 91 kg | |
|---|---|---|
| Desk net weight | 68 kg | |
| Recommended user weight capacity | 136 kg | |
| Drawer/cabinet hinge cycle rating | 80000 cycles | |
| Laminate surface abrasion resistance | 2000 cycles | |
| Cable tray maximum load | 5 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源：以工厂材质清单与验货报告为准
| Worktop surface | 18mm particleboard core with thermally fused matte light gray laminate | |
|---|---|---|
| Cabinet side/back panels | 15mm MDF core with matching matte laminate finish | |
| Cabinet door | 18mm engineered wood with matching laminate, keyed cam lock | |
| Shelves (hutch and lower) | 18mm laminated engineered wood, fixed position | |
| Support base feet | Injection-molded plastic adjustable glides | |
| Cable grommets | ABS plastic 60mm diameter wire grommets | |
| Cabinet hardware | Zinc-plated steel hinges, steel lock cylinder, steel connecting screws | |
| Edge banding | 2mm PVC edge banding matching finish color | |
| CPU compartment interior | Laminated engineered wood side panels, open front access | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源：功能配置参数，以供应商正式规格为准
| Cable management | Two 60mm surface grommets route monitor/laptop power and data cables | |
|---|---|---|
| Locked storage | One key-locked lower cabinet door secures private office supplies | |
| CPU storage | Dedicated open side compartment houses full-size desktop computer tower | |
| Open display storage | Five fixed open shelves across upper hutch and lower return hold books and decor | |
| Level adjustment | Plastic glide feet at base corners adjust for uneven floor surfaces | |
| Work surface configuration | Fixed L-shaped corner layout provides extended workspace for peripherals | |
| Anti-tip safety | Wall anchor hardware secures tall hutch unit to prevent tipping | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源：外贸报价与装柜测算参考
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源：依据产品结构与品类整理的推荐应用场景
| Home office workspace | Fits compact corner positions for remote work and study use | |
|---|---|---|
| Small business office | Serves as a single-user workstation with integrated storage to save floor space | |
| Student study space | Provides shelf storage for books and supplies plus dedicated space for a desktop PC | |
| Recommended seating | Pairs with standard mid-back office chairs with 680mm maximum seat height | |
| Surface use case | Supports laptop, single monitor, keyboard and small office accessories within load rating |
STANDARD S1
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable for ergonomic desk evaluation | |
|---|---|---|
| EN 14749:2016 | Domestic and kitchen storage units safety requirements, applicable to hutch storage | |
| EN 12521:2015 | Furniture strength durability stability for domestic tables, applicable to worktop performance |
STANDARD S2
北美市场采购验货参考 * ANSI/BIFMA 标准
美国及加拿大家具标准
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.5 |
|---|
STANDARD S3
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel desk construction | |
|---|---|---|
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable to desk core panel specification | |
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, required for indoor furniture acceptance |
招标文件标准化描述文本
本产品须满足以下技术参数要求： 1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable to panel desk construction； 2. GB/T 4897.3-2003：Particleboard for furniture use, applicable to desk core panel specification； 3. GB 18580-2017：Formaldehyde emission limit for wood-based panels, required for indoor furniture acceptance； 最终交付参数、检测报告和验收标准以双方采购合同为准。
