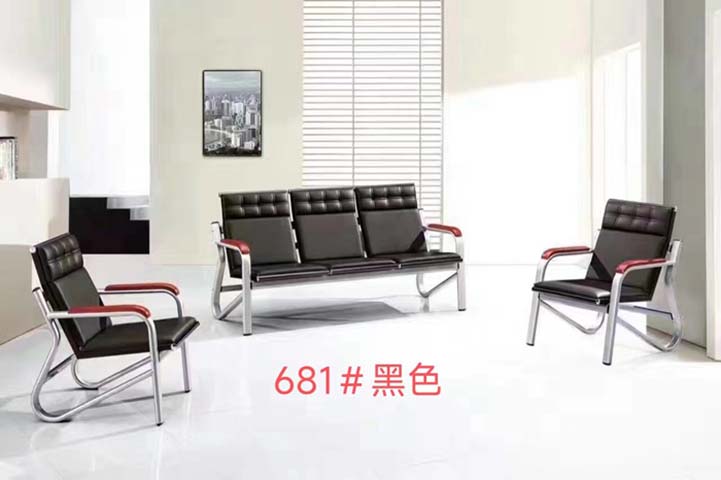

Commercial Office Waiting Area Seating Set 1+1+3 Configuration Specifications

WS-681-BLK

代码:A78X67V1
获取供应商报价
2026-09-06 14:37人气: 21
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

WS-681-BLK

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall three-seater unit dimensions2200 x 830 x 860 mm
Overall single armchair dimensions930 x 830 x 860 mm
Seat height from floor450 mm
Seat depth per position500 mm
Backrest height above seat420 mm
Armrest height above seat220 mm
Armrest top width70 mm
Frame tube diameter32 mm
Seat cushion thickness80 mm
Backrest cushion thickness60 mm
Set configuration footprint3200 x 2400 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total set seating capacity5 people
Static load per seat position150 kg
Total set net weight95 kg
Seat foam density45 kg/m³
Foam rebound rate40%
Upholstery abrasion resistance50000 Martindale cycles
Frame static load rating450 kg
Product warranty period3 years
Available color options1 color (black)
Seat width per single occupant position580 mm
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholstery1.0mm thick black PU faux leather
Seat cushion fillHigh-density polyurethane foam
Backrest cushion fillHigh-density polyurethane foam with tufted button detailing
Structural frameChrome-plated cold-rolled steel tube, 1.5mm wall thickness
Armrest top capsReddish-brown wood-grain molded panel with padding
Armrest support structureChrome-plated steel tube integrated with main frame
Frame floor glidesNon-slip rubber foot pads
Frame surface treatmentMirror polished chrome plating
Seam stitching specification8 stitches per inch
Internal support board12mm thick multi-layer plywood under cushions
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seating structureFixed stationary cantilever sled frame, no moving adjustment parts
Backrest functionFixed 105-degree angled backrest for upright waiting posture
Frame flex functionCantilever steel frame provides mild flexible bounce when seated
Armrest functionFixed padded arm supports with wood-tone caps for arm rest
Assembly requirementKnock-down flat pack assembly with bolted frame connections
Floor protectionRubber glides isolate metal frame from hard flooring, prevent scratches
Arrangement flexibilitySeparate three-seater and single chairs allow custom waiting area layouts
Cleaning featureSmooth PU leather surface wipes clean with standard commercial cleaning agents
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Office reception lobbiesSuitable for visitor waiting areas in corporate office buildings, high-traffic durable construction
Government service hallsAppropriate for public service waiting zones, easy to clean PU surface and robust frame
Medical clinic waiting areasSuitable for outpatient waiting spaces, disinfectable upholstery and stable fixed seating
Bank and financial branch lobbiesDesigned for customer waiting areas, professional formal appearance matches commercial interiors
School administrative officesApplicable for parent visitor and meeting waiting areas, simple modern design fits education spaces
Hotel business centersSuitable for guest waiting in business lounges, polished chrome finish complements contemporary interiors
Small conference meeting spacesUsable for breakout seating adjacent to meeting rooms, upright posture supports short discussions
Recommended Matching Desk Size2.4 m executive desk
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2000Office furniture - office work chair dimensions, applies as reference for seat dimensions
EN 15373:2007Furniture - seating for non-domestic use, strength and durability requirements
EN 1022:2005Domestic and non-domestic seating - determination of stability
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.4-2019Lounge and public seating - performance requirements for commercial use
ANSI/BIFMA X5.1-2017General purpose office chairs - reference for structural durability benchmarks
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to wood armrest components
GB/T 3325-2017General technical requirements for metal furniture, applicable to steel frame structure
GB 18584-2001Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to wood armrest components;
2. GB/T 3325-2017:General technical requirements for metal furniture, applicable to steel frame structure;
3. GB 18584-2001:Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · WS-681-BLK

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · WS-681-BLK

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · WS-681-BLK打开导出工具

页面快速操作

发布采购询价

产品描述

The WS-681-BLK commercial office waiting area seating set uses a 1+1+3 configuration that includes one three-seater bench unit and two standalone single armchairs, creating a balanced formal visual profile suited to professional environments. Its design features clean linear lines, a mirror-polished chrome cantilever sled frame, and tufted backrest detailing, with warm reddish-brown wood-tone padded armrest caps that add subtle textural contrast to the smooth matte black upholstery. The separate modular units support custom layout arrangements, allowing teams to adapt seating placement to fit unique floor plans without fixed connected constraints. Each seat position has consistent seat height, depth, and backrest proportions, with a fixed 105-degree backrest angle shaped to support comfortable upright waiting posture. The cantilever frame delivers mild flexible bounce when occupied, and integrated non-slip rubber glides isolate the metal structure from hard flooring to prevent surface scratches. All armrests are fixed in place, with padded support aligned to a consistent height above seat level for comfortable resting. The set is delivered as knock-down flat pack components with bolted frame connections, requiring straightforward on-site assembly. Construction prioritizes long-term durability for high-traffic use: the structural frame is built from cold-rolled steel tube with a thick mirror chrome plating, supporting high static load capacity across all positions. Seat and back cushions use high-density polyurethane foam fill, with tufted button detailing on backrests for a tailored finish, upholstered in smooth black PU faux leather with tightly stitched seams for a neat, professional appearance. The PU surface is easy to wipe clean and suitable for regular disinfection, supporting use in spaces requiring frequent surface maintenance. The upholstery delivers strong abrasion resistance for sustained daily use across high foot traffic locations. This seating set is well suited for a broad range of commercial and semi-public spaces, including corporate office reception lobbies, government service hall waiting zones, outpatient medical clinic waiting areas, bank and financial branch customer lobbies, school administrative office visitor zones, and hotel business center lounges. Its polished, modern formal aesthetic aligns with a wide range of contemporary commercial interior palettes. When planning procurement, buyers can note the set ships across two cartons, with clear assembly guidance supporting efficient installation. The compact flat pack dimensions support optimized shipping and storage before installation, and the high load capacity per seat accommodates diverse user needs across shared public waiting spaces. The fixed stationary design eliminates fragile moving adjustment parts, reducing long-term maintenance requirements for facility management teams.
