基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源:工厂资料结构化字段,最终以实测值为准
| 产品外部尺寸(宽 × 深 × 高) | 2200 × 880 × 850 mm | |
|---|---|---|
| Seat height from floor | 420 mm | |
| Seat depth (usable) | 580 mm | |
| Armrest height from seat surface | 200 mm | |
| Backrest height from seat surface | 430 mm | |
| Coffee table tabletop thickness | 25 mm | |
| Coffee table vertical support bar diameter | 16 mm | |
| Sofa metal leg height | 120 mm | |
| Leg clearance under sofa base | 100 mm | |
| Seat cushion thickness | 120 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm |
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源:产品性能数据,采购前请核对具体测试口径
| 3-seat sofa total weight | 95 kg | |
|---|---|---|
| Single armchair total weight | 38 kg | |
| Coffee table total weight | 32 kg | |
| Per-seat static load capacity | 150 kg | |
| Total seating capacity | 5 persons | |
| Foam density (seat cushions) | 45 kg/m³ | |
| Foam density (backrests) | 30 kg/m³ | |
| Upholstery abrasion resistance (Martindale) | 50000 cycles | |
| Recommended product warranty | 3 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源:以工厂材质清单与验货报告为准
| Seat and back upholstery | Dark brown smooth faux leather (PU leather), 1.2mm thickness | |
|---|---|---|
| Seat cushion padding | High-density polyurethane foam, 120mm thickness, 45kg/m³ density | |
| Backrest padding | Medium-density polyurethane foam, 80mm thickness, 30kg/m³ density | |
| Internal sofa frame | Kiln-dried engineered hardwood + 15mm thick multi-layer plywood, corner reinforced with steel brackets | |
| Sofa support legs | 1.2mm thick matte black powder-coated carbon steel, tapered square profile | |
| Coffee table tabletop | 25mm thick particleboard core with walnut wood grain melamine veneer, edge-banded for impact resistance | |
| Coffee table frame | 20x40mm rectangular matte black powder-coated carbon steel tubing with 16mm diameter vertical support slats | |
| Armrest padding | 40mm thick medium-density foam wrapped under matching faux leather | |
| Seat base support | 4mm thick sinuous steel spring webbing secured to internal frame | |
| Frame surface treatment (sofa legs and table frame) | Matte black electrostatic powder coating, scratch-resistant finish | |
| Seam stitching construction | Polyester bonded thread with 8mm seam pitch, double-stitched at high-stress seat and armrest junctions | |
| Leg floor glides | 8mm thick injection-molded non-marking polyethylene glides, press-fit into leg bases |
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源:功能配置参数,以供应商正式规格为准

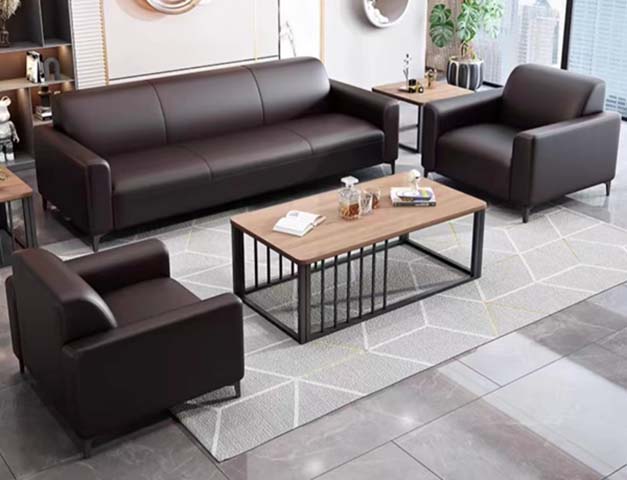

| Seating configuration | Fixed 3+1+1 modular layout designed to face a central coffee table for formal guest reception | |
|---|---|---|
| Surface maintenance | Smooth faux leather upholstery can be wiped clean with mild detergent and soft cloth to remove spills and stains | |
| Floor protection | All metal legs include non-marking plastic glide feet to prevent scratching hard floor surfaces | |
| Coffee table storage clearance | Open steel frame base with 425mm under-table clearance allows temporary placement of bags or items beneath the tabletop | |
| Structural stability | Four outrigger steel legs per seating unit distribute weight evenly to prevent tipping during normal use | |
| Seating ergonomics | 420mm seat height and 580mm seat depth support upright seated posture for short to medium waiting durations | |
| Color matching | All seating units feature uniform dark brown upholstery and black metal legs to coordinate with the black-framed walnut-effect coffee table for a cohesive aesthetic | |
| Assembly requirement | Sofa and chair legs require attachment to pre-installed mounting plates on the upholstered body; coffee table frame requires attachment to pre-drilled tabletop | |
| Optional side table coordination | Matching wood-top metal-frame side tables align with armrest height for placement adjacent to single chairs to hold personal items and beverages | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel |
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源:外贸报价与装柜测算参考
| Total package count | 5 packages | |
|---|---|---|
| 3-seat sofa packed carton dimensions | 2250 x 920 x 650 mm | |
| Single armchair packed carton dimensions | 950 x 860 x 650 mm | |
| Coffee table packed carton dimensions | 1250 x 650 x 150 mm | |
| Total shipment gross weight | 195 kg | |
| Total shipment CBM | 2.7 m³ | |
| On-site assembly time | 60 minutes | |
| 40ft HQ container loading capacity | 36 sets | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set |
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源:依据产品结构与品类整理的推荐应用场景
| Corporate office reception areas | Coordinated 3+1+1 seating layout accommodates visiting clients and guests for short waiting periods before meetings, with central coffee table for refreshments and reading materials | |
|---|---|---|
| Executive office meeting waiting zones | Dark brown professional finish matches formal executive office decor, providing dedicated guest seating adjacent to private workspaces | |
| Small business lounge spaces | Durable commercial-grade construction withstands daily high-traffic use in shared waiting or break areas without rapid wear | |
| Hotel business center lobbies | Compact footprint and professional aesthetic fit small lobby seating groups for hotel guests waiting for appointments or transport | |
| Medical and professional service waiting rooms | Easy-to-clean non-porous upholstery supports regular sanitization for high-turnover public waiting environments | |
| Showroom and gallery visitor areas | Neutral contemporary design complements interior displays without competing with featured products | |
| Recommended complementary configuration | Pair with matching dark-framed side tables to extend surface space for larger reception groups, placed on low-pile commercial carpet for noise reduction | |
| Recommended Matching Desk Size | 2.4 m executive desk |
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| EN 13761:2009 | Furniture - Seating for public areas, applicable to structural strength and durability requirements for office reception seating | |
|---|---|---|
| EN 15372:2016 | Furniture - Strength, durability and safety requirements for non-domestic tables, applicable to the commercial grade coffee table | |
| EN 1022:2018 | Domestic furniture - Seating - Determination of stability, applicable to tip resistance of fixed upholstered armchairs and sofas | |
| EN 13336:2009 | Furniture - Upholstered furniture for non-domestic use - Safety requirements, applicable to structural integrity and upholstery performance for public seating |
北美市场采购验货参考 * ANSI/BIFMA 标准
美国及加拿大家具标准
| 北美市场选型与验收参考 | ANSI/BIFMA X5.4 公共及休闲座椅 |
|---|
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to structural safety and finish quality of the coffee table and internal sofa frame components | |
|---|---|---|
| GB 28007-2011 | Safety requirements for upholstered furniture for public use, applicable to structural stability, flame retardancy and edge safety of reception seating | |
| GB/T 16799-2008 | Specification for polyurethane coated artificial leather, applicable to quality standards for faux leather upholstery material | |
| GB 18584-2001 | Limit of harmful substances in wood furniture, applicable to formaldehyde emission limits for engineered wood components |
本产品须满足以下技术参数要求: 1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to structural safety and finish quality of the coffee table and internal sofa frame components; 2. GB 28007-2011:Safety requirements for upholstered furniture for public use, applicable to structural stability, flame retardancy and edge safety of reception seating; 3. GB/T 16799-2008:Specification for polyurethane coated artificial leather, applicable to quality standards for faux leather upholstery material; 4. GB 18584-2001:Limit of harmful substances in wood furniture, applicable to formaldehyde emission limits for engineered wood components; 最终交付参数、检测报告和验收标准以双方采购合同为准。
