Black Tempered Glass Office Reception Coffee Table with Side Drawers and Lower Shelf Specifications

OFC-CT-BG1307050

代码:XRF1RWV1
获取供应商报价
2026-09-06 14:23人气: 24
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

OFC-CT-BG1307050

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions1300 x 700 x 500 mm
Tabletop usable area1220 x 620 mm
Lower open shelf dimensions900 x 550 mm
Right-side drawer unit dimensions350 x 500 x 420 mm
Single drawer inner dimensions320 x 450 x 180 mm
Frame leg cross-section50 x 25 mm
Ground clearance under lower shelf120 mm
Glass edge chamfer width5 mm
Drawer front panel thickness18 mm
Top glass overhang past frame10 mm
Lower shelf height from floor220 mm
Frame foot pad diameter30 mm
Carcass Panel Thickness25 mm
Back Panel Thickness9 mm
Door / Drawer Front Thickness22 mm
Shelf Thickness25 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Tabletop static load capacity100 kg
Net product weight30 kg
Recommended user capacity5 people
Tempered glass heat resistance120 °C
Drawer slide cycle rating50000 open/close cycles
Frame corrosion resistance lifespan10 years
Shelf Distributed Load30 kg/shelf
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening Angle / Life165°; 80000 cycles
Anti-tip Fixing ReferenceProducts above 1200 mm should use at least 2 wall fixing points
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Tabletop panel10 mm thick black tempered safety glass
Lower open shelf8 mm thick black tempered glass
Support frameMirror polished 304 stainless steel tube, 1.0 mm wall thickness
Drawer unit carcass15 mm thick dark brown melamine-faced particleboard
Drawer fronts18 mm thick dark brown melamine-faced MDF with round chrome knobs
Drawer slidesCold-rolled steel ball-bearing full-extension slides
Foot padsNon-marking TPE rubber adjustable leveling pads
Glass edge treatmentMachine ground and chamfered polished edges
Hardware fastenersStainless steel screw and connector set
Edge banding1 mm thick PVC edge banding on drawer unit panels
Edge Band Thickness2 mm
Primary Connector SpecificationReference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Lower open shelf storageFixed open tier for water bottles, books and reception supplies
Right-side double drawer storageTwo vertically stacked pull-out drawers for concealed small item storage
Leveling adjustmentAdjustable foot pads compensate for 10 mm floor unevenness
Tea service compatibilityFlat heat-resistant top supports built-in tea tray and electric tea set
Fixed cantilever frameWelded stainless leg frame provides rigid support without flex
Surface cleaning functionSmooth non-porous glass and polished metal surfaces wipe clean with standard cleaners
Anti-tip anchoringPre-drilled holes for wall anchor connector to prevent tipping over
Knob handle operationRound chrome knobs provide 30 mm grip for easy drawer opening
Cable / Vent Opening ReferenceIf fitted, 80 mm diameter
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight100 kg/set in 3 cartons
Reference Packaging Volume0.65 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Executive office reception loungePositioned between 3-seater office sofa and armchairs for guest tea service
Corporate meeting room lounge areaUsed for casual guest waiting and light refreshment service during meetings
Business club waiting areaDurable easy-clean surfaces suitable for high-traffic public visitor spaces
Small office open loungeCompact storage holds tea supplies to keep service areas organized
Recommended seating configurationPaired with 1 three-seater office sofa and 2 single armchairs
Usage noteNot designed as a dining or work desk due to low reception height
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Glass furniture safety standardEN 12521:2015
Furniture stability standardEN 1730:2012
Surface durability standardEN 15185:2011
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Glass safety standardGB 15763.2
Furniture mechanical performance standardGB/T 3324
Furniture hardware standardGB/T 13668
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. Glass safety standard:GB 15763.2;
2. Furniture mechanical performance standard:GB/T 3324;
3. Furniture hardware standard:GB/T 13668;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · OFC-CT-BG1307050

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · OFC-CT-BG1307050

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · OFC-CT-BG1307050打开导出工具

页面快速操作

发布采购询价

产品描述

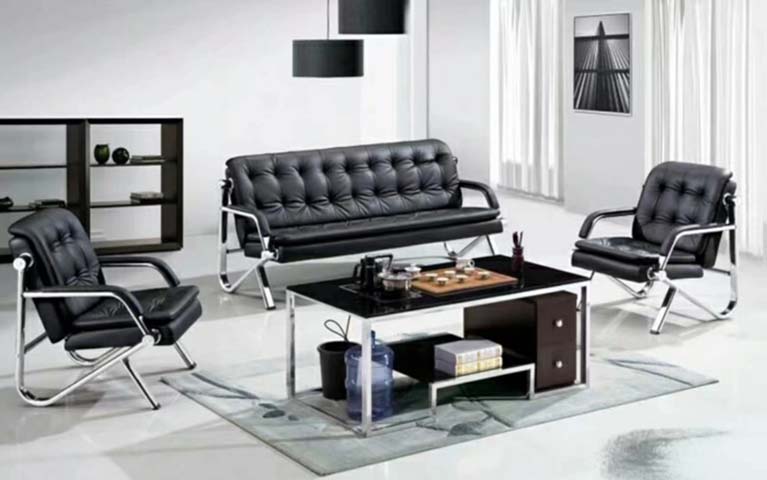

This low-profile reception coffee table delivers a streamlined modern aesthetic anchored in mixed metal-glass construction, suited to professional hospitality and lounge settings. Its form pairs a broad rectangular black glass top with a matching lower open glass shelf, offset by a dark brown wood-based drawer unit integrated along the right side, all supported by a slender mirror-polished chrome stainless steel frame that creates a light, open visual profile despite its substantial build. Machine-ground and chamfered polished glass edges soften the sleek material palette, while round chrome knobs on the drawer fronts add cohesive metallic detailing that aligns with the frame finish. The tabletop is formed from thick black tempered safety glass, sized to accommodate built-in tea trays and electric tea service with heat resistance suitable for hot serving ware. The matching lower tempered glass shelf provides fixed open storage for water bottles, reading materials, and reception supplies, while the right-side unit houses two vertically stacked full-extension drawers for concealed storage of small items; these drawers run on cold-rolled steel ball-bearing slides rated for long-term repeated use. The welded cantilever stainless steel frame delivers rigid, flex-free support, fitted with non-marking TPE rubber adjustable leveling pads that compensate for minor floor unevenness. Pre-drilled holes support anti-tip wall anchoring for added stability in high-traffic spaces, and all non-porous glass and polished metal surfaces wipe clean easily with standard cleaning products. This table is sized to serve up to five users, positioned ideally between a three-seater office sofa and two single armchairs in executive reception lounges, corporate meeting room break areas, business club waiting zones, or small office open lounge spaces. Its durable, easy-clean surfaces hold up to frequent public use, while integrated storage keeps tea service supplies and guest amenities organized without cluttering visible surfaces. It is not designed for use as a dining table or work desk due to its low reception height. Procurement teams should note the unit ships across multiple cartons, with a straightforward assembly process suitable for on-site setup. All required stainless steel fasteners are included, and the frame is engineered for long-term corrosion resistance to maintain its polished finish in regular use. When planning space layout, teams should account for the fixed right-side drawer placement to align with traffic flow and seating arrangements, and plan for wall anchor installation where required for public space safety compliance.
