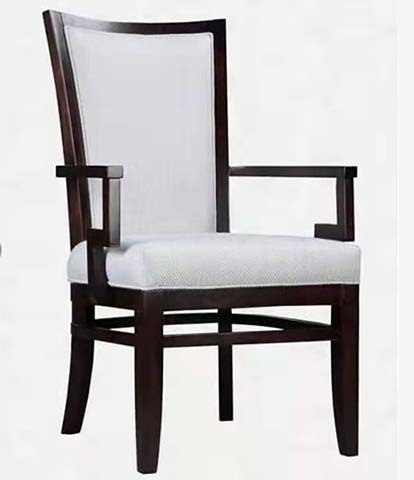

New Asian Style Dark Solid Wood Frame Off-White Upholstered Arm Dining Chair Specifications

DC-GK-062-DW-OFFW

代码:PA0D7SV1
获取供应商报价
2026-08-11 22:40人气: 64
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

DC-GK-062-DW-OFFW

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions620 x 750 x 1070 mm
Seat height460 mm
Seat width500 mm
Seat depth480 mm
Backrest height above seat610 mm
Armrest height above seat220 mm
Armrest width from seat edge70 mm
Front leg taper thickness45 mm
Clearance under seat apron170 mm
Seat cushion thickness80 mm
Backrest frame border width40 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net weight per chair12 kg
Recommended static load capacity120 kg
Seat foam density45 kg/m³
Seat foam rebound rate60%
Fabric abrasion resistance30000 Martindale cycles
Backrest static load tolerance75 kg
Leg joint static load rating6000 N
Warranty period for frame3 years
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Frame and leg materialDark walnut-stained solid beech wood
Seat cushion fillHigh-resilience polyurethane foam
Backrest panel fillMedium-density polyurethane foam
Seat and back upholsteryOff-white woven polyester-linen blend fabric
Frame surface finishEco-friendly matte nitrocellulose wood lacquer
Joinery constructionMortise-and-tenon joints with metal screw reinforcement
Apron cross bracingSame solid wood material as frame
Armrest constructionIntegrated solid wood with geometric meander cutout
Seat support base12mm thick plywood panel under foam
Upholstery seam pitch8 stitches per 30mm
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seating functionFixed upright non-reclining seating position for dining
Back support functionSlightly sloped tall backrest for lumbar and upper back support
Armrest support functionIntegrated rigid wood armrests providing stable elbow rest
Structural stability functionFour tapered legs with geometric cross-stretcher apron preventing frame racking
Floor protection functionNon-marking felt floor glides fitted to all leg bases
Upholstery maintenanceStain-resistant treated fabric allowing spot cleaning with mild detergent
Stacking capabilityNon-stacking fixed frame construction
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Residential dining roomSuitable as host/arm chair for formal dining sets with matching side chairs
Restaurant private dining roomsDurable construction and formal appearance suited for high-end Chinese restaurant banquet seating
Tea room and study spacesUpright comfortable seating for tea service, reading or casual meetings in residential or hospitality spaces
Hotel lobby lounge seatingCoordinated with dark wood hotel furniture schemes for guest seating areas
Reception and meeting spacesProfessional appearance for corporate reception areas requiring formal guest seating
Color matching recommendationPairs with dark walnut or ebony wood dining tables and neutral toned soft furnishings
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12520:2015Domestic and contract furniture seating strength/durability/requirements for dining chairs
EN 1021-1:2014Upholstered furniture ignitability test (smoldering cigarette) for fabric and foam
EN 12521:2015Mechanical safety requirements for non-domestic dining seating
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017General purpose office/contract seating tests, adapted for commercial dining chair load verification
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to solid wood frame structural integrity checks
GB/T 16799-2021Upholstered furniture safety requirements, applicable to foam and fabric safety compliance
GB 18584-2001Indoor decorating and refurbishing materials limit of harmful substances in wooden furniture, applicable to finish emission checks
GB/T 10357.3-2013Furniture mechanical performance test for chairs and stools, applicable to static load and durability testing
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to solid wood frame structural integrity checks;
2. GB/T 16799-2021:Upholstered furniture safety requirements, applicable to foam and fabric safety compliance;
3. GB 18584-2001:Indoor decorating and refurbishing materials limit of harmful substances in wooden furniture, applicable to finish emission checks;
4. GB/T 10357.3-2013:Furniture mechanical performance test for chairs and stools, applicable to static load and durability testing;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · DC-GK-062-DW-OFFW

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · DC-GK-062-DW-OFFW

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · DC-GK-062-DW-OFFW打开导出工具

页面快速操作

发布采购询价

产品描述

The New Asian Style Dark Solid Wood Frame Off-White Upholstered Arm Dining Chair, model DC-GK-06-DW-OFFW, is an unbranded public and residential seating solution balancing contemporary Asian aesthetic and robust functional design. Its visual identity balances dark-stained solid wood framing with soft off-white woven upholstery, anchored by integrated solid wood armrests featuring geometric meander cutouts and a geometric cross-braced apron that reinforces its structured, elegant silhouette. The fixed upright frame carries clean, tapered front legs, with the tall, slightly sloped backrest creating a formal yet approachable profile suited to coordinated interior schemes. The chair’s frame and legs are constructed from dark walnut-stained solid beech wood, finished with eco-friendly matte nitrocellulose wood lacquer, joined via mortise-and-tenon connections reinforced with metal screws for long-term stability. The seat rests on a 12mm thick plywood base, padded with 45kg/m³ high-resilience polyurethane foam delivering 60% rebound rate, while the backrest uses medium-density polyurethane foam for balanced support. Both seat and back are upholstered in stain-resistant off-white woven polyester-linen blend fabric rated for 30000 Martindale abrasion cycles, with non-marking felt glides fitted to all leg bases to protect hard flooring. The solid wood cross-braced apron prevents frame racking, and integrated armrests sit 220mm above the seat to offer stable elbow support. Designed for fixed, non-reclining dining posture, the chair holds a recommended static load capacity of 120kg, with a backrest static load tolerance of 75kg and leg joint static load rating of 6000N. The tall back delivers targeted lumbar and upper back support, while the stain-resistant fabric allows simple spot cleaning with mild detergent for low-effort upkeep. It has a net weight of 12kg per unit, with a 460mm seat height, 500mm seat width, 480mm seat depth, and 610mm backrest height above the seat, and does not support stacking. This chair fits a broad range of formal and semi-formal spaces: it serves as a host arm chair for residential dining sets paired with matching side chairs, high-end restaurant private dining room banquet seating, upright seating for tea rooms and residential or hospitality studies, guest seating for hotel lobbies coordinated with dark wood furniture schemes, and formal guest seating for corporate reception and meeting areas. It pairs seamlessly with dark walnut or ebony wood dining tables and neutral-toned soft furnishings. Procurement teams should note each chair ships across two cartons, with a 40-minute assembly time per unit, packaged gross weight of 23kg per set, total carton volume of 0.26m³, and a maximum 20GP container load of 135 sets at 85% space utilization to plan shipping and installation timelines accurately.
