基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源:工厂资料结构化字段,最终以实测值为准
| 产品外部尺寸(宽 × 深 × 高) | 2400 × 2400 × 760 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源:产品性能数据,采购前请核对具体测试口径
| Table static load capacity | 240 kg distributed | |
|---|---|---|
| Seating capacity | 10 persons | |
| Table unit net weight | 190 kg | |
| Daily service weight rating | 40 kg per place setting | |
| Lazy Susan rotation service life | 50000 rotations | |
| Chair frame durability target | 100000 cyclic seat-back loads | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ | |
| Upholstery Thickness / Abrasion Reference | 1.4 mm / 50000 cycles | |
| Five-star Base Static Load Reference | Acceptance target ≥120 kg; chair reference load 150 kg |
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源:以工厂材质清单与验货报告为准

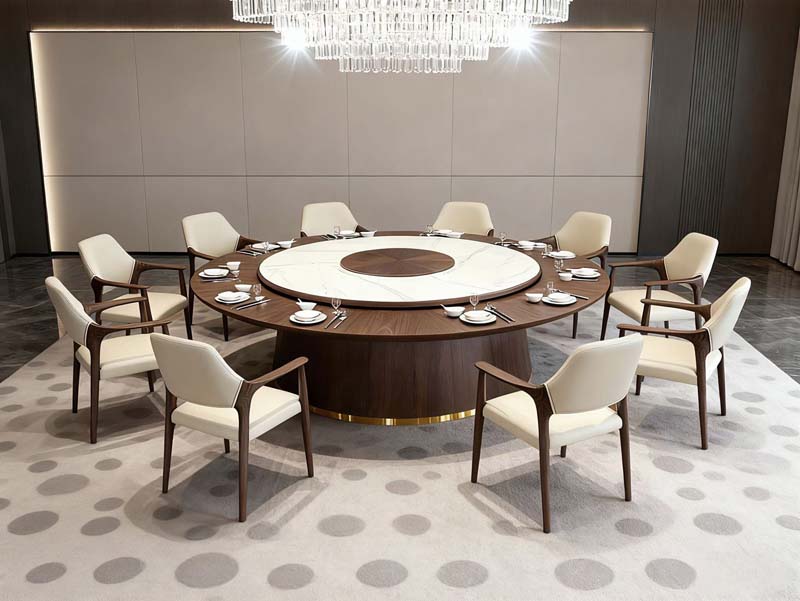

| Tabletop substrate and veneer | Walnut-toned wood veneer over engineered wood substrate with a 50 mm built-up edge | |
|---|---|---|
| Lazy Susan surface | White marble-look engineered stone or sintered stone surface with a dark wood center disc | |
| Pedestal base | Dark walnut-veneer cylindrical support with a tapered outer face | |
| Base accent | Gold-toned stainless steel decorative ring at the pedestal base | |
| Chair upholstery | Cream-white leather-look upholstery over padded seat and back panels | |
| Chair frame | Dark walnut-finish hardwood frame with sculpted arms and four tapered legs |
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源:功能配置参数,以供应商正式规格为准
| Rotating serving center | 1600 mm circular lazy Susan rotates 360 degrees around the table center for shared dish service | |
|---|---|---|
| Ten-person banquet seating | Ten armchairs surround the circular top with 754 mm place width per diner | |
| Fixed floor-standing support | Single cylindrical pedestal supports the tabletop without corner legs, reducing leg interference | |
| Chair pull-out access | Each chair pulls out 650 mm from the table edge for entry and exit |
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源:外贸报价与装柜测算参考
| Table carton size | 2500 x 2500 x 180 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源:依据产品结构与品类整理的推荐应用场景
| Private dining room | Suits upscale hotel, club or corporate VIP dining rooms where ten diners share banquet-style service | |
|---|---|---|
| Restaurant or reception lounge | Appropriate for executive hospitality, fine-dining private rooms and high-end residential dining areas |
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
本产品须满足以下技术参数要求: 1. 技术标准与检测报告由供应商在投标或采购确认阶段提供; 最终交付参数、检测报告和验收标准以双方采购合同为准。
