基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源:工厂资料结构化字段,最终以实测值为准
| 产品外部尺寸(宽 × 深 × 高) | 1800 × 1800 × 760 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源:产品性能数据,采购前请核对具体测试口径
| Recommended seating capacity | 8 persons | |
|---|---|---|
| Static tabletop load capacity | 120 kg | |
| Per-place setting load | 15 kg | |
| Pedestal base stability moment | 350 N lateral resistance at table edge | |
| Set net weight | 260 kg | |
| Seating spacing per person | 707 mm arc length | |
| Durability target | 50,000 seating-use cycles | |
| Warranty baseline | 3 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源:以工厂材质清单与验货报告为准

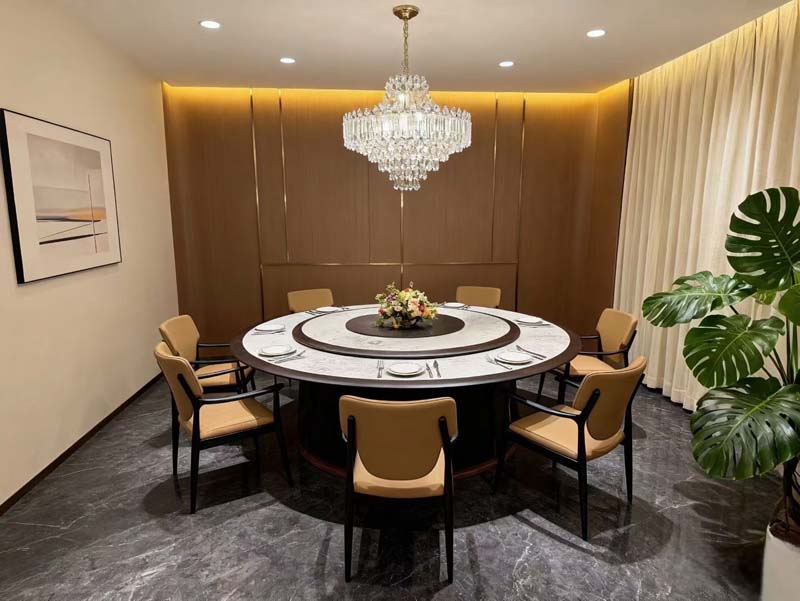

| Tabletop | Light stone-composite surface with dark laminated edge band and polished finish | |
|---|---|---|
| Lazy Susan | Matching light stone-composite rotating disc with dark raised rim and black center surface | |
| Pedestal base | Dark wood-veneer drum base with continuous curved panel and wider lower plinth | |
| Rotation hardware | Concealed metal swivel bearing under the lazy Susan | |
| Chair upholstery | Tan upholstered seat and back cushions with visible sewn edge panels | |
| Chair frame | Dark stained solid wood or wood-composite frame with four legs, arms and back posts |
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源:功能配置参数,以供应商正式规格为准
| Lazy Susan rotation | Central 900 mm disc rotates 360 degrees on a concealed bearing for shared dish service | |
|---|---|---|
| Eight-person service layout | Eight perimeter settings use a 450 mm serving rim and 707 mm arc length per guest | |
| Fixed pedestal support | Single enclosed drum base provides leg room around the full perimeter | |
| Center presentation zone | 600 mm dark center surface accommodates floral display or shared serving pieces |
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源:外贸报价与装柜测算参考
| Total gross weight | 330 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源:依据产品结构与品类整理的推荐应用场景
| Private dining room | Eight-seat round layout suits club lounges, hotel private rooms and corporate hospitality where shared dishes are served | |
|---|---|---|
| Formal reception dining | Tan armchairs and stone-look top support upscale guest meals, business receptions and executive banquet spaces |
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
本产品须满足以下技术参数要求: 1. 技术标准与检测报告由供应商在投标或采购确认阶段提供; 最终交付参数、检测报告和验收标准以双方采购合同为准。
