High-Back Breathable Mesh Ergonomic Office Chair with Adjustable Headrest and Lumbar Support Specifications

ERG-OF-740-BLK-MESH

代码:0N2Z56V1
获取供应商报价
2026-08-10 18:30人气: 38
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

ERG-OF-740-BLK-MESH

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

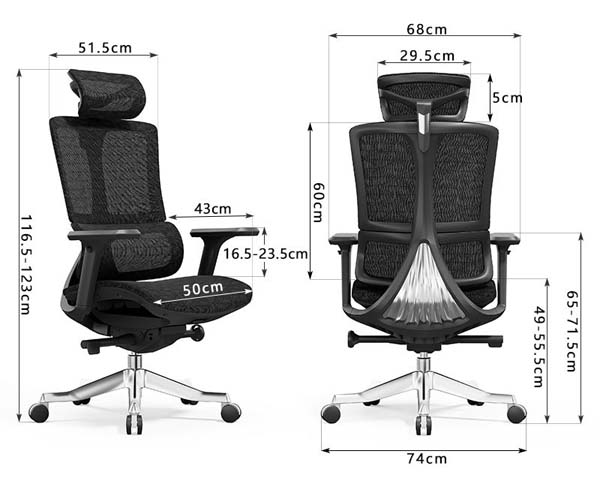

Overall assembled dimensions680 x 740 x 1230 mm
Seat depth500 mm
Maximum seat height from floor555 mm
Minimum seat height from floor490 mm
Backrest height from seat surface600 mm
Maximum backrest width680 mm
Headrest dimensions295 x 50 mm
Armrest height above seat surface (max)235 mm
Five-star base wheel-to-wheel diameter740 mm
Headrest maximum height from seat surface715 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Maximum user weight capacity150 kg
Net product weight23 kg
Seat foam density40 kg/m³
Backrest mesh abrasion resistance60000 double rubs
Caster rolling durability rating100000 cycles
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
Five-star Base Static Load ReferenceAcceptance target ≥120 kg; chair reference load 150 kg
Gas-lift Cycling ReferenceAcceptance target 100000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest upholsteryReinforced breathable woven polyester mesh
Seat cushion core40 density high-resilience molded polyurethane foam
Seat surface upholsteryBreathable mesh overlay over foam core
Five-star basePolished die-cast aluminum alloy, 2mm wall thickness
Armrest padsSoft polyurethane padded tops on rigid plastic support frames
Caster wheels50mm diameter polyurethane tread with nylon inner hubs
Gas lift cylinderClass 3 carbon steel, 65mm stroke, chrome plated finish
Recline mechanism3mm thick steel plate synchro-tilt chassis with tension control
Internal back frameGlass fiber reinforced nylon, 4mm rib thickness
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Tilt Mechanism Plate Thickness2.5 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Pneumatic seat height adjustment65mm vertical travel operated by side lever under seat
Backrest tilt function125° maximum recline angle with 4-position lockable positions
Tilt tension adjustmentRotating knob under seat to adjust recline resistance for user weight
Headrest adjustment45° tilt angle and 65mm vertical travel for neck support
360° swivel functionFull rotation around central gas lift axis for multi-directional access
Lumbar support zoneContoured adaptive mesh support that flexes with user movement
Smooth mobilityFive dual-wheel casters for movement across carpet and hard flooring
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Corporate open-plan workstationsSuitable for 8-hour daily desk work with ergonomic posture support
Home office and remote work spacesCompact footprint fits standard home desk setups without excess space
Executive private officesProfessional mesh finish and adjustable features suit management workspaces
Co-working and shared office spacesAdjustable features accommodate users of varying heights and weights
Conference and meeting roomsSwivel and tilt functionality supports collaborative meeting interaction
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Applies to dimensional and safety requirements for office work chairs
EN 1335-2:2018Applies to strength, durability and stability performance requirements
EN 1021-1:2014Applies to upholstery fire resistance for smoldering cigarette ignition
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Applies to general-purpose office chair safety and performance testing
Gas lift service cycle ratingRecommended references: BIFMA X5.1
Five-star base static load capacity1136 kg
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Applies to size measurement and dimension tolerances for office chairs
GB/T 35607-2017Applies to stability, strength and durability requirements for office chairs
GB 18584-2001Applies to formaldehyde and heavy metal emission limits for furniture materials
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Applies to size measurement and dimension tolerances for office chairs;
2. GB/T 35607-2017:Applies to stability, strength and durability requirements for office chairs;
3. GB 18584-2001:Applies to formaldehyde and heavy metal emission limits for furniture materials;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · ERG-OF-740-BLK-MESH

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · ERG-OF-740-BLK-MESH

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · ERG-OF-740-BLK-MESH打开导出工具

页面快速操作

发布采购询价

产品描述

This high-back breathable mesh ergonomic office chair, model ERG-OF-740-BLK-MESH, delivers balanced support and professional styling for a wide range of work environments. Unbranded for flexible integration across diverse interior schemes, the chair presents a sleek, streamlined silhouette defined by its contoured mesh back, structured padded armrests, and polished five-star base, with clean lines that complement both contemporary and traditional office decor. Assembled, the chair measures 680 x 740 x 1230 mm, with a high 600 mm backrest, 500 mm deep seat, and proportioned 295 x 50 mm headrest that creates a cohesive, upright profile without unnecessary bulk. The chair is built for long-term daily use, combining durable, performance-focused materials across every component. Its backrest uses reinforced breathable woven polyester mesh tested to 60,000 double rubs of abrasion resistance, stretched over a glass fiber reinforced nylon internal frame with 4mm rib thickness for consistent flex. The seat pairs a 40 density high-resilience molded polyurethane foam core with a breathable mesh overlay, supported by a 3mm thick steel plate synchro-tilt chassis. The polished die-cast aluminum alloy five-star base features 2mm wall thickness, fitted with 50mm diameter polyurethane tread casters with nylon inner hubs rated for 100,000 rolling cycles, a Class 3 chrome-plated carbon steel gas lift with 65mm stroke, and armrests with soft polyurethane padded tops on rigid plastic frames. The chair holds a maximum user weight capacity of 150 kg, with a net weight of 23 kg. Functionality is tailored for ergonomic comfort across extended use: pneumatic seat height adjustment offers 65mm of vertical travel controlled by a side lever under the seat, adjusting seat height between 490 mm and 555 mm from the floor, with armrests reaching a maximum 235 mm above the seat surface. The backrest reclines to a 125° maximum angle with four lockable positions, paired with an under-seat rotating knob to adjust tilt tension to match user weight. The headrest adjusts 45° in tilt and 65mm vertically for targeted neck support, while a contoured adaptive mesh lumbar zone flexes with natural user movement. Full 360° swivel and smooth-rolling dual-wheel casters allow easy movement across both carpet and hard flooring. This chair is suitable for corporate open-plan workstations, where it supports 8-hour daily desk work with consistent posture support, as well as home office and remote work spaces where its compact footprint fits standard desk setups without excess space. Its polished professional finish also suits executive private offices, particularly paired with a 2.4 m executive desk, while its broad adjustment range accommodates diverse user needs in co-working and shared office spaces; the swivel and tilt functions further support natural interaction in conference and meeting rooms. For procurement teams, note that each unit ships in two cartons, with a packaged gross weight of 23 kg and total carton volume of 0.26 m³, allowing 135 sets to fit a 20GP container at 85% space utilization. Assembly requires 40 minutes per set, making it a practical choice for both small-scale fit-outs and large-volume office deployments.
