Grey Mesh Ergonomic Office Chair with Adjustable Headrest and Coat Hanger Specifications

ERG-OFC-685GRY

代码:12YARXV1
获取供应商报价
2026-08-11 17:02人气: 61
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

ERG-OFC-685GRY

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

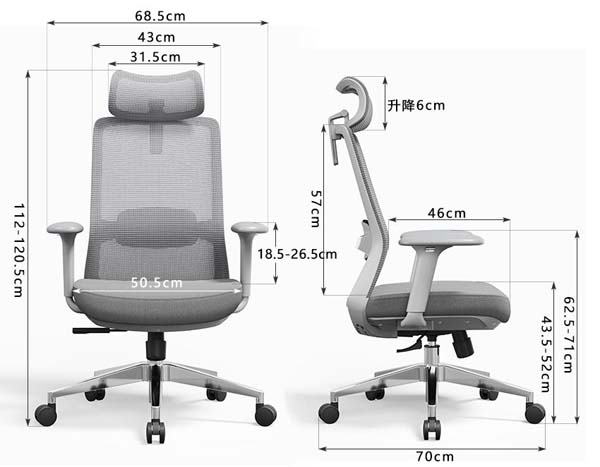

Overall dimensions (W×D×H)685 × 700 × 1205 mm
Seat width505 mm
Seat depth460 mm
Seat height range from floor520 mm
Backrest width430 mm
Backrest height from seat surface570 mm
Headrest width315 mm
Headrest height adjustment travel60 mm
Armrest height above seat surface265 mm
Five-star base footprint diameter700 mm
Armrest pad top height from floor (max)710 mm
Seat surface height from floor (lowest)435 mm
Headrest top height from seat (max)625 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Recommended maximum user weight150 kg
Net weight20 kg
Caster rolling durability100000 cycles
Gas lift lift cycle rating120000 cycles
Seat foam density45 kg/m³
Mesh abrasion resistance50000 Martindale cycles
Seam stitch pitch8 stitches per 30mm
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
Upholstery Thickness / Abrasion Reference1.4 mm / 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Backrest surfaceBreathable polyester PA mesh
Seat cushion coreMolded high-resilience polyurethane foam
Internal back frame3mm thick glass-fiber reinforced PA nylon
Five-star base1.8mm thick chrome-plated steel
Gas lift column50mm diameter Class 4 steel gas lift
Armrest padsSoft PU padded surface with PP support structure
Casters50mm diameter PU universal twin casters
Headrest padding20mm thick soft foam with mesh outer cover
Control mechanism chassis2.5mm thick stamped steel plate
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Tilt Mechanism Plate Thickness2.5 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat height adjustment100mm vertical travel via gas lift lever under seat
Headrest adjustment60mm vertical lift to match neck height
Armrest adjustment80mm vertical height adjustment to match desk height
Back recline function135° lockable synchro-tilt with tension control
360° swivel rotationFull rotating seat and back via central swivel joint
Integrated rear coat hangerCurved hook at top of back frame for hanging outerwear
S-curve lumbar supportContoured fixed lumbar zone for lower back alignment
Smooth caster mobilityFree rolling on all hard and soft office floor surfaces
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Packed carton dimensions750 × 650 × 500 mm
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan office workstationsFits standard 750mm height office desks for daily seated work
Home office computer desksAdjustable height and armrests suit long hours of remote work
Meeting room seatingSwivel and recline functions support collaborative discussion use
Staff task seatingBreathable mesh back maintains comfort during full-shift use
Hot-desking shared workspacesUniversal adjustment fits a wide range of user body sizes
Executive private officesGrey neutral finish and coat hanger add functional utility
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1335-1:2020Applies to office chair dimensional safety and ergonomic requirements
EN 1335-2:2018Applies to office chair structural strength and stability performance
EN 1335-3:2009Applies to office chair test methods for safety verification
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017Applies to general-purpose office chair safety and performance criteria
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Applies to office chair dimensional accuracy and stability testing
GB/T 10357.3-2013Applies to chair strength and durability mechanical performance testing
GB 18584-2001Applies to furniture harmful substance emission limits for indoor use
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Applies to office chair dimensional accuracy and stability testing;
2. GB/T 10357.3-2013:Applies to chair strength and durability mechanical performance testing;
3. GB 18584-2001:Applies to furniture harmful substance emission limits for indoor use;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · ERG-OFC-685GRY

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · ERG-OFC-685GRY

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · ERG-OFC-685GRY打开导出工具

页面快速操作

发布采购询价

产品描述

The Grey Mesh Ergonomic Office Chair, model ERG-OFC-685GRY, is an unbranded ergonomic seating solution designed for versatile professional and residential work environments. Its neutral grey finish and streamlined, purpose-driven form present a polished, understated aesthetic that integrates seamlessly with a wide range of interior design schemes. The chair features a contoured S-curve backrest, padded height-adjustable headrest, and a discreet integrated curved coat hanger positioned at the top of the back frame, balancing subtle visual appeal with built-in utility without unnecessary decorative flourishes. Constructed for long-term regular use, the chair pairs a breathable polyester PA mesh backrest with a molded high-resilience polyurethane foam seat, supported by a glass-fiber reinforced PA nylon internal back frame and 2.5mm thick stamped steel control chassis. The five-star base is crafted from 1.8mm thick chrome-plated steel, fitted with 50mm diameter PU universal twin casters for smooth movement across floor surfaces. A 50mm diameter Class 4 steel gas lift supports height adjustments, while armrests feature soft PU padding over a PP support structure, and the headrest is finished with 20mm thick soft foam wrapped in matching mesh outer material. All core components are engineered to meet consistent use demands, with performance ratings aligned to extended daily seating cycles. Practical functionality is centered on adaptable ergonomic support for varied users and tasks. The seat offers 100mm of vertical height adjustment via an under-seat lever, the headrest adjusts 60mm vertically to align with different neck heights, and armrests move 80mm vertically to match standard desk heights. The backrest supports 135° lockable synchro-tilt with adjustable tension control, alongside full 360° swivel rotation for easy reach across work surfaces. A fixed contoured lumbar zone maintains lower back alignment, while the breathable mesh back prevents heat buildup during extended seated periods, and the integrated rear coat hanger offers convenient storage for outerwear within easy reach. This chair is suitable for a broad range of spaces, including open-plan office workstations paired with standard 750mm height desks, home office computer desks for remote work, meeting rooms for collaborative discussion, staff task seating for full-shift use, shared hot-desking environments that serve diverse user groups, and executive private offices where the neutral finish and added coat hanger utility provide refined functional value. For procurement planning, each unit ships across two cartons, with a total packaged gross weight of 23kg per set, and requires 40 minutes of assembly time per unit. The chair supports a maximum recommended user weight of 150kg, and its universal adjustment range accommodates a wide spectrum of body types, making it a flexible choice for spaces serving multiple rotating or permanent users. The neutral grey colorway coordinates with most existing office furniture palettes, reducing the need for coordinated decor overhauls when updating seating inventories.
